10 Image Vault
®
PRO Command

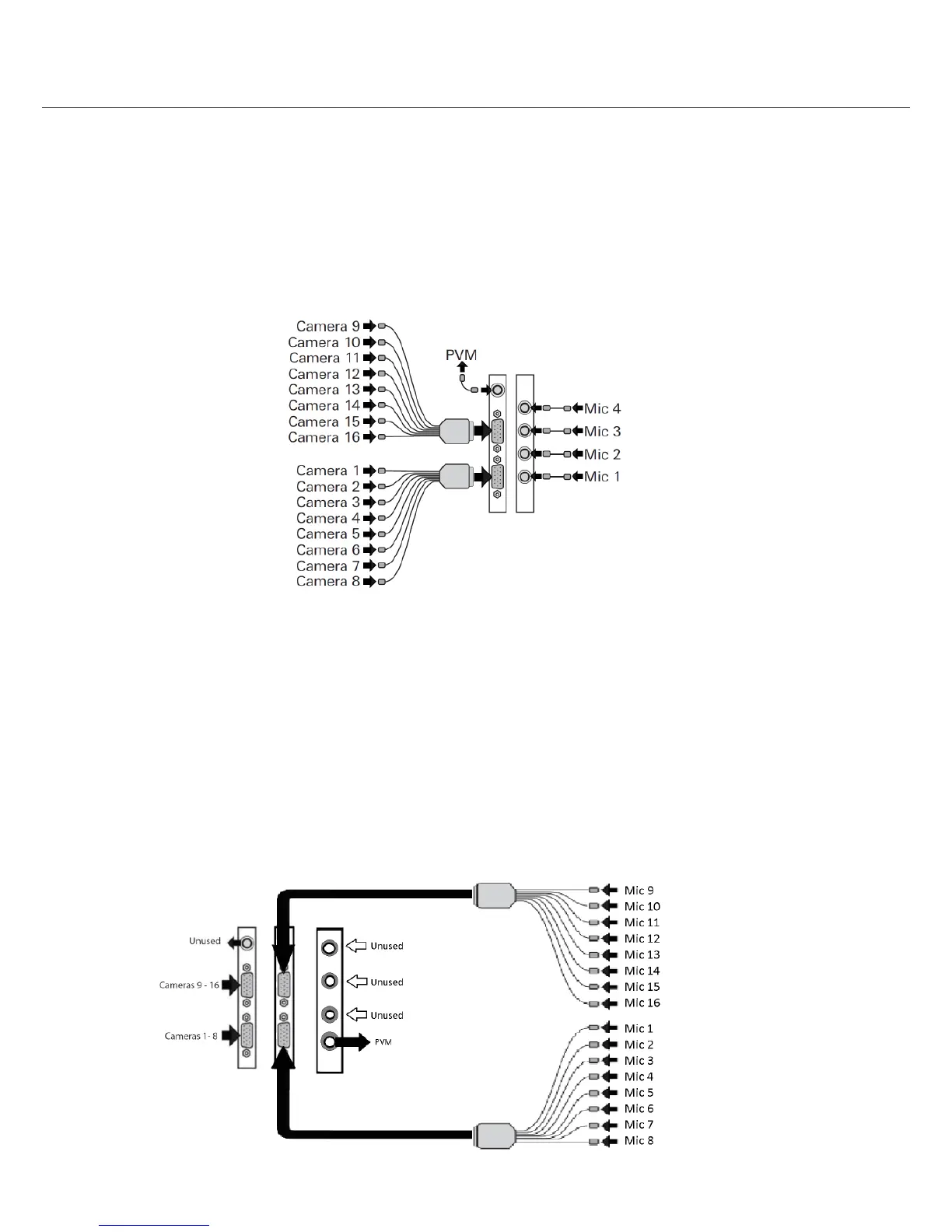

3.5 16 Camera/120 FPS Model: Video & Audio Capture, Monitor Output
Video In: Connect up to 16 NTSC video cameras to the BNC connectors on the video input breakout cables. The camera input break-
out cables are connected to the DB15 ports to the left. The top-left connector inputs are for cameras 1 to 8. The bottom-left connector
inputs are for cameras 9 to 16.
Audio In: Connect one line level audio microphone source to each RCA connector on the common expansion slot. Audio inputs are
numbered 1 to 4 from bottom to top. Mic 1 is associated with cameras 1 to 4; Mic 2 is associated with cameras 5 to 8; Mic 3 is
associated with cameras 9 to 12; Mic 4 is associated with cameras 13 to 16.
Video Out: Connect your Public View Monitor (PVM) to the RCA connector located just above the camera input connectors. The PVM
will cycle all cameras.
3.6 16 Camera/480 FPS Model: Video & Audio Capture, Monitor Output
Video In: Connect up to 16 NTSC video cameras to the BNC connectors on the video input breakout cables. The camera input break-
out cables are connected to the DB15 ports to the left. The top-left connector inputs are for cameras 1 to 8. The bottom-left connector
inputs are for cameras 9 to 16.
Audio In: Connect up to 16 line level audio microphones to the RCA connectors on the microphone breakout cables. Connect these
breakout cables to the DB15 ports to the right. The bottom-right connector inputs are for Mic 1 to Mic 8. The top-right connector
inputs are for Mic 9 to Mic 16. Each microphone input is associated with its corresponding camera input.
Video Out: One Public View Monitor (PVM) output is provided. The bottom BNC output will provide one cycling output that will cycle
through all inputs.
