6 Image Vault
®
PRO Command
2 FACILITIES
Image Vault PRO Command models all use the same chassis and o er the same hardware features. This section provides detailed
information about each hardware component. From time to time Image Vault may modify the chassis slightly. Regardless of such
changes, all major components described in this section will be present, though may be in a di erent position than indicated in these
illustrations. The PRO Command chassis features built-in rack ears for rack mounting. Holes are provided on 1.75” centers for standard
rack installation. The chassis occupies 4U (standard rack unit spaces). The aluminum rack handles make it easily to lift and position the
chassis as desired for handling and installation.

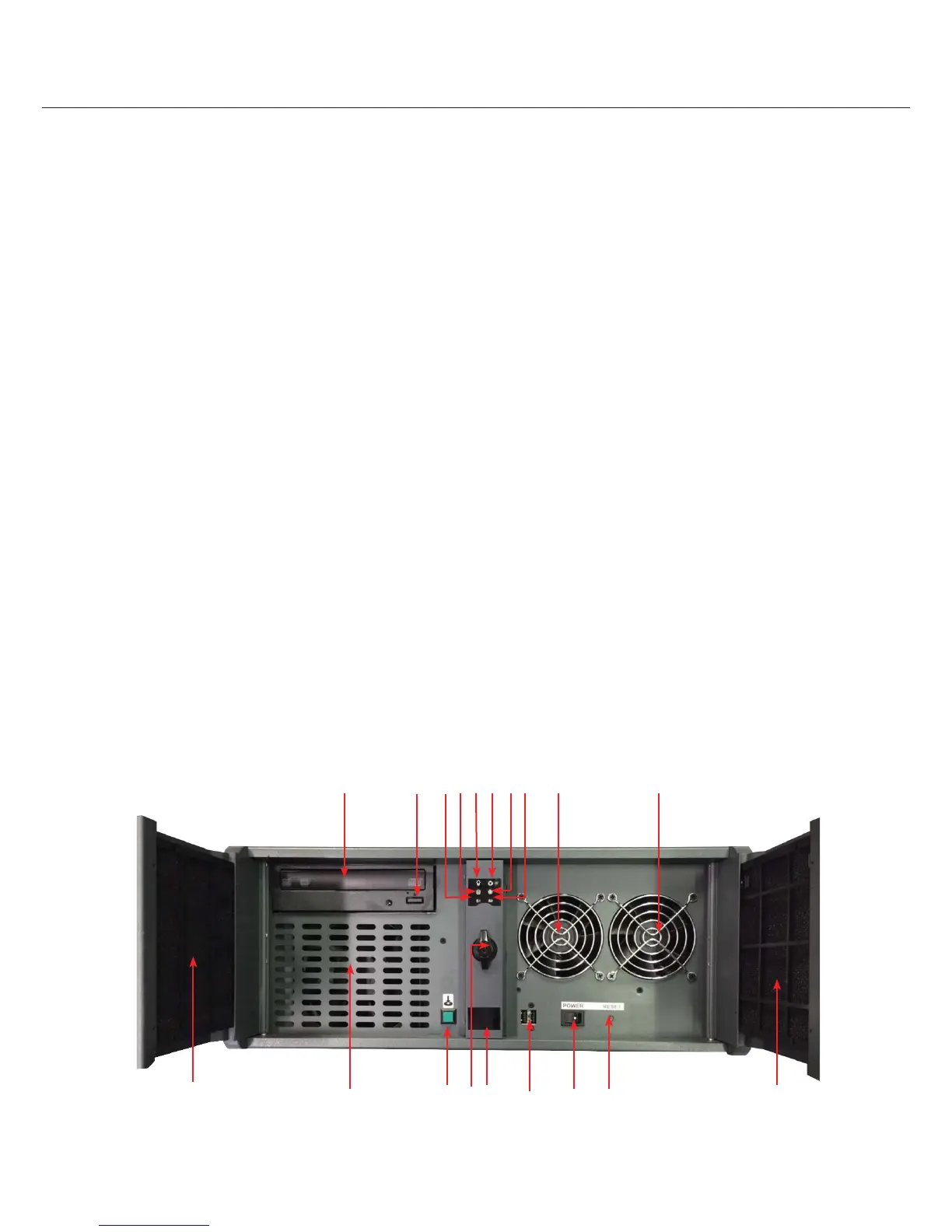

2.1 Front Panel
A The front panel air vent lter, easily removed for cleaning.
B Chassis Fan.
C Video Download button. Press after an event, such as a robbery, to start immediate copying of most recent video images to CD-R,
DVD-R disk or USB.
D Door latch. May be locked with provided key.
E Cover Plate
F USB Interface. The USB ports may be used with removable devices or external hard drives to copy video from the DVR or load updates
G Power Switch. Rocker switch turns the DVR on or o .
H Reset Switch. The red recessed push button reset switch causes the DVR to automatically reboot.
I CD/DVD-R Drive. The CD/DVD-R Drive is used to copy video images or con guration settings to disk or to load software updates or
con guration settings.
J CD/DVD Eject Button. Press to eject or close the CD/DVD tray.
K Extra light, follows the On- O Indicator light.
L Camera Recording Indicator. Tells you that the unit is currently writing video images to its hard drive.
M On-O Indicator. Tells you the unit has power and is turned on.
N Not Used.
O Fan indicator light. On=Normal operation. Blinking=Fan failure
P Extra light, follows the On- O Indicator light.
A
I
B
J
CD
E
F
G
HA
KLMNOP B B
