imc C-SERIES - Manual, Version 4 R 3 - 2018-10-19

37Measurement types

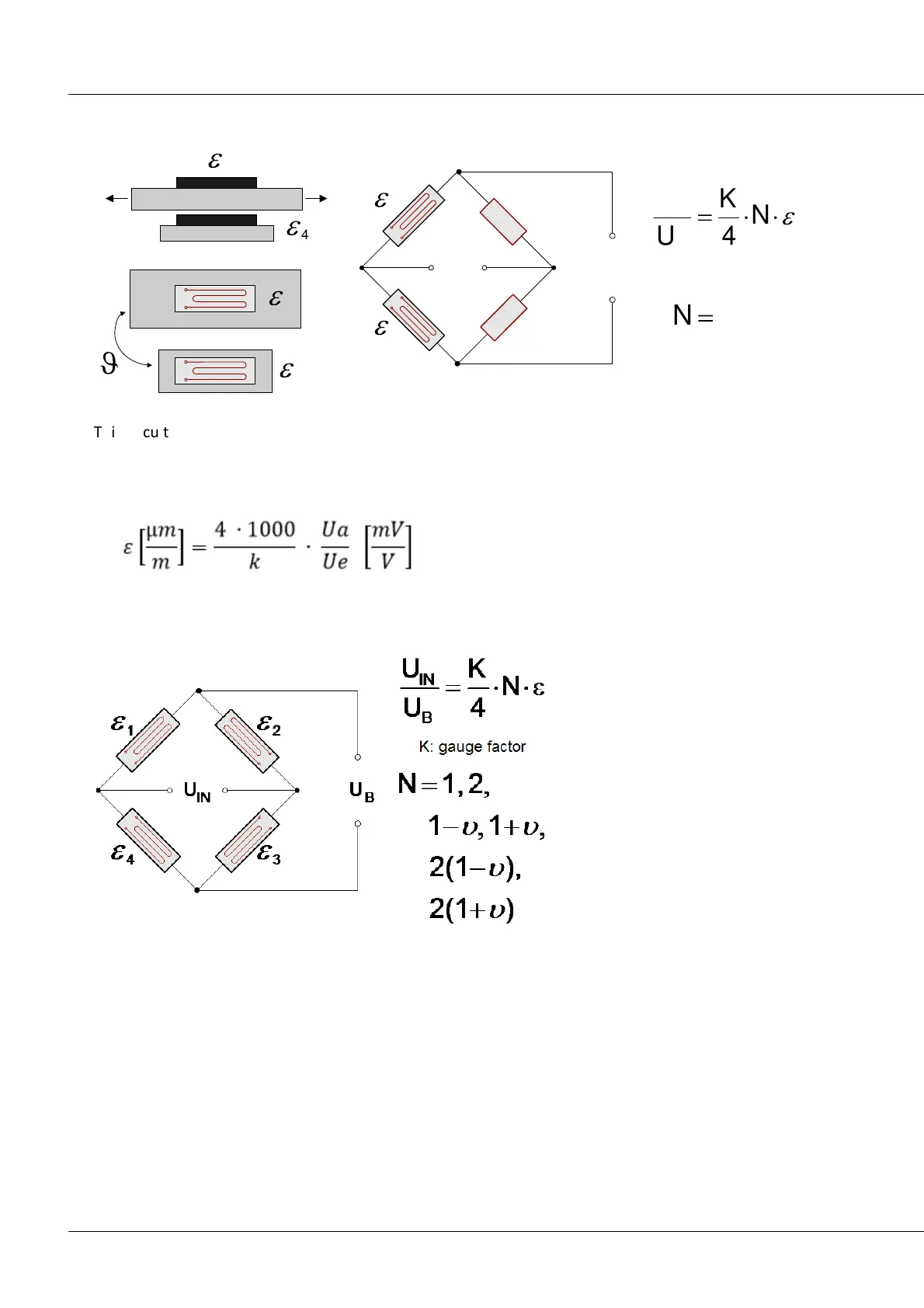

4.6.2.2.5 Half bridges with one active and one passive strain gauge













This circuit involves WSGs. The first one is positioned on the test object, the second on a sample of the

same material under the same ambient temperature and serves the purpose of temperature

compensation. The strain is computed as:

k: gauge factor

4.6.2.2.6 General Full bridge

General full bridge. N has to be set from a list.
