50 Properties of the imc C-SERIES

This can be entered directly via the scaling:

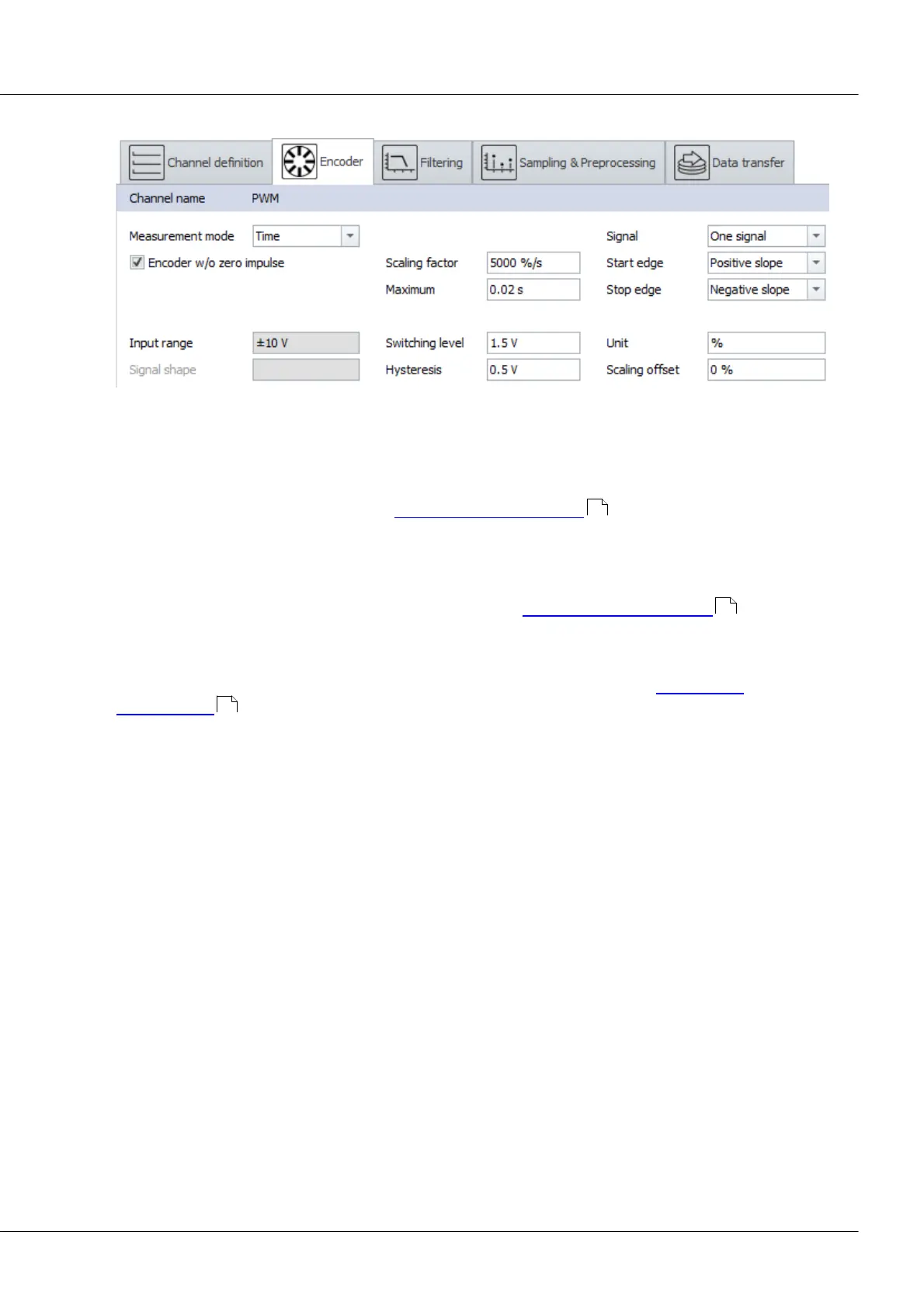

Settings for PWM measurement in time mode

4.6.3.4 Mode (combined measurement)

Frequency

Frequency is determined by means of a combination measurement . If the frequency was

previously multiplied or divided, this can be reflected in the scaling value. The frequency is always

unsigned, for which reason there is no two-signal encoder for it.

Speed

The sequence of pulses is converted to m/s by means of a combination measurement . Toward this

end, the number of pulses per meter must be entered.

RPM

The sequence of pulses is converted to revolutions per minute by means of a combination

measurement . Toward this end, the number of pulses per revolution must be entered.
