86 Device description
5.2.8 Operation without PC
To operate your imc measurement device , you don’t necessarily need a PC. Your device will start the
measurement independently, if an autostart has been prepared. Using the display, you can use its
keyboard to control the measurement. The display serves as a comfortable status indicator device and
can replace or complement the imc operating software when it comes to controlling the measurement. It
can even be used where no PC can go.
The Display can be connected or disconnected at any time without affecting a running measurement.
This makes it possible, to check the status of multiple devices running simultaneously one at a time.

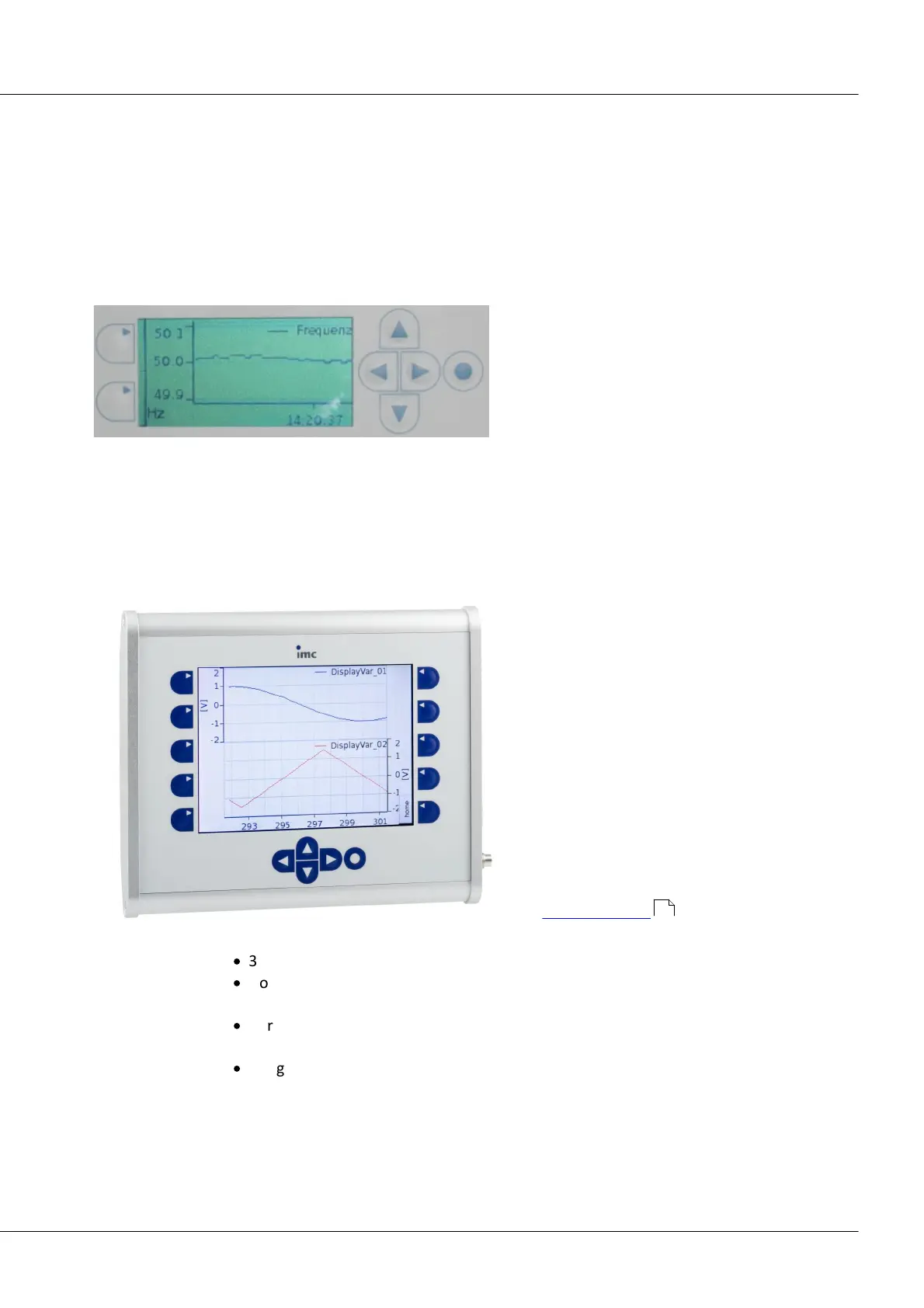

integrated display, only with CL and PL devices
imc CL-xx devices and PL devices are
equipped with an integrated display.
The Display’s interaction with the
measurement device is handled by means of
virtual Display variables or bits, which can
either be evaluated for the purpose of status
indication or set in order to affect the
measurement process.
Detailed descriptions of the functions are presented in the chapter Display of the imc software manual.
5.2.8.1 Graphical display
The optional display screen enables
interaction between the user and a
running measurement process by
posting read-outs of system states and
allowing parameter adjustments via the
membrane touch panel.
If the measurement device is prepared
for opening a particular configuration
upon being activated, it’s possible to
carry out the measurement without any
PC. The Display serves as a convenient
status indicator.
Technical Specs
·
320 x 240 pixels in 65536 colors
·
Housing dimensions approx. 306 x 170 x 25 mm; Readout screen size: approx. 11.5
cm x 8.6 cm
·
Bore diameter for Display fixing: diameter core hole 5.11 mm;
diameter exterior 6.35 mm (1/4" - 20 UNC)
·
Weight: approx. 1 kg
