IMC C SERIES User Manual

© 2018 imc Test & Measurement GmbH
imc C-SERIES - Manual, Version 4 R 3 - 2018-10-19
99CS-4108-FD, CL-4124-FD

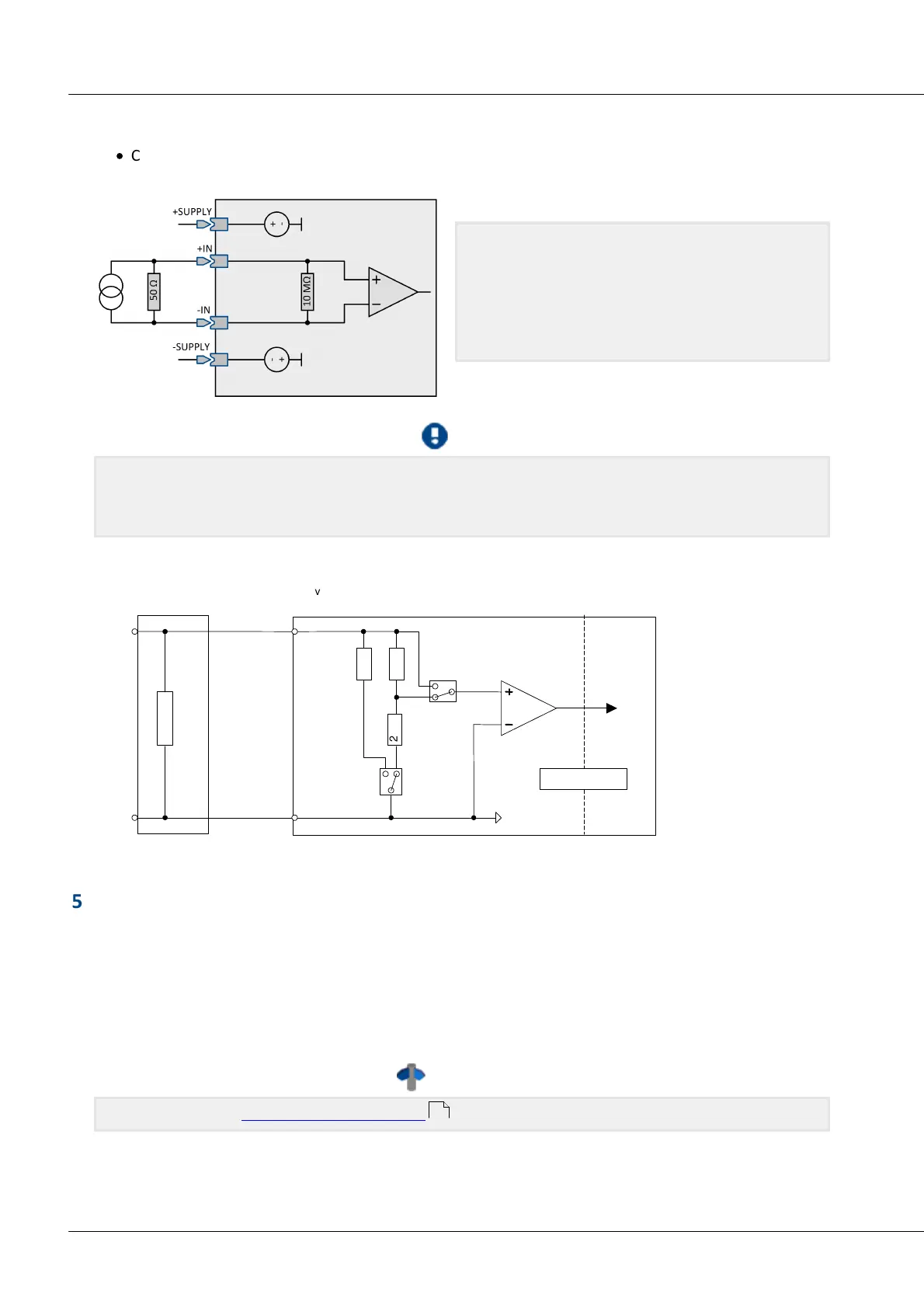

5.6.4 Current measurement
· Current: ±40 mA, ±20 mA, ±10 mA ... ±1 mA in 6 ranges
A special plug (ACC/DSUBM-I4) with a built-in shunt (50 Ω) is needed for current measurement.
For current measurement with the special shunt-
plugs ACC/DSUBM-I4, inputs ranging only up to
max. ±50 mA (corresponding to 2 V or 2.5 V voltage
ranges) are permitted due to the measurement
shunt's limited power dissipation in the case of
static long-term loading.
Note
Since this procedure is a voltage measurement at the shunt resistor, voltage measurement must also
be set in the imc Software.
The scaling factor is entered as 1/R and the unit as A (e.g. 0.02 A/V = 1/50 Ω).
Input stage block schematic
1MΩ
20kΩ
+IN
-IN
Isolation
current
measurement
rom-
voltage
measuremen
t
+IN
-IN
50 Ω
ACC/DSUB_I4
isolated voltage channel -
10 kHz
10MΩ
5.6.5 Bandwidth
The channels' max. sampling rate is 100 kHz (10 µs). The analog bandwidth (without digital low-pass
filtering) is 11 kHz (-3 dB).
5.6.6 Connection
For signal connections, DSUB-15 connectors can be used.
Reference
Please find here the DSUB-15 pin configuration .
170
