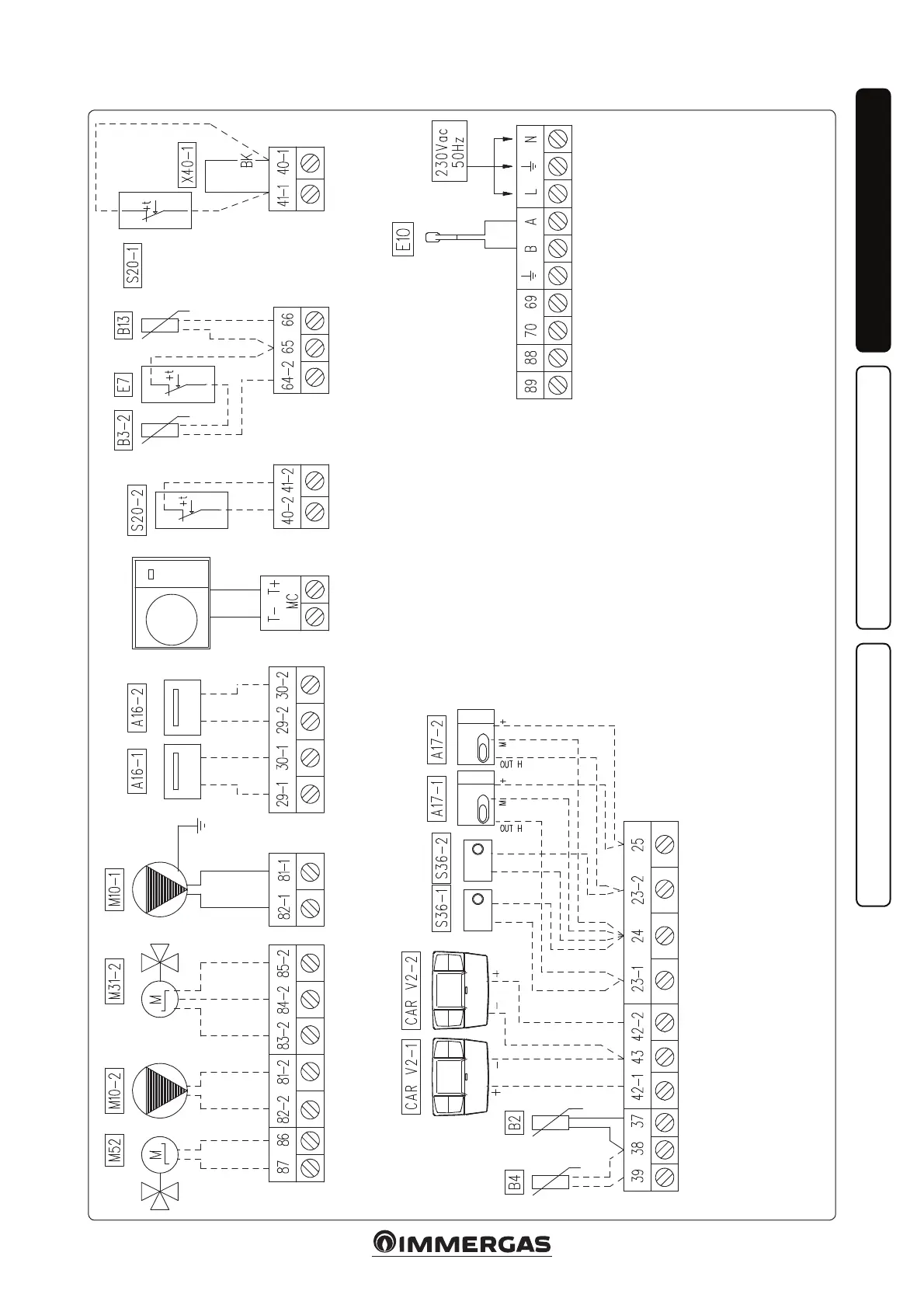

Magis Pro Connection.
Key:
A16-1 - Zone 1 dehumidier (optional)
A16-2 - Zone 2 dehumidier (optional)
A17-1 - Zone 1 humidity sensor (optional)
A17-2 - Zone 2 humidity sensor (optional)
B2 -
Storage tank probe
B3-2 - Zone 2 ow probe (optional)
B4 - External probe (optional)
B13 - Central heating probe (optional)
CAR V2-1 - Zone 1 V2 Comando Amico Remoto remote control (optional)
CAR V2-2 - Zone 2 V2 Comando Amico Remoto remote control (optional)
E7 - Safety thermostat (low temperature) (optional)
E10 - Anti-freeze resistance (heating cable)
M10-1 - Zone 1 circulator pump
M10-2 - Zone 2 circulator pump (optional)
M31-2 - Zone 2 mixing valve (optional)
M52 - Hot cold three-way (optional)
S20-1 - Zone 1 room thermostat (optional)
S20-2 - Zone 2 room thermostat (optional)
S36-1 - Zone 1 humidistat (optional)
S36-2 - Zone 2 humidistat (optional)
X40-1 - Zone 1 room thermostat jumper
