Immergas SUPER TRIO - Page 26

26
INSTALLERUSER
MAINTENANCE TECHNICIAN
31

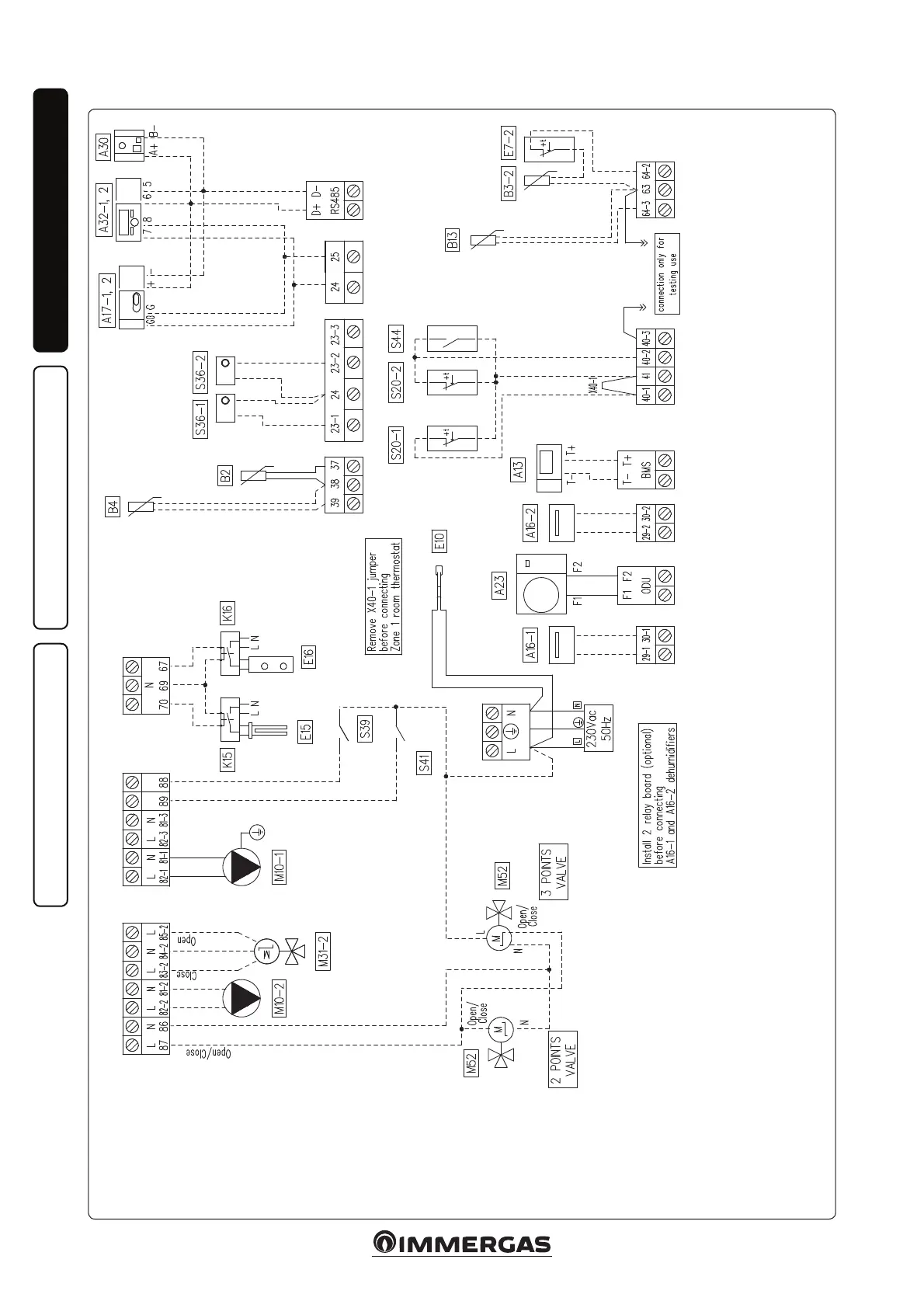

Magis Pro V2 Connection.
Key: A13 - System Manager (optional) A16-1 - Zone 1 Dehumidier (optional) A16-2 - Zone 2 Dehumidier (optional) A17-1 - Zone 1 Humidity sensor (optional) A17-2 - Zone 2 Humidity sensor (optional) A23 - Outdoor unit A30 - Dominus (optional) A32-1 - Zone 1 Remote Panel (optional) A32-2 - Zone 2 Remote Panel (optional) B2 - Storage tank probe B3-2 - Zone 2 probe (optional) B4 - External probe (optional) B13 - Puer probe (optional)
E7-2 - Zone 2 Low Temperature safety thermostat (optional) E10 - Antifreeze resistor (heating cable) E15 - DHW electrical heater (optional) E16 - Plant electrical heater (optional) K15 - DHW electrical heater relay (optional) K16 - Plant electrical heater realy (optional) M10-1 - Zone 1 pump M10-2 - Zone 2 pump (optional) M31-2 - Zone 2 mixing valve (optional)
M52 - ree-way valve hot cold (optional) S20-1 - Zone 1 Room thermostat (optional) S20-2 - Zone 2 Room thermostat (optional) S36-1 - Zone 1 Hygrostat (optional) S36-2 - Zone 2 Hygrostat (optional) S39 - Photovoltaic active input S41 - Audax Pro V2 disabling contact S44 - Heat/Cool selector X40-1 - Zone 1 Room thermostat jumper
