Immergas SUPER TRIO - Page 27

27
INSTALLERUSER
MAINTENANCE TECHNICIAN
32

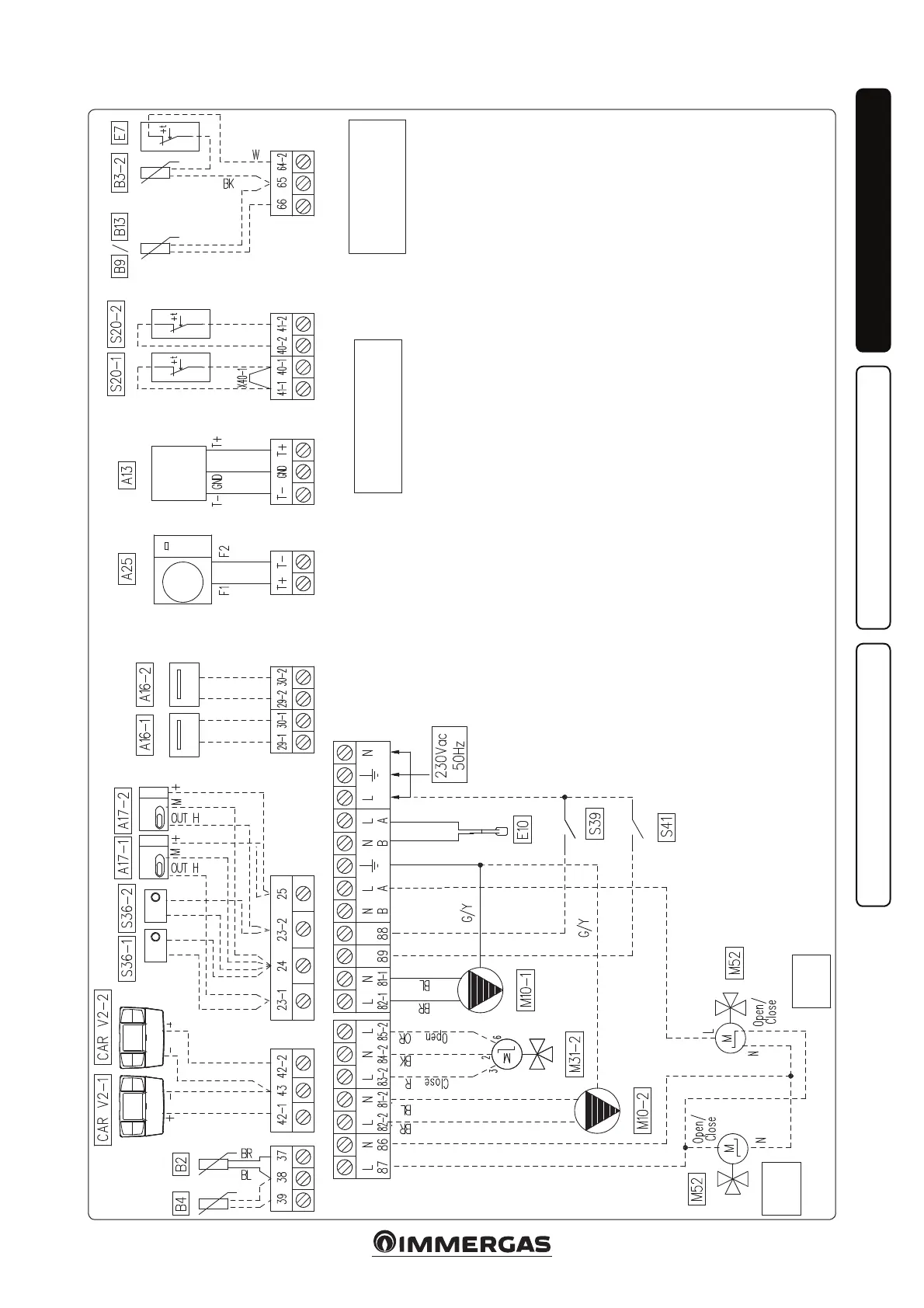

Magis Combo Plus Connection.
Remove jumper X40-1 before the electrical connection of the room thermostat zone 1
With the possible electrical connection of the CAR V2-1 keep the bridge X40-1
3-point
valve
2-point
valve
Colour code key: BK - Black BL - Blue BR - Brown G - Green GY - Grey G/Y - Green/Yellow OR - Orange P - Violet PK - Pink R - Red W - White
Key: A13 - System Manager (optional) A16-1 - Zone 1 Dehumidifer (optional) A16-2 - Zone 2 Dehumidifer (optional) A17-1 - Zone 1 Humidity sensor (optional) A17-2 - Zone 2 Humidity sensor (optional) A25 - Audax Pro B2 - Storage tank probe B3-2 - Zone 2 probe (optional) B4 - External probe (optional) B9 - DHW inlet NTC probe (optional) B13 - Puer probe (optional) CAR V2-1 - Zone 1 Comando amico remoto V2
remote control (optional)
CAR V2-2 - Zone 2 Comando amico remoto V2
remote control (optional)
E7 - Low temperature safety thermostat
(optional)
E10 - Antifreeze resistor (heating cable) M10-1 - Zone 1 pump M10-2 - Zone 2 pump (optional) M31-2 - Zone 2 mixing valve (optional) M52 - ree-way valve hot cold (optional) S20-1 - Zone 1 Room thermostat
(optional)
S20-2 - Zone 2 Room thermostat
(optional)
S36-1 - Zome 1 Hygrostat (optional) S36-2 - Zone 2 Hygrostat (optional) S39 - Photovoltaic active input S41 - Audax Pro disabling contact X40-1 - Zone 1 Room thermostat jumper
