Start-up
22
5
IMT Analytics AG

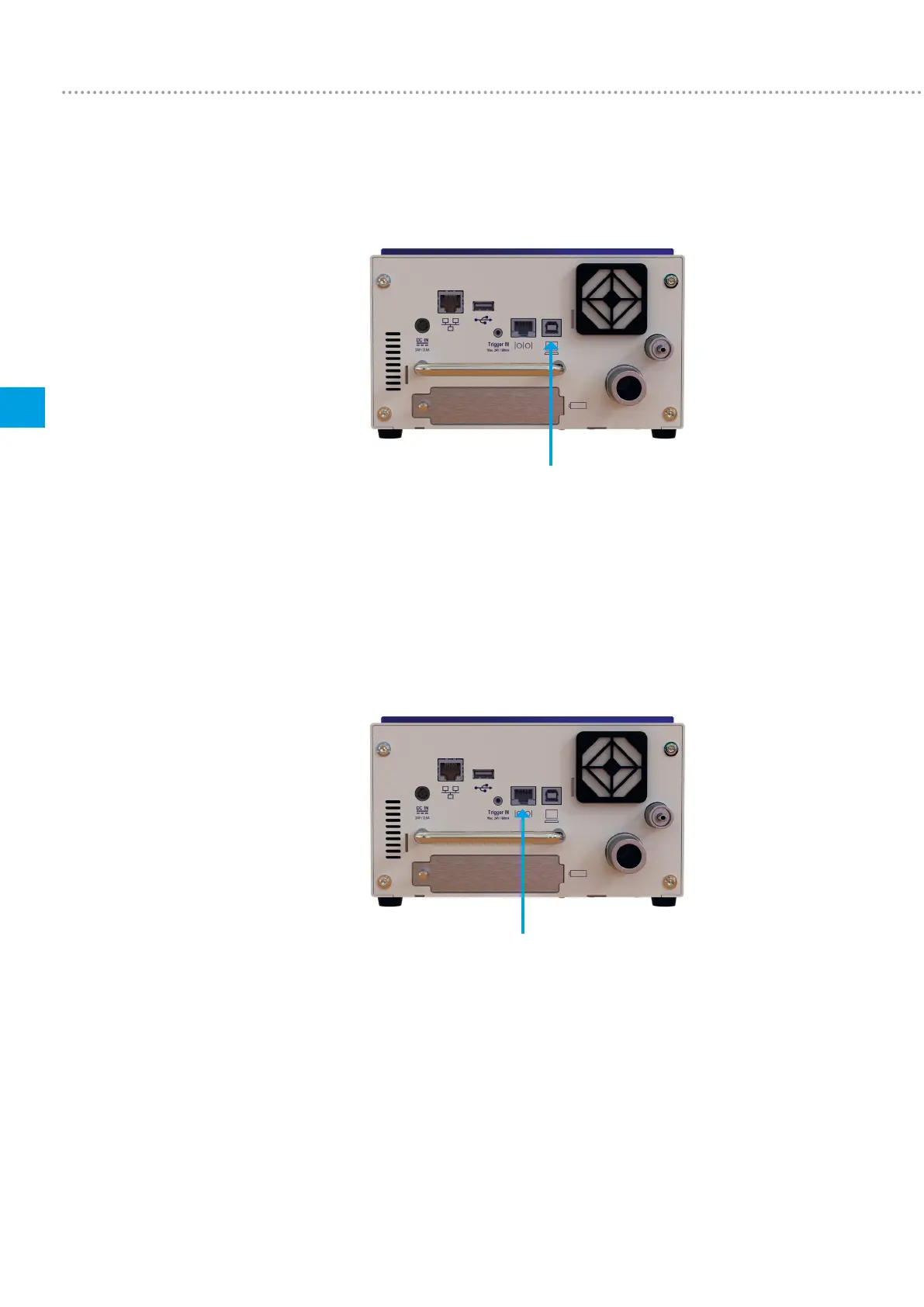

5.4.1 USB to Computer
The USB port is used for connecting FlowAnalyser PRO to a PC. The port is located
at the back of the device.
Rating: 5 V (+/- 0.25 V), max 0.5 A
Use only a certified power supply for the computer/notebook which bears a CE,
CSA, UL or other equivalent safety mark to ensure double insulation.
5.4.2 RS-232
The RS-232 interface is used for remote monitoring or control and for connecting
to a MultiGasAnalyser OR-703.
Actuation of the RS-232 port takes place via a special RS-232 cable.
If the device is to be actuated via the RS-232 interface, various data protocols are
available.
FlowAnalyser PRO pin assignment (RJ-45 connector):
Pin 1 +5 V (+/- 0.2 V), max 0.5 A
Pins 4, 5 GND
Pin 7 TxD
Pin 8 RxD
Pins 2, 3, 6 No connection
5.4 Electrical interfaces
