IMT 5005i / 6006i - Manual # 99904387

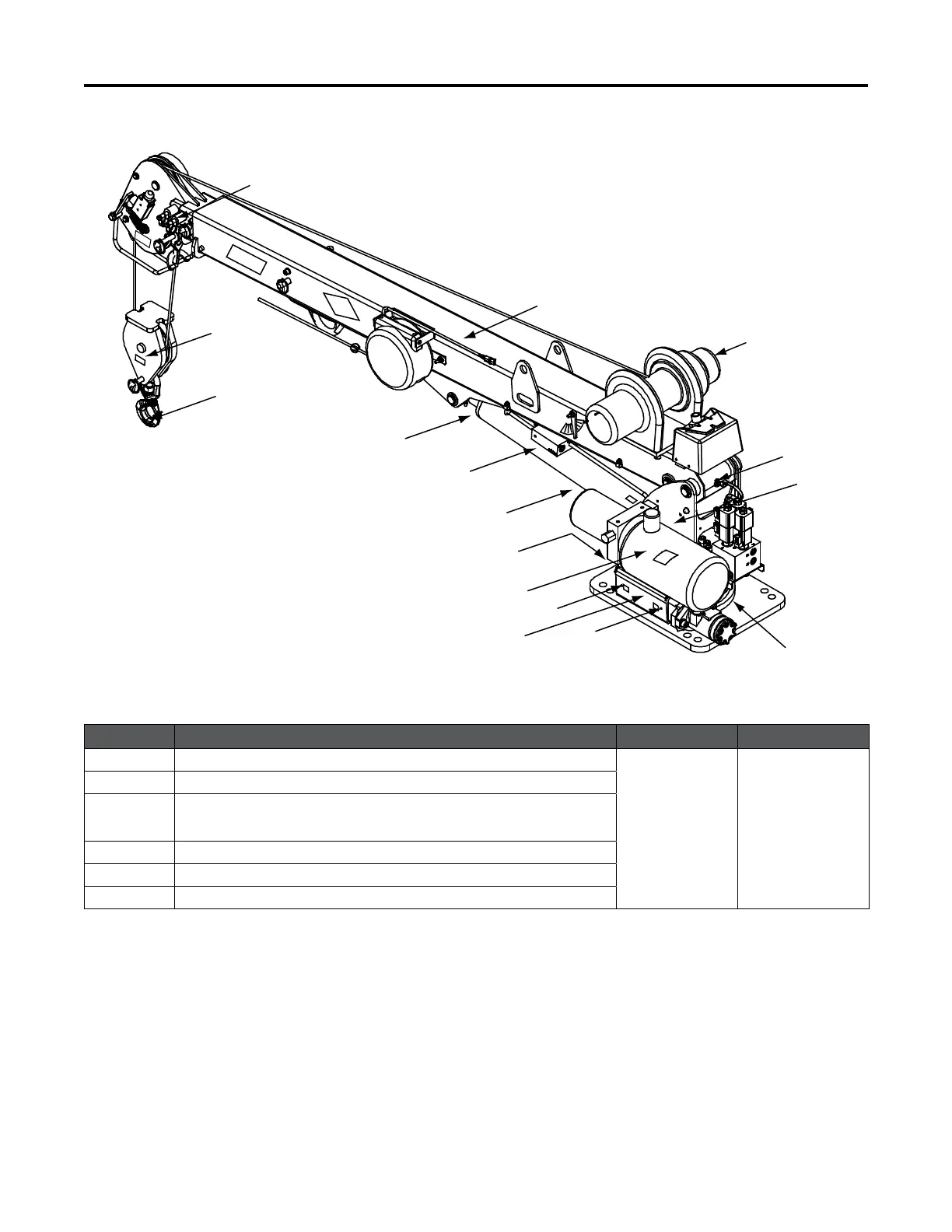

Assemblies & Grease Zerk Locations
ITEM NO. LOCATION DESCRIPTION LUBRICANT FREQUENCY
1 LOWER CYLINDER ROD
SHELL
ALVANIA 2 EP
OR
SHELL

WEEKLY
2 LOWER CYLINDER BASE
3
GEAR ROTATOR GREASE EXTENSION
*ROTATE CRANE WHILE GREASING.
4 POWER UNIT
5 POWER UNIT
6 LOWER BOOM PIN
NOTE
All application points must be greased weekly under normal workloads and moderate weather conditions.
Under severe operating conditions, lubricate more frequently. See the IMT Electric Crane Operation &

NOTE:
󰀨
4
5
LOWER
CYLINDER
3
6
CRANE
BASE
WINCH
SNATCH
BLOCK
MAST
POWER
UNIT
LOWER
BOOM
EXTENSION
BOOM
HOOK
2
1
HYDRAULIC
RESERVOIR
