Parts 88 Section 4

IMT 5005i / 6006i - Manual # 99904387

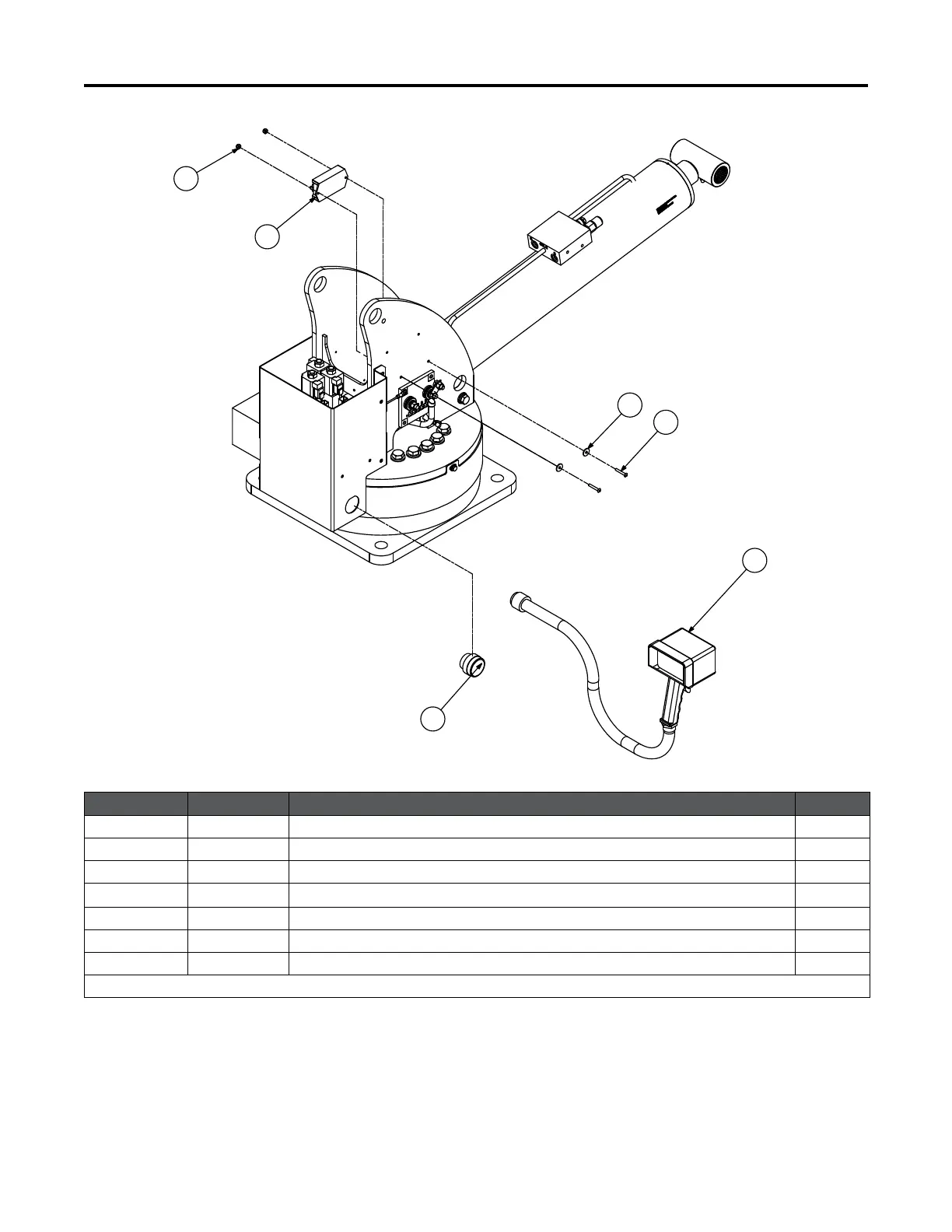

Tethered Control Installation (99904593)

ITEM NO. PART NO. DESCRIPTION QTY.

1. 91721524 CONTROL KIT- TETHERED ELECTRIC CRANE REF

3. 51721502 HANDLE ASM-TETHERED ELECTRIC CRANES 1

6. 71413190 RELAY-2 RELAY MODULE 1

9. 72062106 NUT 10-24 HEX NYLOCK 2

11. 72063268 WASHER #10 W FLAT ANSI B27.2Z 2

12. 72602013 SCR-MACH #10-24X 1.25 BTNHD ZC 2

13. 77044667 PLUG CAP-DEUTSCH HDC36-24 1

REV. B

NOTE:

See 99904377 for installation drawing prior to 2-15-09. Component parts are the same.

5005i/6006i

CRANE

TETHERED CONTROLS
