IMT 5005i Parts & Specifications

Parts 68 Section 4
IMT 5005i / 6006i - Manual # 99904387

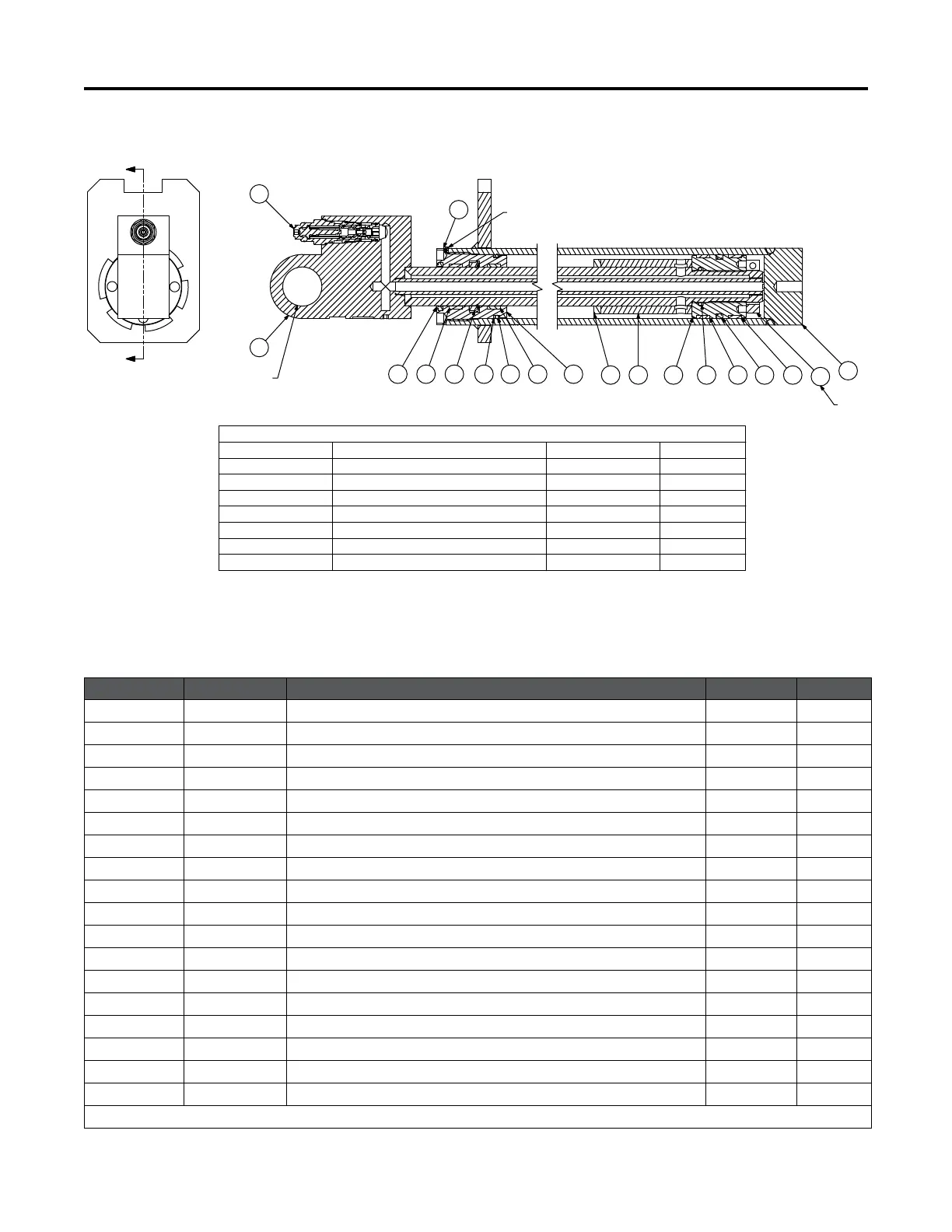

Cylinder, Extension (51721386)
51721386 COMPLETE PARTS LIST
ITEM NO. PART NO. DESCRIPTION KIT NO. QTY
1. 51744143 IMT SEAL KIT-2.50 B X 1.50 R 1.25 STGR 1
2. 52721387 ROD ASM-1.50 DIA X 86.63 LG 1.25 S 1
3. 52721388 CASE ASM-2.50 BORE X 82.51 LG 1
4. 6HD25015 HEAD-2.50 BORE X 1.50 ROD (DUCTILE IRON) 1
5. 60127864 STOP TUBE-1.50 ROD X 3.56LG 4 HOLE 1
6. 60127830 PISTON-2.50 BORE X 1.25 STGR 1
7. 72062323 COLLAR-LOCK 1.25-12 THREADED 1-PC 1
8. 73054999 VALVE-CBAL SUN01 CBBC-LHN 1
9. 60125699 PIN - LOCK TUBE 0.19 OD X 0.065 WALL 1 1
10. 60138272 STOP TUBE-1.75 ROD X 0.25 LONG 1 1
11. 7Q072218 O RING 1.25X 1.50X .12 70 1 1
12. 7Q072228 O RING 2.25X 2.50X .12 70 1 1
13. 7Q10P228 BACKUP RING-2.25 ID X 2.50 OD 1 1
14. 7R14P015 ROD WIPER TYPE D 1.50 ROD 1 1
15. 7R546015 U-CUP 1.50 ID X 2.00 OD 1 1
16. 7T2N4025 WEAR RING-PISTON 2.50 ODX .50W 1 2
17. 7T2NX417 WEAR RING-ROD 1.50 IDX0.50W 1 2
18. 7T66P250 PISTON SEAL-DYNAMIC 2.50IN CP 1 1
REV B
SECTION A-A
A
A
8
2
14 17 15 13 12 17 4
10 5 6 11 16 18 16
7
3
1.53
9
#15 DRILL  0.188
PRESS IN 60125699
(LOCATION AROUND BARREL
NOT CRITICAL)
GRIND LOCKING C
OLLAR
CAP SCREW FLUS
H
CYLINDER DATA
EXTEND:
RETRACT:
CASE:
ROD:
STINGER:
CYL. STROKE:
LOCKNUT TORQUE: CAP SCR TORQUE:
CARTRIDGE TORQUE:
HEAD TORQUE:
PISTON TORQUE:
BRG. SPAN:
TEST PSI:
OPER. PSI:
DRY WEIGHT:
1.77 SQ IN X 1.53 GAL
1.17 SQ IN X 0.98 GAL
Ø3.00OD X Ø2.50B X 81.26LG
Ø1.50 X 82.69LG
Ø1.25 X 2.81LG
72.00"
12 FT-LB
84.65 LBS
9.9%
3000 PSI
2500 PSI
250 FT-LB
500-530 FT-LB
30-35 FT-LB
16 FT-LB
