IMT 5005i Parts & Specifications

Parts 69 Section 4
IMT 5005i / 6006i - Manual # 99904387
51721386-1
2
8
9
14
17
4
15
17
13
12
10
5
11
16
6
18
16
7
3

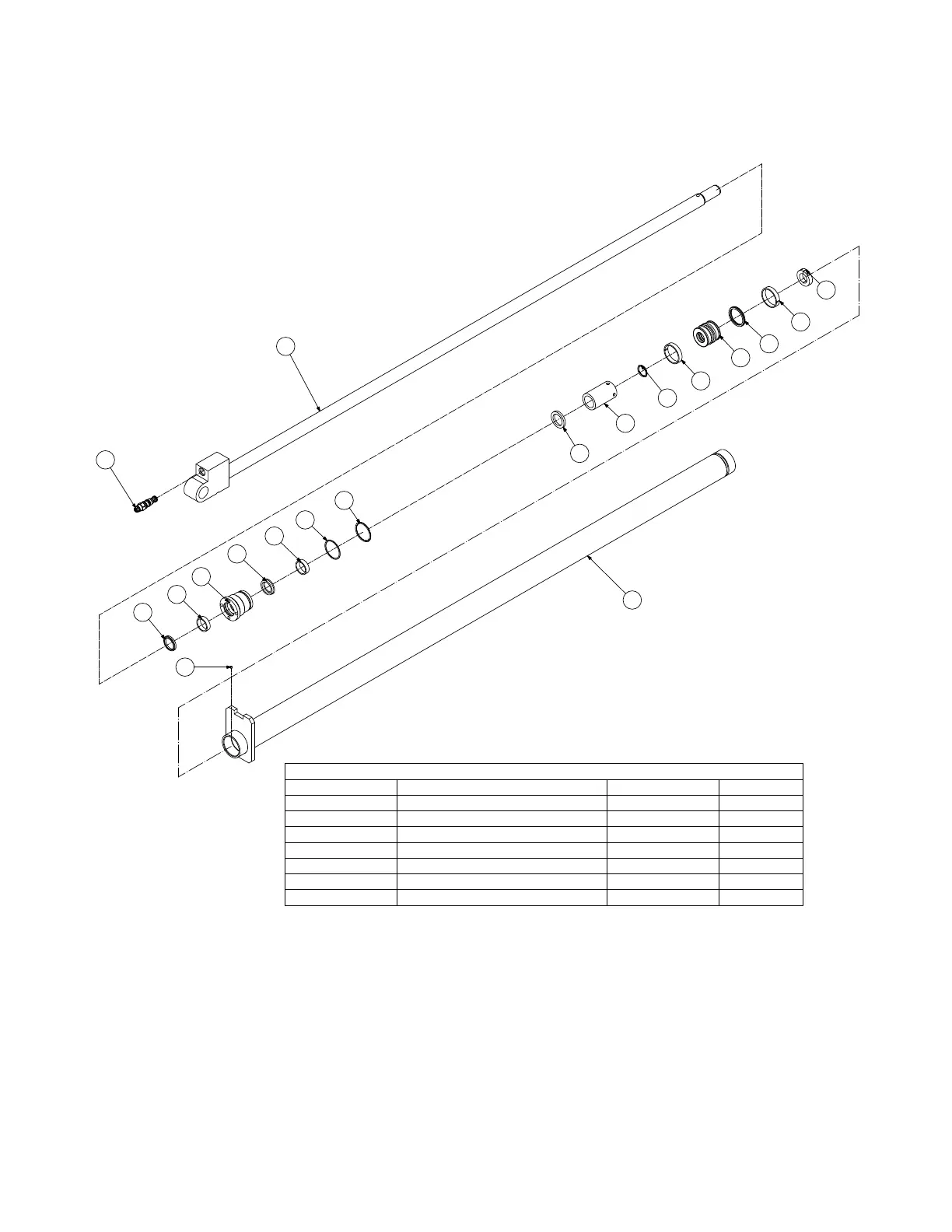

CYLINDER DATA
EXTEND:
RETRACT:
CASE:
ROD:
STINGER:
CYL. STROKE:
LOCKNUT TORQUE: CAP SCR TORQUE:
CARTRIDGE TORQUE:
HEAD TORQUE:
PISTON TORQUE:
BRG. SPAN:
TEST PSI:
OPER. PSI:
DRY WEIGHT:
1.77 SQ IN X 1.53 GAL
1.17 SQ IN X 0.98 GAL
Ø3.00OD X Ø2.50B X 81.26LG
Ø1.50 X 82.69LG
Ø1.25 X 2.81LG
72.00"
12 FT-LB
84.65 LBS
9.9%
3000 PSI
2500 PSI
250 FT-LB
500-530 FT-LB
30-35 FT-LB
16 FT-LB

IMT 5005i Specifications

General

Brand	IMT
Model	5005i
Category	Construction Equipment
Language	English
