22 Crane Reference
IMT 5005i / 6006i - Manual # 99904387
Telescopic Crane Orientation
When an IMT telescopic crane is not factory-installed on a body, the crane is packed with the boom oriented as it is
built on a test stand to facilitate handling. Install the crane on the body with boom pointing backward. Once the crane
is bolted down, it can be rotated 180° to the boom rest.

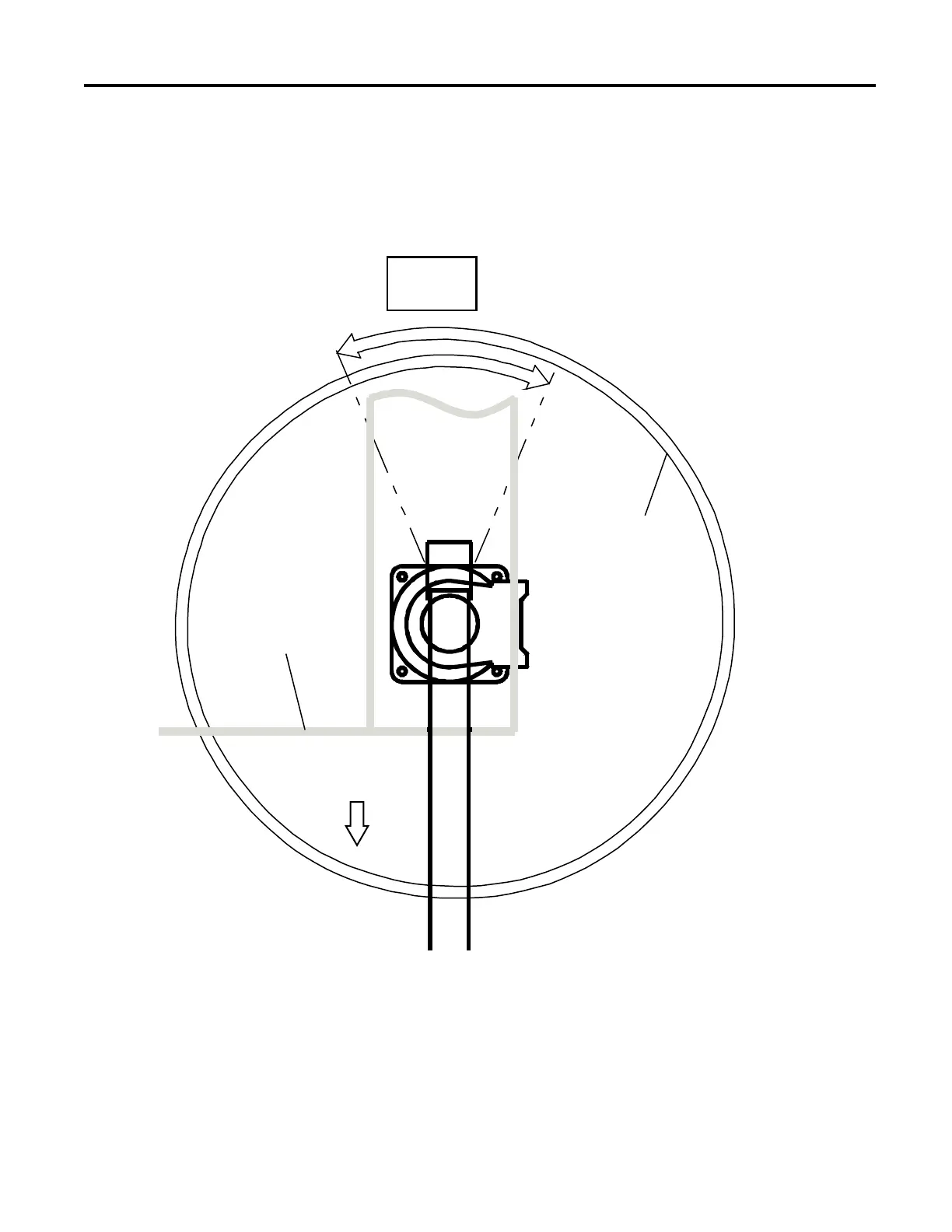

400°
ROTATION
OUTLINE OF
TRUCK BODY
REAR OF
TRUCK
BOOM
REST
