IMT 5005i Parts & Specifications

Parts 38 Section 4
IMT 5005i / 6006i - Manual # 99904387

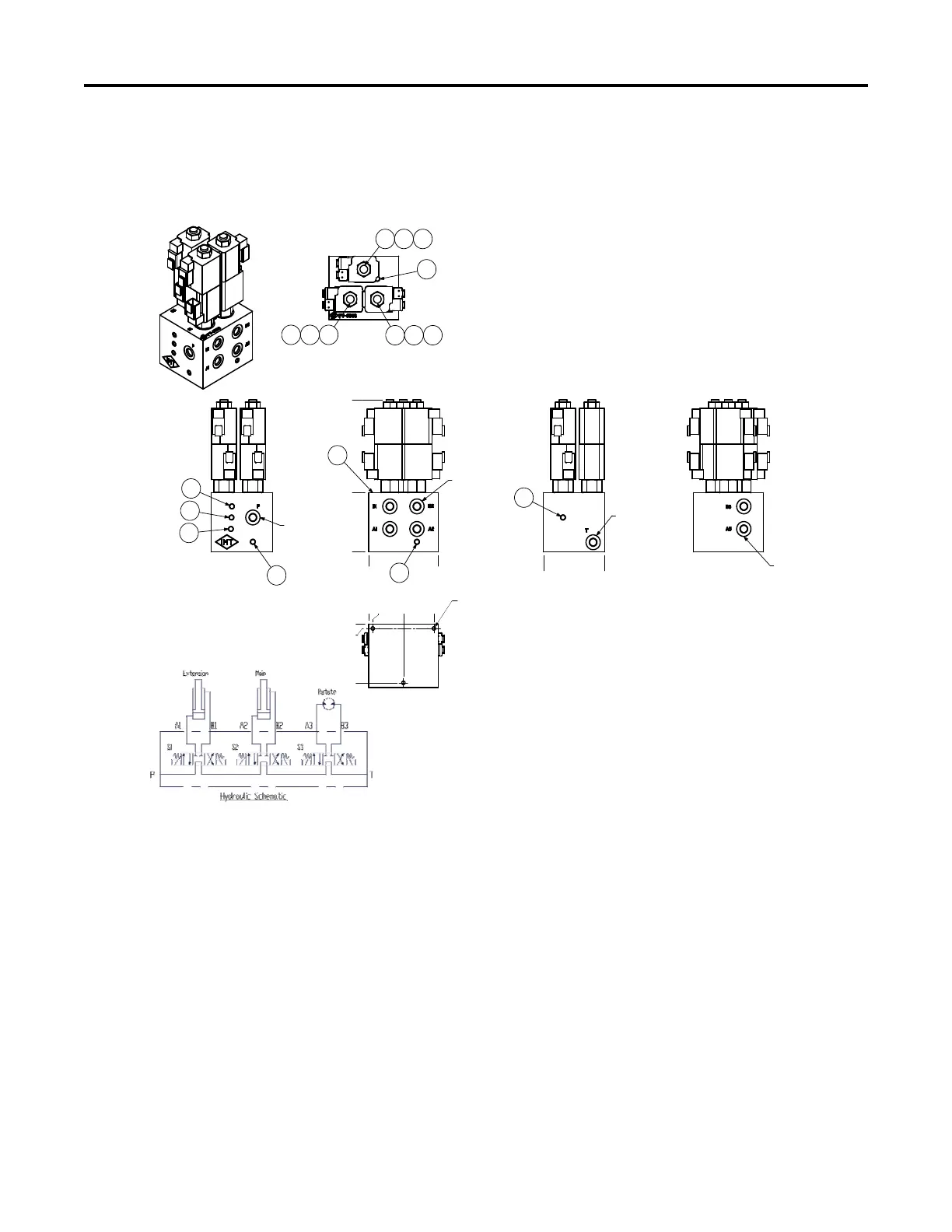

5005i & 6006i - Valve Bank (73734304 & 73734375)
TESTING PROCEDURE:
SETUP:
CONNECT A PUMP CABLE OF 3 GPM AND 3000PSI TO "P"
CONNECT "T" TO TANK
CAP ALL OTHER PORTS
TEST:
APPLY FLOW TO "P" AND VERIFY FLOW BACK TO TANK AT
LOW PRESSURE
ELECTRICALLY SHIFT EACH COIL AND VERIFY THAT THE
SYSTEM GOES TO THE BENCH RELIEF SETTING
END OF TEST
SAE #4 ORB PORT
0.00
2.438
6.284
0.00 3.00
0.00 0.188 1.500 2.813

0.151
SAE #4 ORB PORT
(4 PLACES)
SAE #4 ORB PORT
0.00
2.625
SAE #4 ORB PORT
(2 PLACES)
2 3 3
2 3 3
233
1
4
4
4
0.00
0.188
2.438
4
4
4
4
