102 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

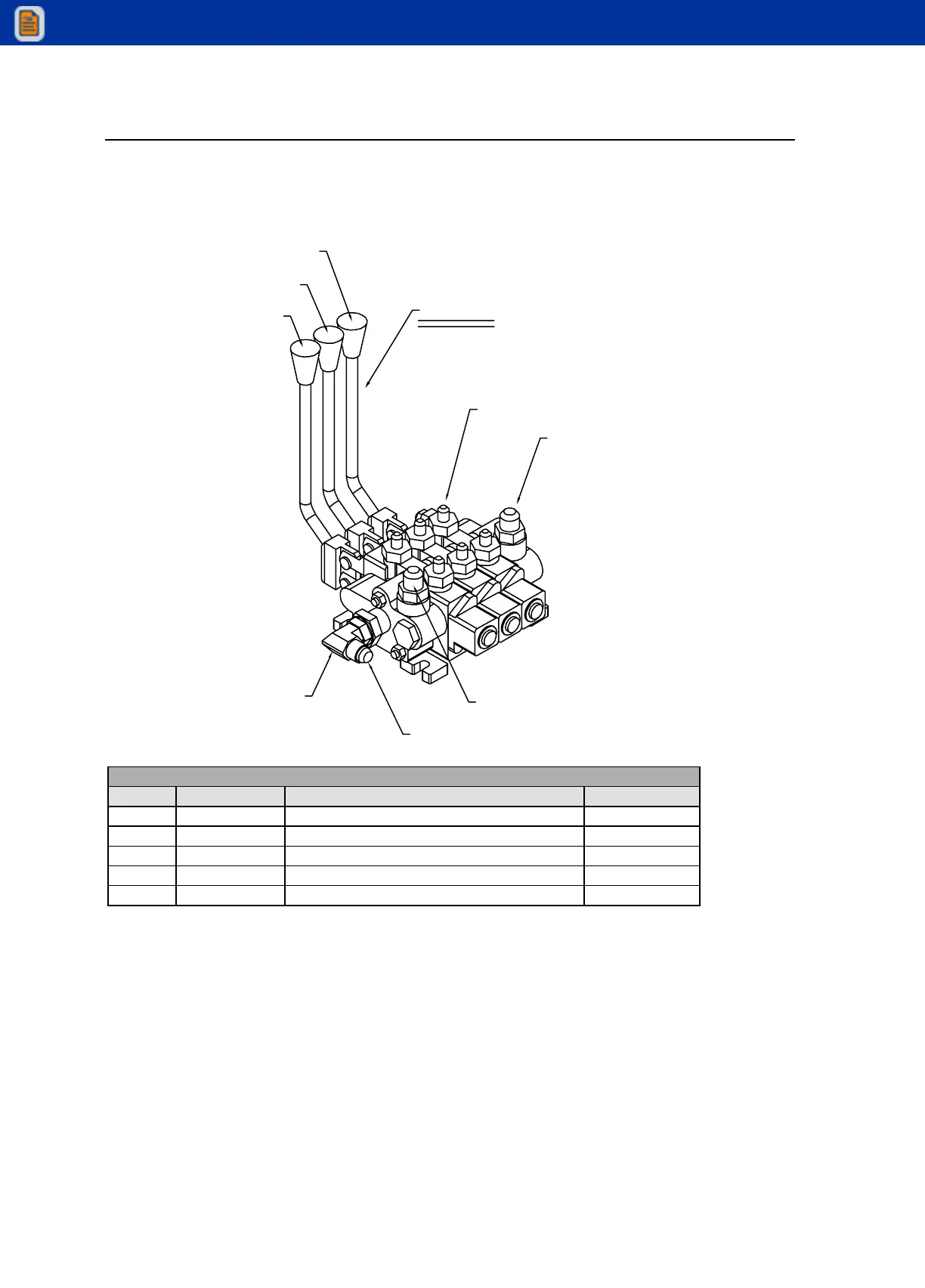

Valve Bank, 3-Section (51714812)
POWER OUT CYLINDER
S.S POWER DOWN CYL
C.S.POWERDOWNCYL
DO NOT BEND HANDLES!!
5(6)
3 (PRESSURE
FROM PUMP)
4(RETURN
TO TANK)
POWER BEYOND
TO CRANE
2
51714812 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 51705984 VALVEBANK 1
2. 72053764 ELBOW #10MSTR #8MJIC 90° 1
3. 72532358 ADAPTER #8MSTR #8MJIC 1
4. 72532359 ADAPTER #10MSTR #8MJIC 1
5. 72533589 ADAPTER #10MSTR #4MJIC 6
REV. A 20040204
