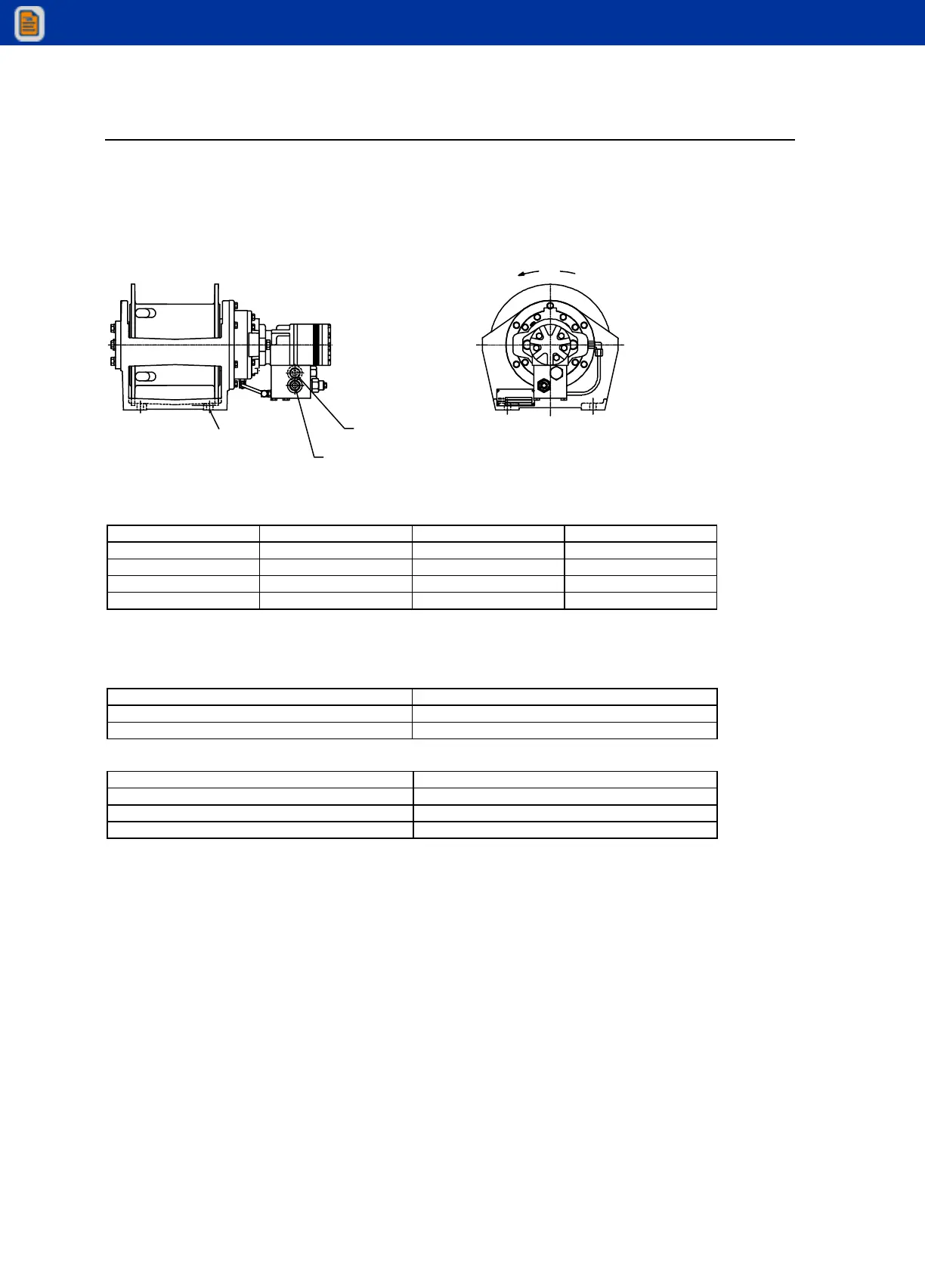

Winch Performance (70570771)
HOIST
4 X ø 0.59
MOUNTING
HOLES
LOWERING PORT
SAE-10 ORB
(7/8-14 THD)
HOISTING PORT
SAE-10 ORB
(7/8-14 THD)
70570771 WINCH SPECIFICATIONS
LAYER LINE PULL (POUNDS) LINE SPEED (FPM) CAPACITY (FT)
1 6000 50 34
2 5400 55 72
3 4920 60.6 114
4 4510 72 160
ULTIMATE SAFETY FACTOR = 2.5:1
GEAR RATIO = 5:1
PERFORMANCE ESTIMATE
PRESSURE 3000 PSI
FLOW 10 GPM
MOTOR DISPLACEMENT 11.9 CI/REV
DRUM SPECIFICATIONS
DRUM DIAMETER 7.50 INCHES
FLANGE DIAMETER 11.125 INCHES
WIDTH 7.28 INCHES
ROPE 0.44" DIAMETER
