IMT 6025 User Manual

Chapter 4 Parts 85

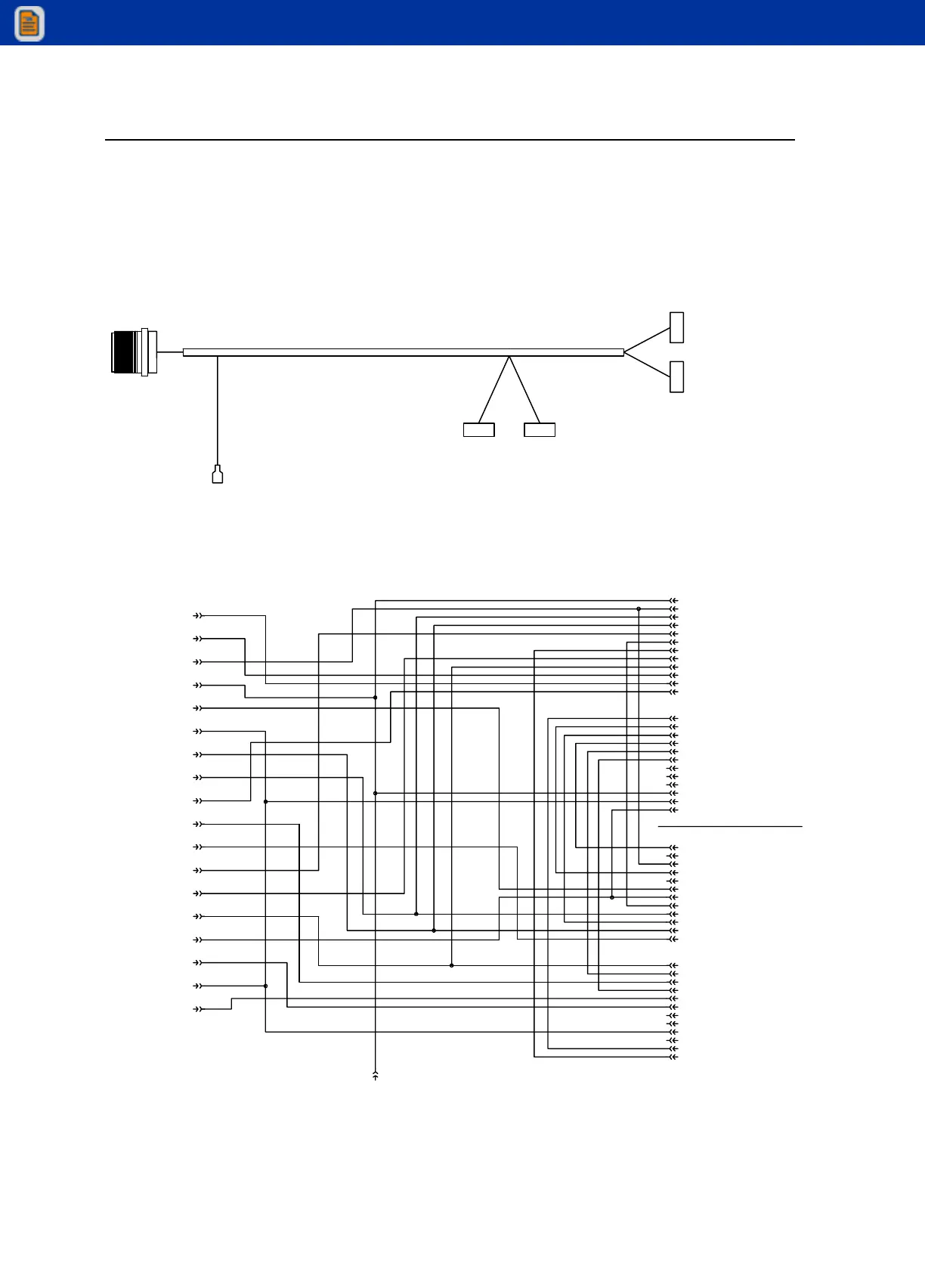

Electrical Harness, Tethered Remote (77441164)
TETHER CONNECTION
CP-700
W1
CRANE HARNESS CONNECTION
(RECEIVER CONNECTION)
CJ-550 CJ-551
CP-552
CP-553
LOGIC & VALVE
DRIVER MODULE
(71411554)
Electrical Schematic, Tethered (77441164)
1 CRANE POWER
2 GROUND
3 ROTATE CCW
4ROTATECW
5 BOOM DOWN
6 BOOM DN A2B/OL
7A2B/OVERLOAD
8 WINCH UP
9 WINCH DOW N
10 POTENTIOM ETER
11 5 VOLTS
12 EXTEND OUT
1WINCHBRAKE
2 PROP OUTPUT
3 BOOM DOWN WL
4 BOOM DN BYPASS
5 WINCH UP WL
6EXTENDOUTWL
7 PROGRAM PORT WPP
8 PROGRAM PORT DATA
9 PROGRAM PORT CLOCK
10 CRANE POWER
11 CMPRSR POWER
12 ENGINE SPEED
N/C
N/C
N/C
CP-553
CP-552
1 BOOM DN BYPASS
2 N/C
3 GROUND
4 PROP OUTPUT
5E-STOP
6POWER
7 ENGINE SPEED
8 BOOM DN A2B/OL
9 ROTATE CCW
10 BOOM DOWN WL
11 ROTA TE CW
12 BOOM UP
N/C
N/C
1 WINCH DOW N
2 WINCH UP WL
3EXTENDIN
4EXTENDOUTWL
5 ENGINE START
6 ENGINE KILL
7RS485A
8RS485B
9CMPRSRPOWER
10 SPLIT
11 WINCH BRAKE
12 A2B/OVERLOAD
CJ-550
CJ-551
N/C
N/C
N/C
CRANE HARNESS
LOGIC MODULE /
VALVE DRIVER
S7
S6
S2
S2
S3
S4
S5
S1
S1
W1
CRANE
HOUR
METER
CP-700
5VOLTSE
POTE NTIOM ETER R
GROUND H
CRANE POWER S
POWER L
CMPRSR POWER T
ROTA TE CW A
ROTATE CCW K
EXTEND OUT B
EXTEND IN F
BOOM UP P
BOOM DOWN N
WINCH UP D
WINCH DOWN C
ENGINE SPEED J
ENGINE KILL M
CMPRSR POWER U
ENGINE START G
REV. C 20051213
