IMT 6025 User Manual

40 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

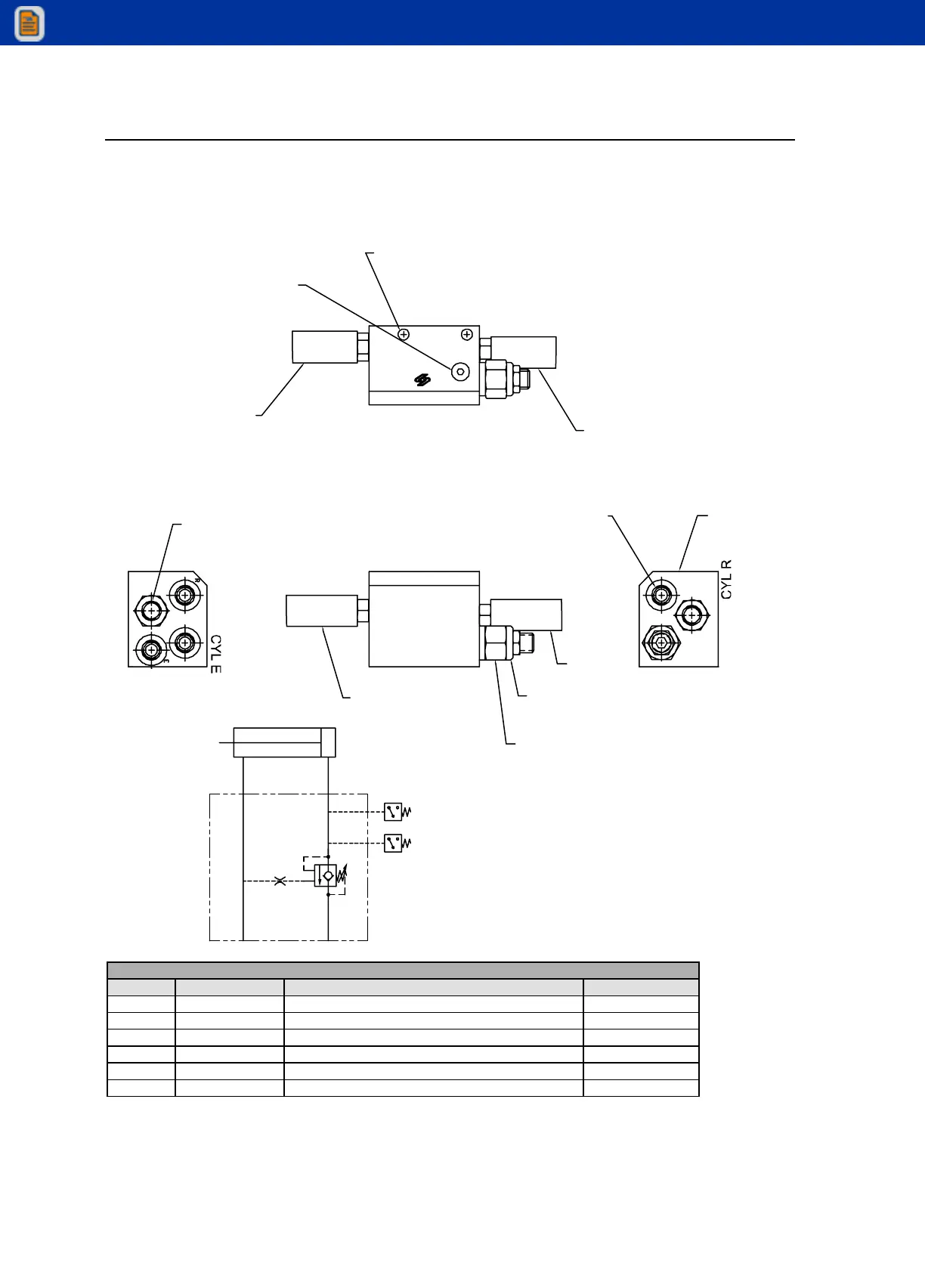

Valve, Counterbalance (73540094)
PRESSURE SWITCH
3500 PSI
THRU HOLE FOR 5/16
BOLT (2 PLACES)
SAE #6 ORBP
9/16-18 THD (3 PLACES)
COUNTERBALANCE VALVE
TORQUE TO 40 FT-LB
SET TO 3300 PSI @ 1 GPM
1
5
26
CYL R CYL E
3100 PSI
3500 PSI
R
E
SAE #6 ORBP
(2 PLACES)
PRESSURE SWITCH
3100 PSI
4,7
ORIFICE PLUG UNDER
SAE #4 PLUG
73540094 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 73540051 VALVE, C-BAL 1
2. 73540052 VALVE, C-BAL 1
4. 70145750 ORIFICE 1
5. 77041626 PRESSURE SWITCH 1
6. 77041625 PRESSURE SWITCH 1
7. 72533477 PLUG, STR HOL HEX STL 7/16 THD 2
REV. C 20040610
