IMT 6025 User Manual

Chapter 4 Parts 107

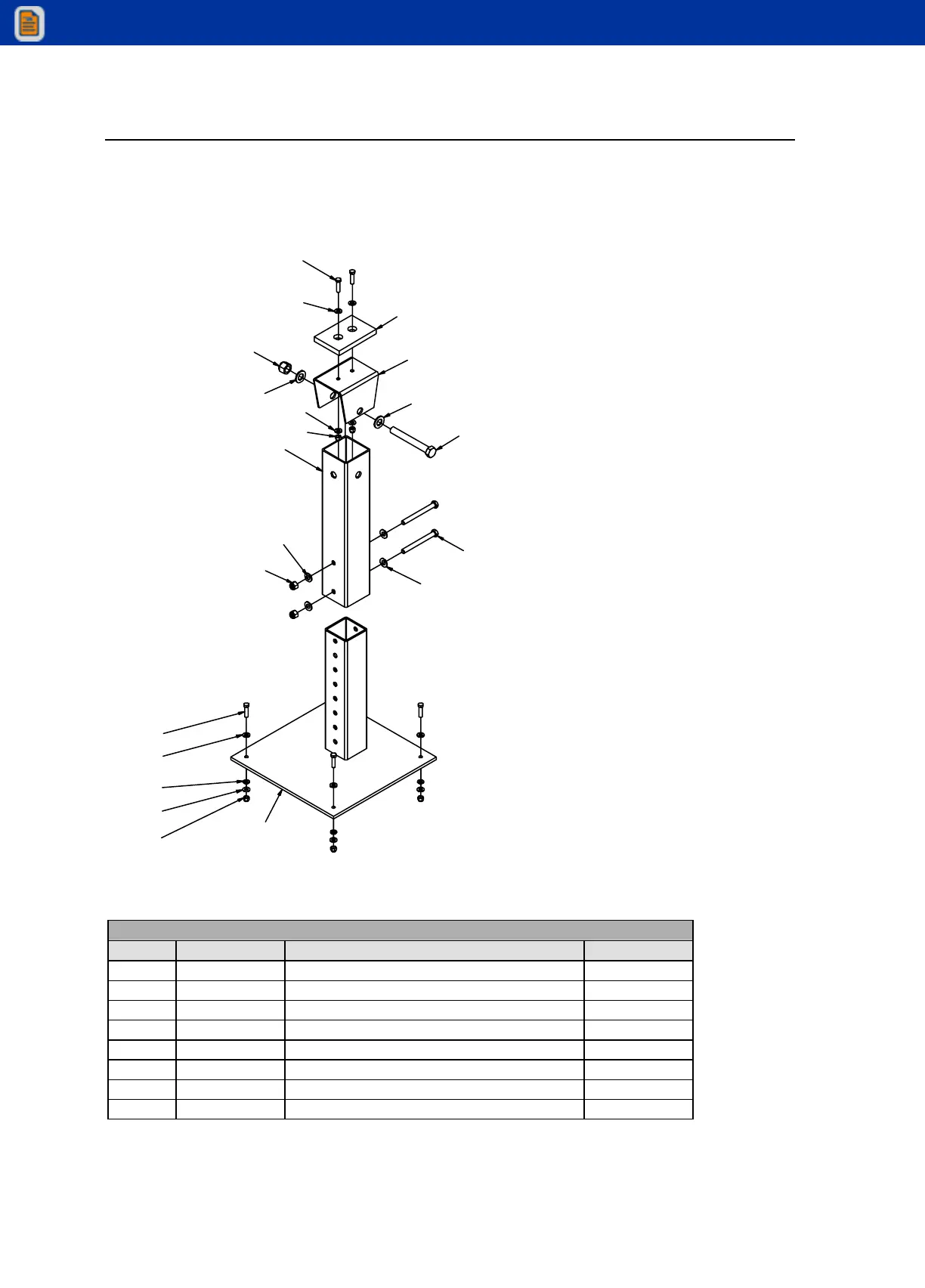

Boom Support, Adjustable, 3820-5020-5525-6025 (51718848)
1
7
14
4
2
10
3
12
8
12
13
13
11
9
11
6
(4X) 6
(4X) 11
(4X) 15
(4X) 11
(4X) 9
NOTE:
1 Hardware included in kit # 51718794.
2 Rotate and arrange pedestal #1 and saddle #10 based on chassis exhaust.
51718848 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 52718849 PEDESTAL-WLDMT ADJ 1
2. 60030306 WEAR PAD 1
3. 60126561 TUBE-PEDESTAL 1
4. 60126563 SADDLE-BOOM SUPPORT DOM 3820 & UP 1
6. 72060048 CAP SCR .38-16X 1.50 HH GR5 Z 6
7. 72060101 CAP SCR .50-13X 5.00 HH GR5 Z 2
8. 72062080 NUT .50-13 HEX NYLOCK 2
9. 72062103 NUT .38-16 HEX NYLOCK 6
