Chapter 4 Parts 67
Crane & Winch Assemblies

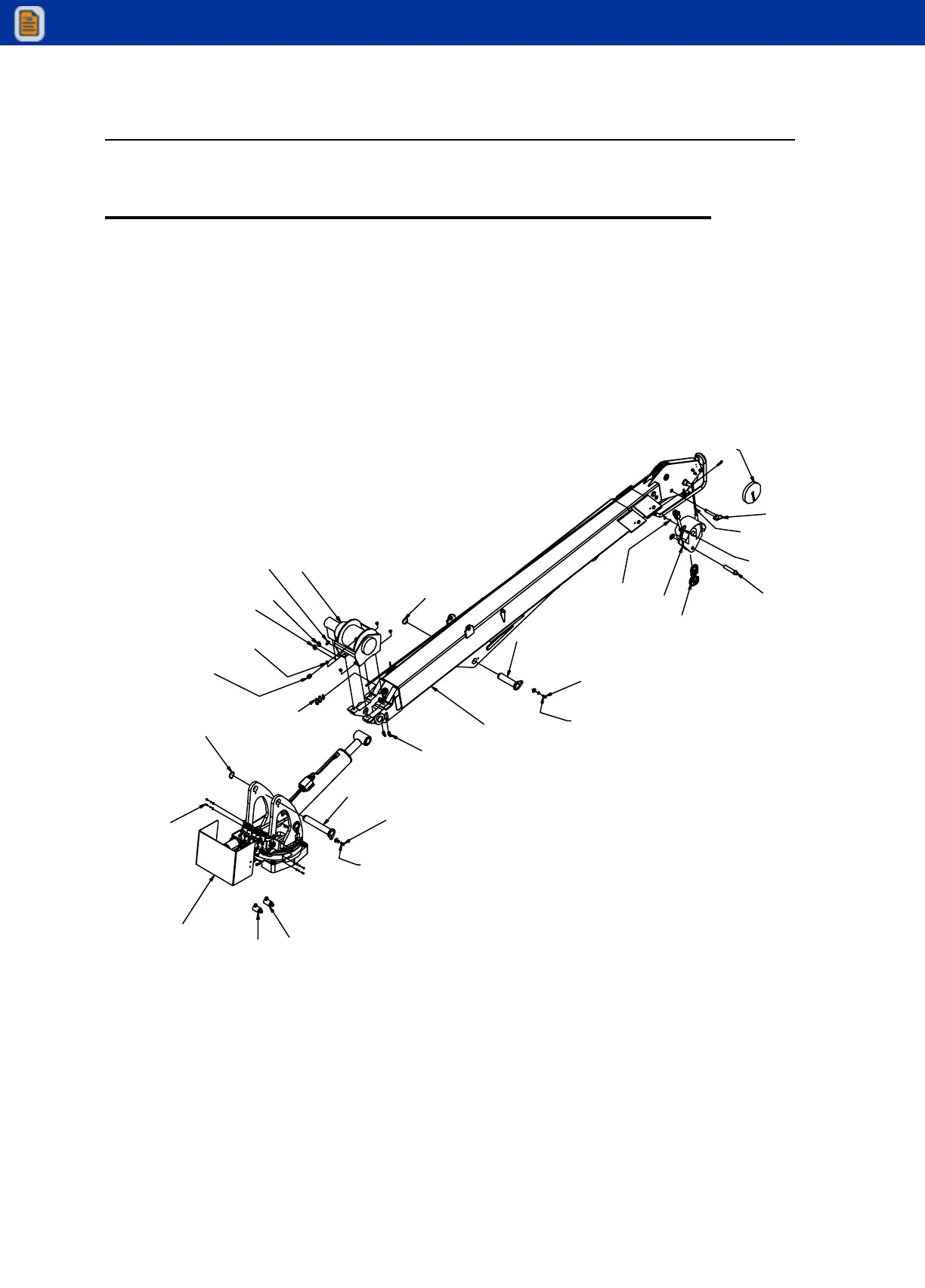

Crane & Winch Assembly (99903693) (Primary configuration)
DOUBLE LINE APPLICATION
10
21
20
27
10
28
5,7,14
33
23
24
31
32
2
26
25
29
19
19
18
5,7,14
30
(SEE NOTE #4)
USEBLUETHREAD
LOCK ON CAP SCREWS
USEBLUETHREAD
LOCK ON CAP SCREWS
(SEE NOTE #5)
(SEE NOTE #1)
(SEE
NOTE
#2)
(SEE NOTE #3)
(PART OF
BOOM
ASSEMBLY)
11,12,13
(4 PCS)
17(2),22
16 (2 PCS)
(4 PCS) 6
4,8
NOTES:
1 USE SWIVEL HOOK, ITEM #33, ON DOUBLE LINE CONFIGURATION. ATTACH ITEM #34, SINGLE LINE
HOOK, TO UNDERSIDE OF BOOM AND CABLE HOOK.
2 FOR DOUBLE LINE APPLICATION, INSTALL ITEM #24 THROUGH THE BOOM SIDE PLATE AND THEN
THROUGH THE WIRE ROPE CLEVIS.
3 MOUNT THE DOWN HAUL WEIGHT ON THE BOOM SIDE OF THE PLATE SHAFT.
4 REMOVE 90° ELBOW ON THE DRUM SIDE OF THE COUNTERBALANCE VALVE. ADD ITEM #18, TEE, AND
RECONNECT TUBE FROM COUNTERBALANCE VALVE TO WINCH BRAKE.
To Next Page
