38 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688
Gear Rotator (71056608) (Alternate configuration)
43
25
24
21
20
23
18
33
11
19
17
13
4
8
26,40,41
36,37,38
35
22
14
9
15
12
NOT
SHOWN
39
3
6
2
10
34
27,28,29
5
42
30
32

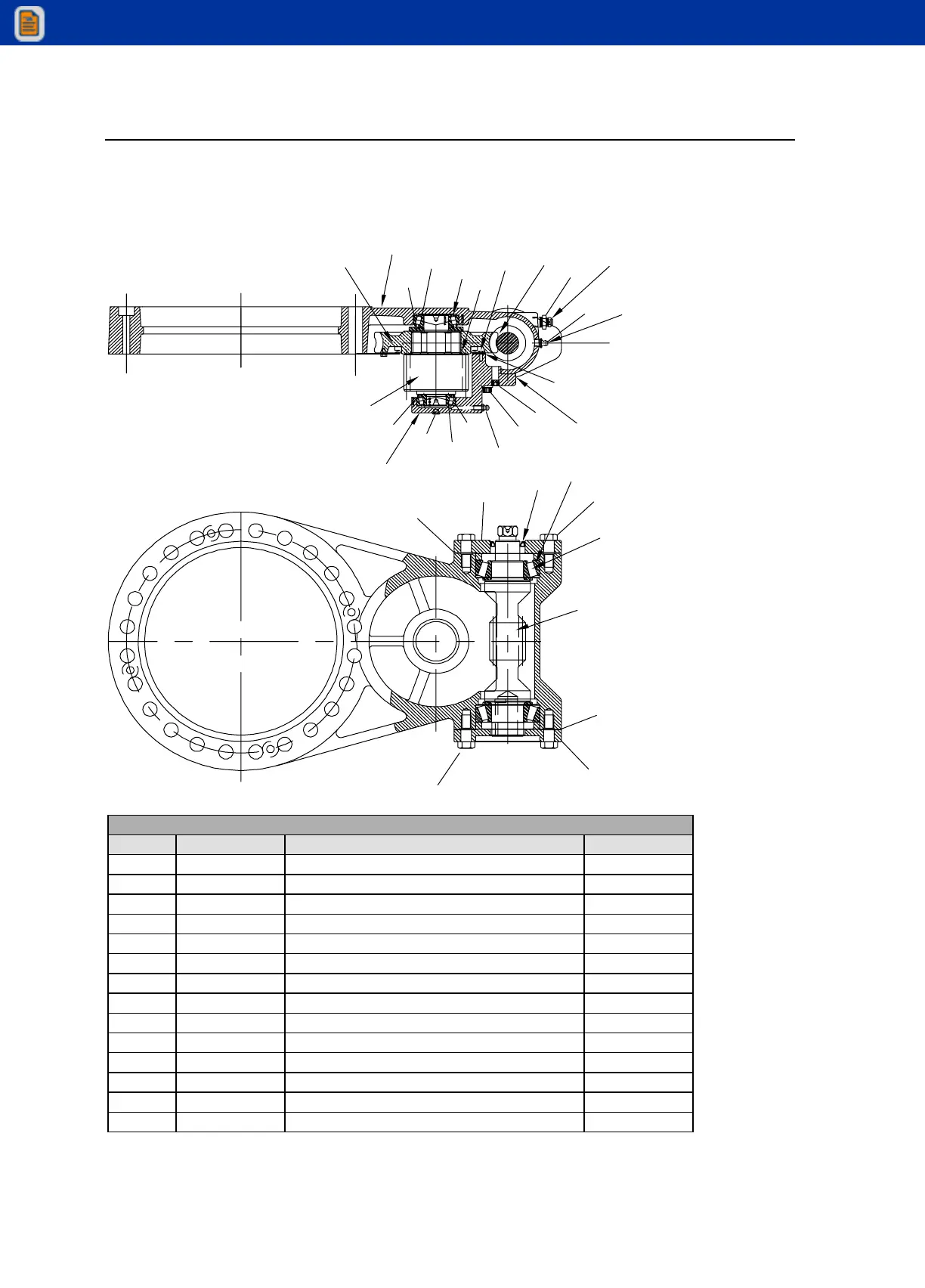

71056608 PARTS LIST (PARTS SHOWN ON DRAWING 99903804)
ITEM PART # DESCRIPTION QUANTITY
2. 70055307 BEARING, ROLL CUP 2
3. 70055308 BEARING, ROLL CONE 2
4. 71412279 3/8-16X1-1/4 12 PT CBB GR8 8
5. 71412280 CAP SCR 1/2-13X1 HH (SHIPPING ONLY) 2
6. 71412281 CAP SCR 1/2-13X1-1/4 HH PLATE GR5 2
8. 71412282 PLUG, PIPE 1/8" HEX SUN 1
9. 71412283 VENT PLUG 1
10. 76396847 SEAL, OIL 1
11. 71412284 PLUG, THREADED 1/4-28 1
12. 70034484 CAP, GREASE FIT PLASTIC COVER 2
13. 71412285 GREASE FITTING 1/4-28 STRAIGHT 1
14. 71412286 BUSHING, RED 1/8X1/4 1
15. 71412287 GREASE FITTING 1/8 NPT STRAIGHT 1
17. 70055309 BEARING, ROLL CUP 1
To Next Page
