42 Model 5525-6025-6625 Parts & Specifications Manual Part # 99903688

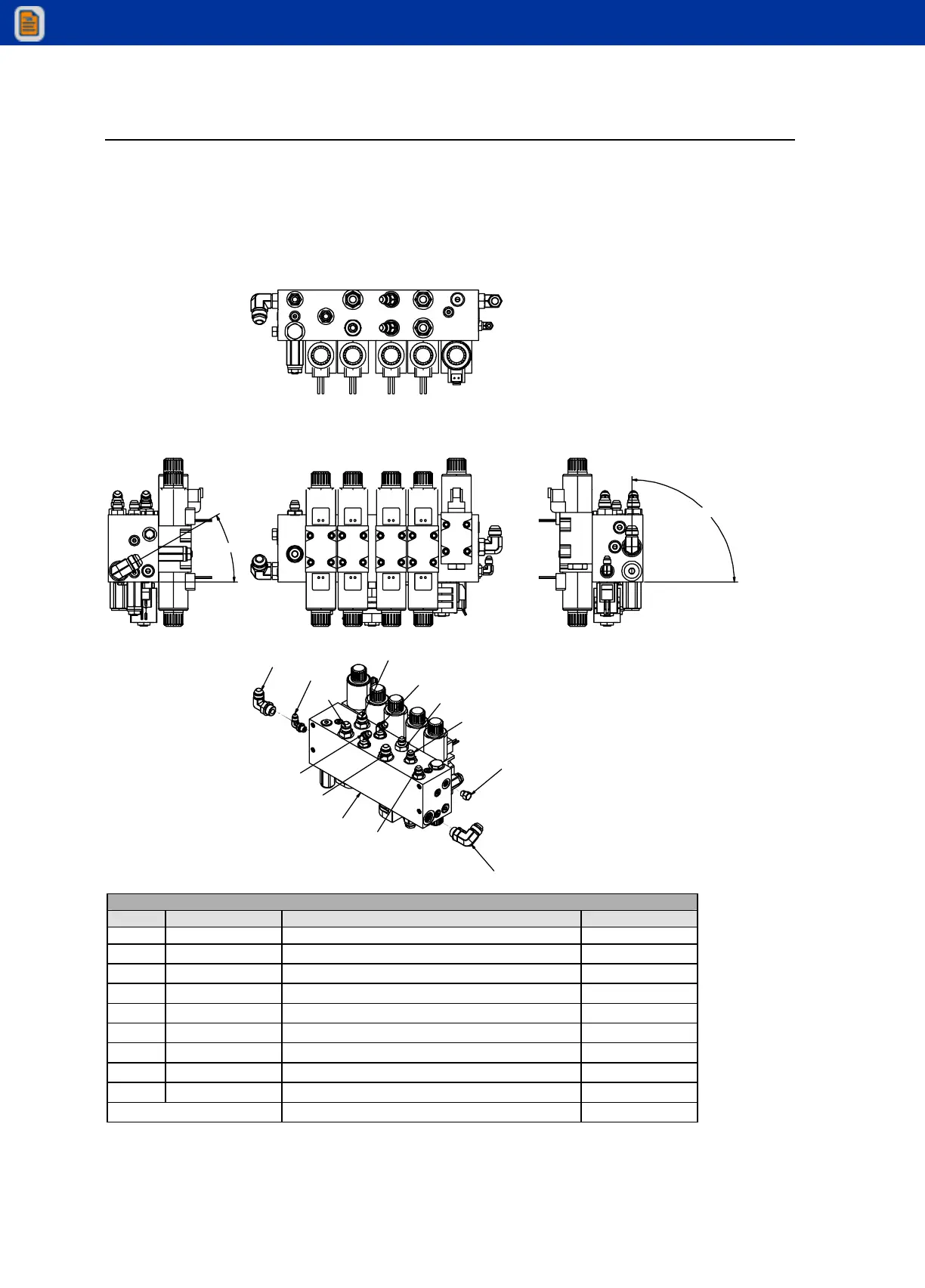

Valve Body Assembly (51719469) (Alternate Configuration)
30°
8
7
9
1
2
6
6
3
3
5
6
90°
4
4
ROTATION
LOWER
CYL
EXT
CYL
WINCH
CCW
CW
DN
UP
IN
OUT
DN
UP
PRESSURE
WINCH BRAKE
RETURN
51719469 PARTS LIST
ITEM PART # DESCRIPTION QUANTITY
1. 72053758 ELBOW-M STR/90/M JIC 4 4 1
2. 72053763 ELBOW-M STR/90/M JIC 8 8 1
3. 72053776 ELBOW-M STR/45/M JIC 6 6 2
4. 72532355 ADPTR-M STR/M JIC 6 6 2
5. 72532356 ADPTR-M STR/M JIC 8 6 1
6. 72532358 ADPTR-M STR/M JIC 8 8 3
7. 72532522 PLUG-STR HEX HD STL .44 1
8. 72533507 ELBOW-M STR/90/M JIC 8 10 1
9. 73733947 VALVE BANK ASM 1
REV. B 20050428
