iNetVu Troubleshooting Guide - 1201 Flyaway
Polarization and Feed Arm Assembly Removal
6) Click/push Stow icon/button, the Antenna should go to the following coordinates:
EL=78, AZ =-60 and PL=0.
7) Power off the 7000 Series controller.
Ensure to power off the 7000 Series Controller prior to
disconnecting cables.

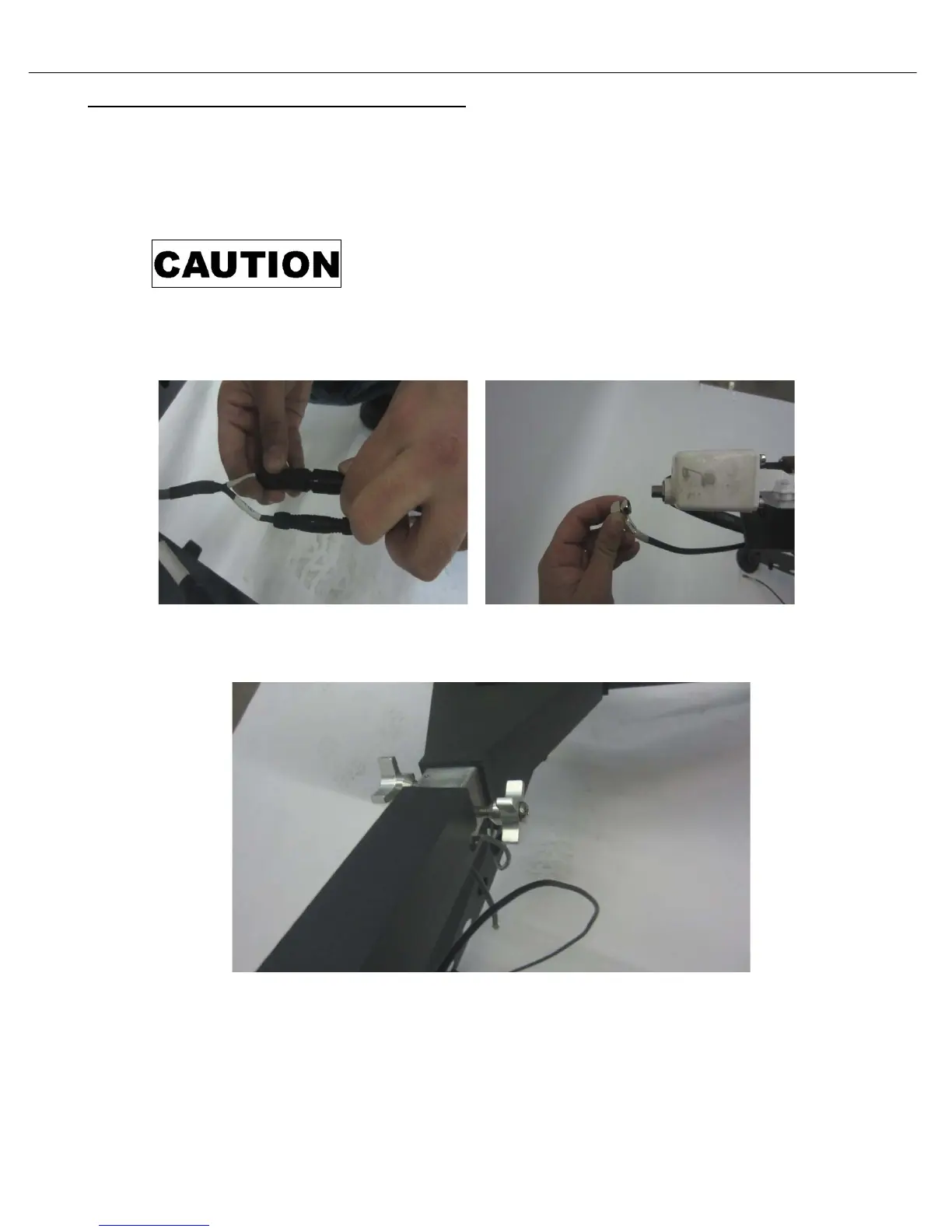

8) Disconnect the internal PL Tilt Sensor, PL Motor cable and LNB RX coax cable on the Feed
Arm.
9) Loosen retaining nuts; detach the Feed Arm and POL Cage assembly from the EL Feed Arm
Support plate.
