iNetVu Troubleshooting Guide - 1201 Flyaway

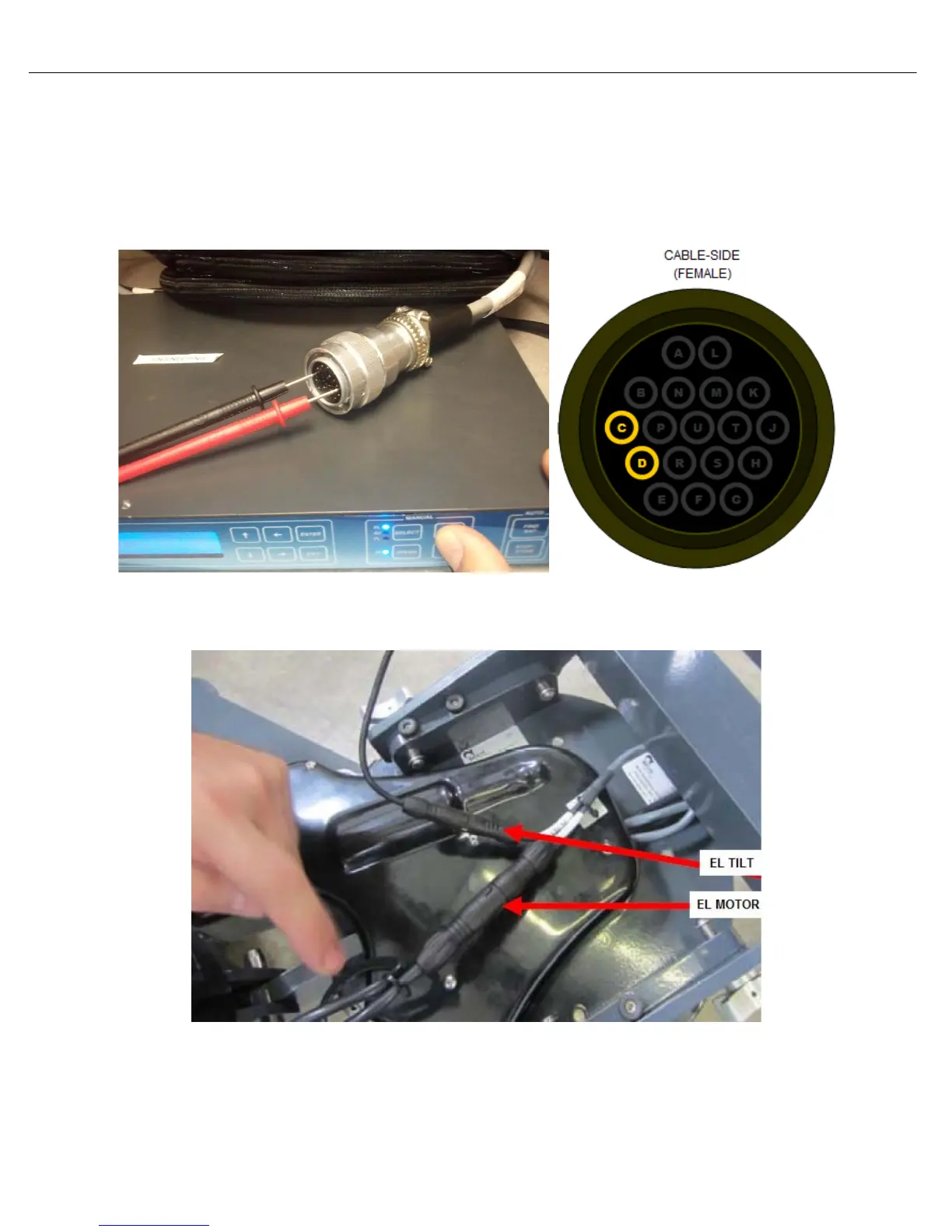

c. If we are getting voltage from the 7000 controller, we will need to test voltage on the flyaway
control cable. Reconnect the motor cable to the controller and disconnect the control cable from
the base plate of the platform. Place the volt meter leads on pins C and D of the control cable.
Using the 7000 controllers front panel, select Elevation with HI SPEED on and hold +. Are you
getting 24VDC? If no voltage is shown, it concludes the cable needs to be replaced. Contact C-
COM Technical Support for further assistance.
d. If we are getting voltage from the control cable, reconnect the Control Cable to the platform
and verify the Elevation Motor cable is securely connected as seen below.
Internal Elevation Motor and Tilt (Inclinometer) Sensor Cables
e. Reseat this cable and try to move the platform on elevation. If the platform does not move please
Contact C-COM Technical Support for further assistance.
