4.5 Touchscreen elements
1
2
3
4
5
6
7
1112
13
14
15
8
9
10

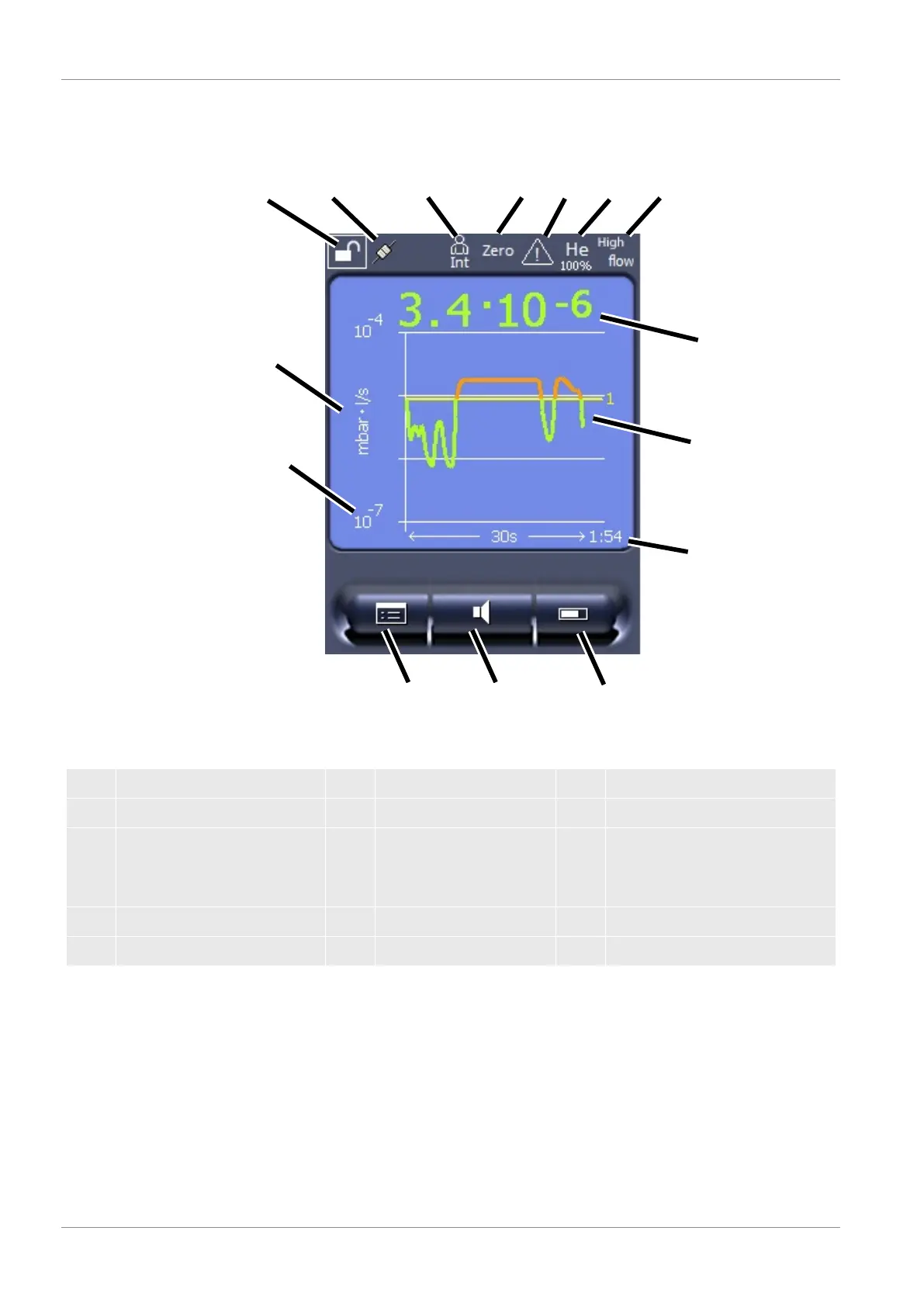

Fig.2: Measurement display
1 Keyboard lock 2 Communication status 3 Operator
4 ZERO 5 Message 6 Tracer gas
7 Operation mode 8 Leak rate with peak hold
function
9 Graphic representation of the
leak rate and the peak hold
function
10 Time axis 11 Button "Favorite 2" 12 Button "Favorite 1"
13 Menu 14 Value axis 15 Value axis
1 - Keyboard lock
The control unit is locked or unlocked by pressing and holding the icon for the
keyboard lock.
2 - Icon for the communication status
• Icon connected: The device communicates with the mass spectrometer module.
