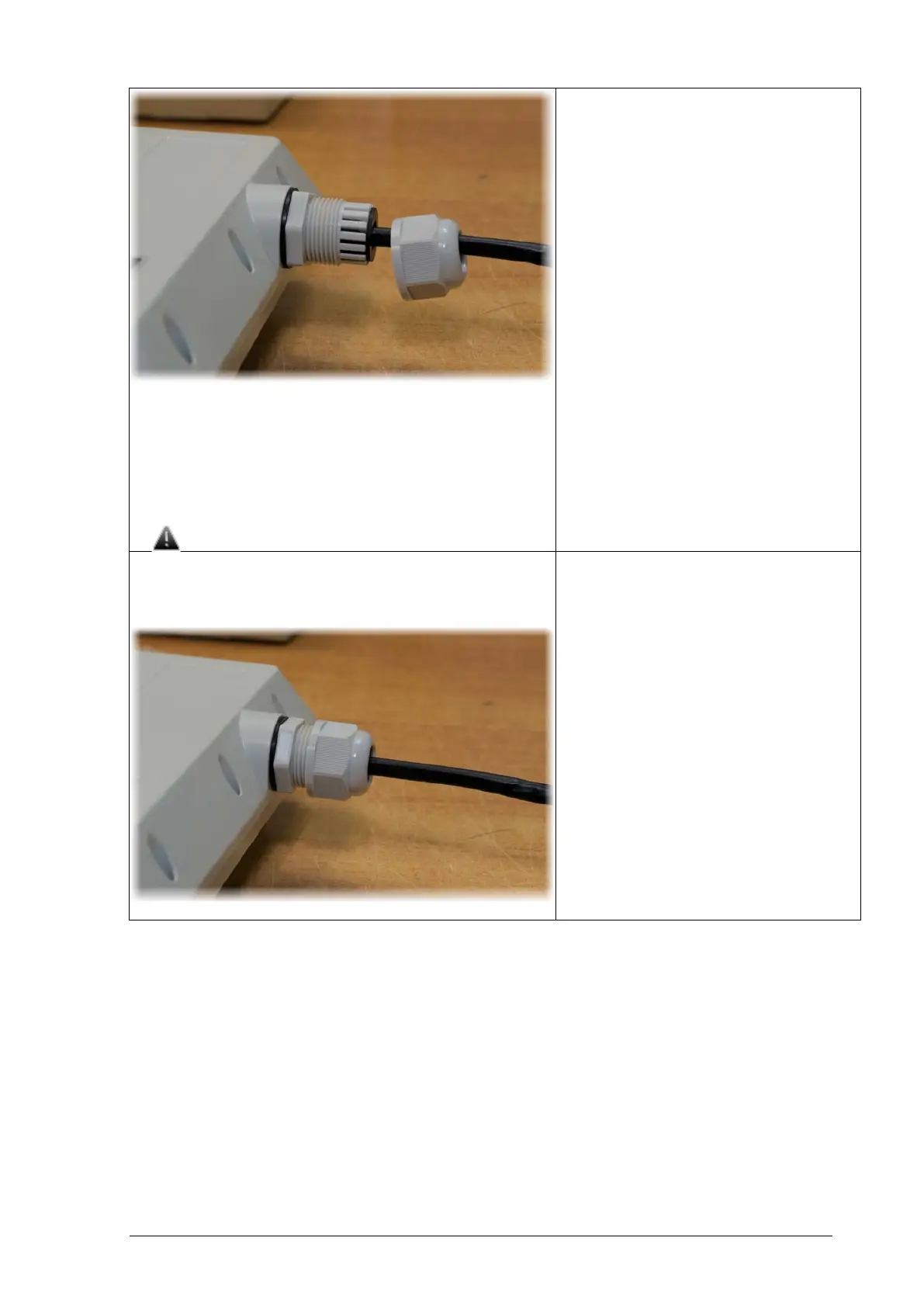

Step 1. Put the cable sealing nut (4) and the cable gland ca
se
(5) onto the cable as shown on the picture. Crimp the regular
RJ-
45 connector (3) onto the cable using the crimping tool.
Do not use the shielded RJ-
45 connector (2) on this end of
the cable as it should be attached on the IDU end.
Make sure that the RJ-45 connector is well-
crimped. A
loose connector can damage the device. Please note
that such damage is not covered by the warranty.
Step 2. Insert the connector into the socket until you hear a
click. Screw the cable gland case into the port and tight
Do not apply excessive
force.
Step 3. Tighten the sealing nut (4). Do not apply excessive force.
