Rotate the focusing ring (2) of the objective lens to focus on the object
to be observed.
To set the image mode, display brightness, image sharpness, image
contrast, refer to the S ho rtcu t M enu section in this manual.
After use, press and hold the
P ow er button (5) and a
shutdown countdown is
displayed. Release the button
after the countdown. The
thermal imaging monocular is
turned off.

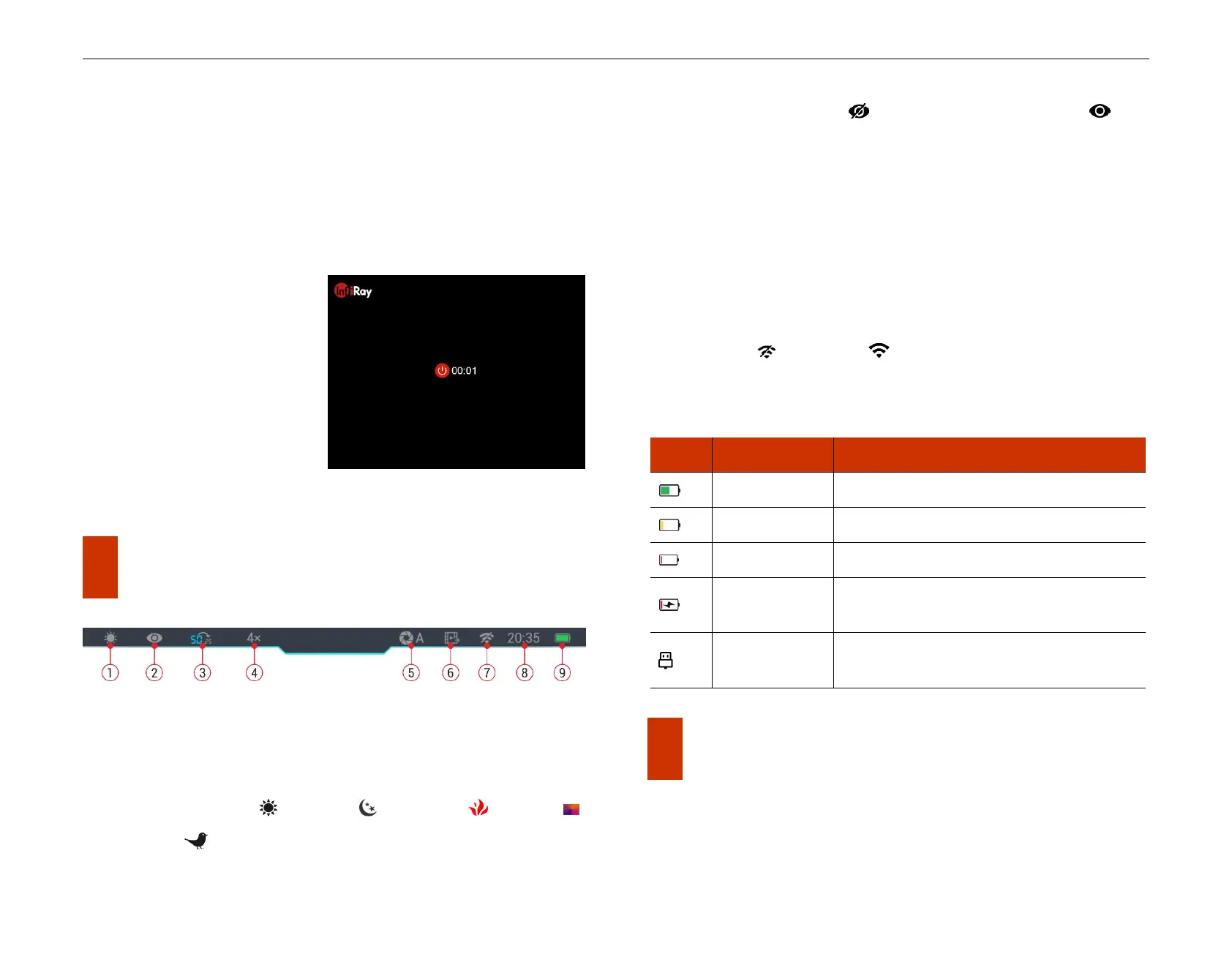

10 State Bar
The status bar is on the top of the display to indicate the current operation
status of the thermal imaging monocular. The display content from the left
to the right are as follows:
1. Current image mode ( : white-hot; : black-hot; : red-hot; :
pseudo-color; : highlight)
2. Ultraclear mode status: ( : the ultra-clear mode is off; : the
ultra-clear mode is on)
3. Current focal length of the objective lens
4. Current magnification (such as 4×)
5. Calibration mode (A : automatic shutter calibration; M : manual shutter
calibration)
6. Video output (when it is on)
7. Wi-Fi status ( : Wi-Fi is off; : Wi-Fi is on)
8. Time
9. Battery Pack status
Less than 20%, need to charge instantly
External power supply meanwhile charging
the Battery Pack
External power supply without Battery Pack
in the Zoom
11 Calibration
In rare cases, once the image is degraded or uneven, it can be improved
