Infoblox SoT 1405 Series Hardware Components
For the Infoblox 1400 Series Platforms 13

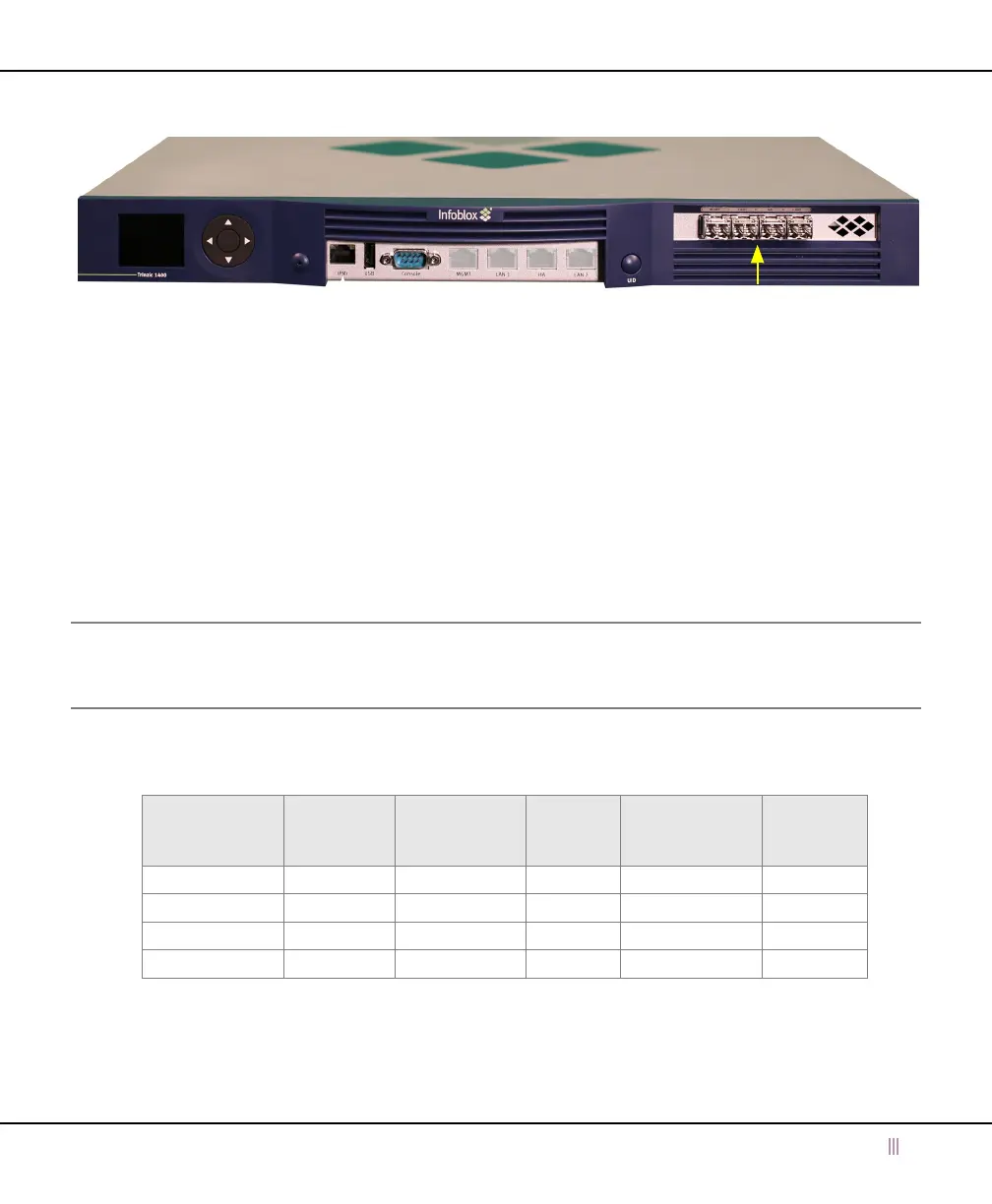

Figure 3 Infoblox SoT 1405 Series, Front View with Four SFP/SFP+ Interfaces
In optional configurations for select Infoblox SoT 1405 Series appliances, 1GbE SFP and 10GbE SFP+ ports replace
the functionality in the original built-in MGMT, LAN1, HA and LAN2 ports, thereby disabling the built-in ports as
indicated in
Figure 3. 10GbE support accepts Infoblox-provided SFP+ 10GbE Short Range and Long Range
transceivers, Cisco SFP+ Direct Attach 10GSFP+Cu, or HP HPJ9283B SFP+ Direct Attach 10GSFP+Cu transceivers.
You may mix media types in the set of ports (e.g., two copper interfaces and two fiber interfaces).
You may use SFP and SFP+ transceivers in a mixed configuration in 4-Port 10GbE appliances. An example use case
involves installing 10GbE SR SFP+ transceivers in the LAN1 and LAN2 ports for the Trinzic TE- 1415 or TE-1425
appliance, and installing 1GbE SFP copper transceivers in the MGMT and HA interfaces.
Note: For ND-1405 and TR-1405 appliance models configured with 1GbE SFP or 10GbE SFP+ interfaces, the HA port
is reserved for future use and cannot be used for network applications. Order of ports from left to right is otherwise
the same. (The PT-1405 does not support 10GbE operation, but supports HA.)
Table 2 SFP/SFP+ Appliance Support Summary
See the section Infoblox SoT 1405 Series Field Replaceable Units for information on part numbers, availability, and
device compatibility.
Infoblox SoT
1405 Series
Model
SFP/SFP+
Support
# of active SFP/
SFP+ ports
10 GbE
Support?
Accelerated 10
GbE Support?
HA?
TE-1415/1425
Y
1
4
Y
NY
ND-1405
Y
1
3
Y
NN
TR-1405
Y
1
3
Y
NN
PT-1405 SFP only 4 N
N
2
Y
MGMT, LAN1,
HA and LAN2 Ports
(disabled with optional
port configurations)
1GbE or 10GbE interfaces:
MGMT-LAN1-HA-LAN2
in order from left to right
(HA inactive for TR-1400/
ND-1400 models)
