Installing the Infoblox SoT 1405 Series Appliance
22 Infoblox Installation Guide

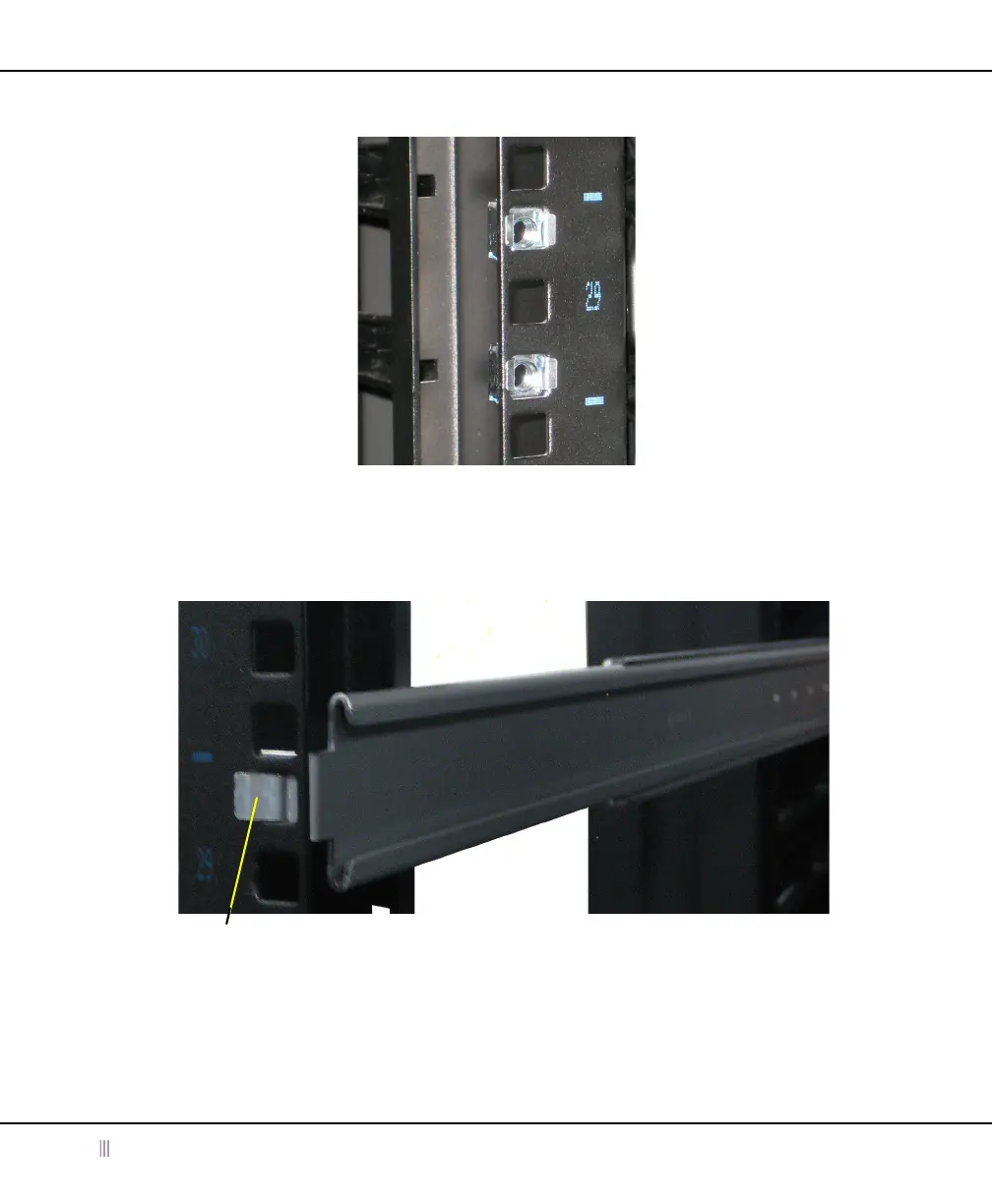

Figure 10 Install cage nuts on the rear posts of the designated rack space
2. Fasten the catch tab of the rack rail on the front of the rack space designated for the appliance. Each rack rail
(2) in the adjustable rail kit provides a metal catch tab on the front end of the rack rail. This catch tab fastens
to a square mounting hole as shown in Figure 11.
Figure 11 Catch tab fastens on front posts of designated space
3. Extend the rack rail assembly backwards, align the mounting holes on the chassis slide rails with the required
cage nuts, and fasten the back end of the rack rail to the two cage nuts on the rear post of the designated space.
As noted, the rack rail assembly has an extension range from the minimum of 600mm to a maximum of 900mm.
4. Perform Steps 2 and 3 for the second rack rail assembly.
5. Attach the chassis slide rails to each side of the chassis with three (3) flathead 8-32 screws, as shown in
Figure 12.
Catch Tab (rack rail front end only)
