IN3118HD User’s Manual

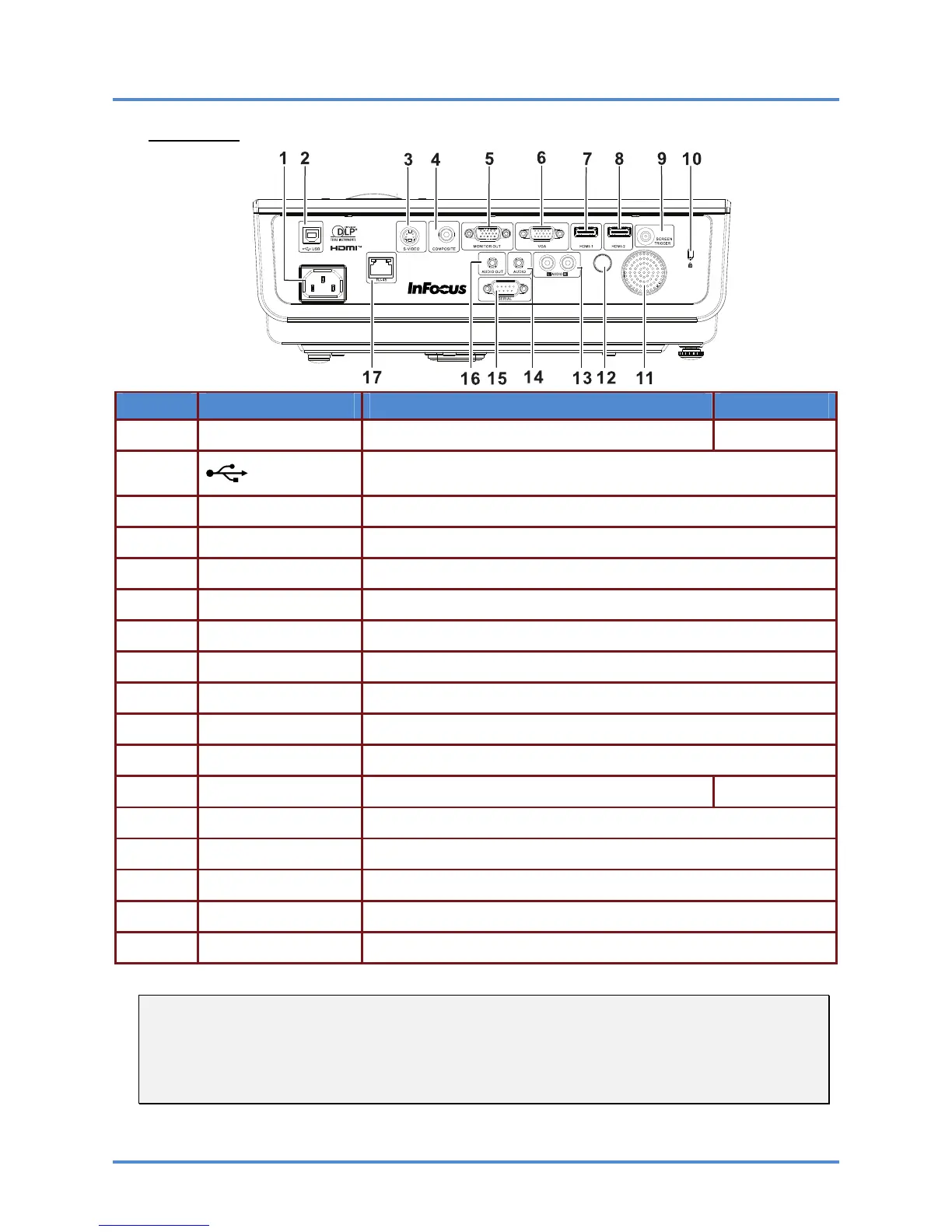

Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
AC IN Connect the POWER CABLE
9
2.
(USB)
Connect the USB CABLE from a computer
(used for presentation slide control with the projector remote)
3.
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
4.
VIDEO IN Connect the COMPOSITE CABLE from a video device
5.
VGA OUT Connect the RGB CABLE to an external monitor
6.
VGA IN Connect the RGB CABLE from a computer
7.
HDMI – 1 Connect the HDMI CABLE from an HDMI device
8.
HDMI – 2 Connect the HDMI CABLE from an HDMI device
9.
DC 12V TRIGGER Connect a 12V screen trigger (200ma max)
10.
Security Lock Secure to permanent object with a security lock system
11.
Speaker Outputs the projector audio
12.
IR receiver Receives the remote control IR signal
6
13.
AUDIO IN (L and R) Connect the AUDIO CABLES from an input device
14.
AUDIO IN Connect an AUDIO CABLE from an input device
15.
RS-232C Connect RS-232 serial port cable for command control
16.
AUDIO OUT Connect an AUDIO CABLE to external speaker system
17.
RJ – 45 Connect a LAN CABLE for networking purposes
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI, component, S-Video, Composite for better picture quality.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
– 4 –
