IN3118HD User’s Manual
Views of Projector Parts

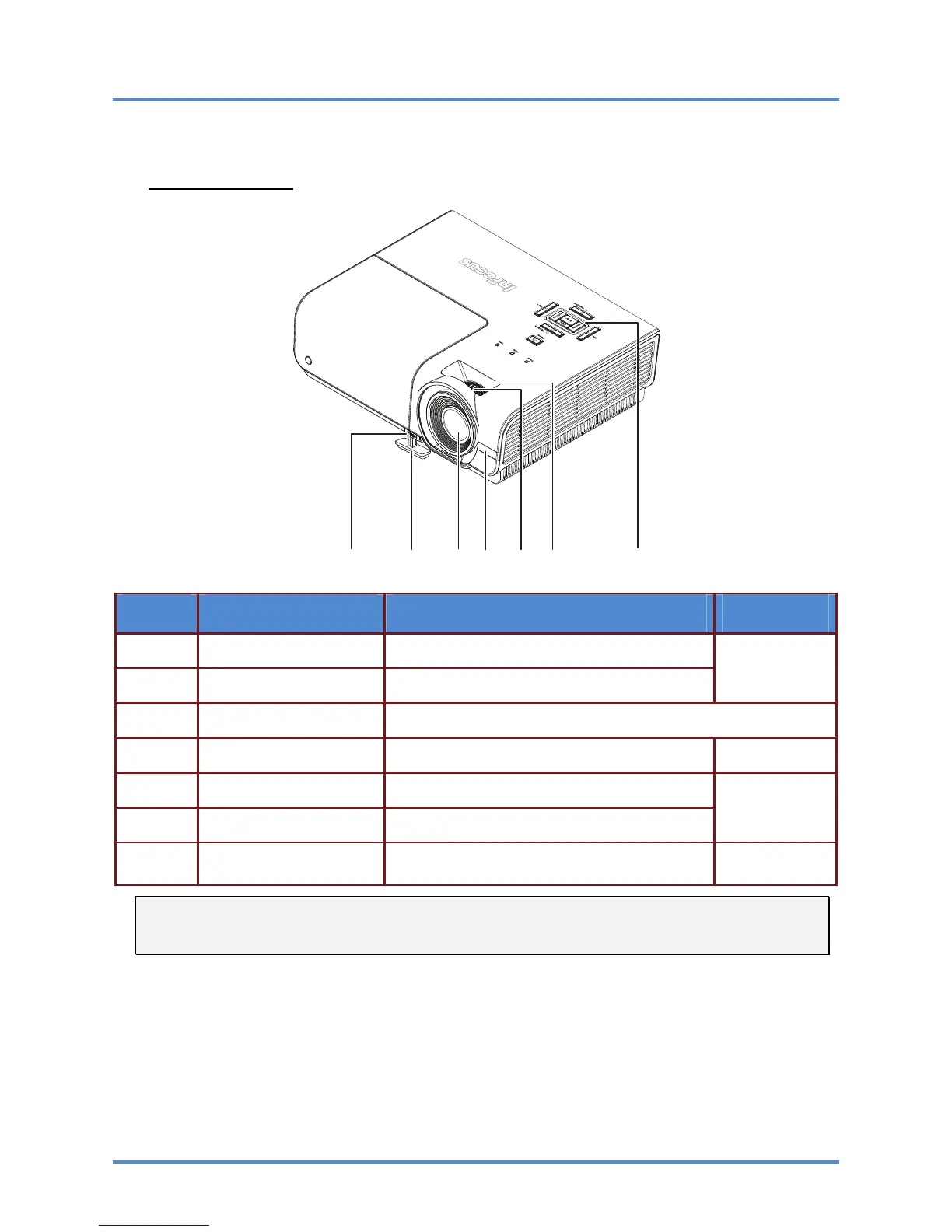

Front-right View
1
34 5 6 72
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Elevator button Push to release elevator foot
2.
Elevator foot Adjusts level of projector
10
3.
Lens Projection Lens
4.
IR receiver Receives the remote control IR signal
6
5.
Focus ring Focuses the projected image
6.
Zoom ring Enlarges the projected image
11
7.
Function keys
See Top view—On-screen Display (OSD) but-
tons and LEDs.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
– 2 –
