48
1

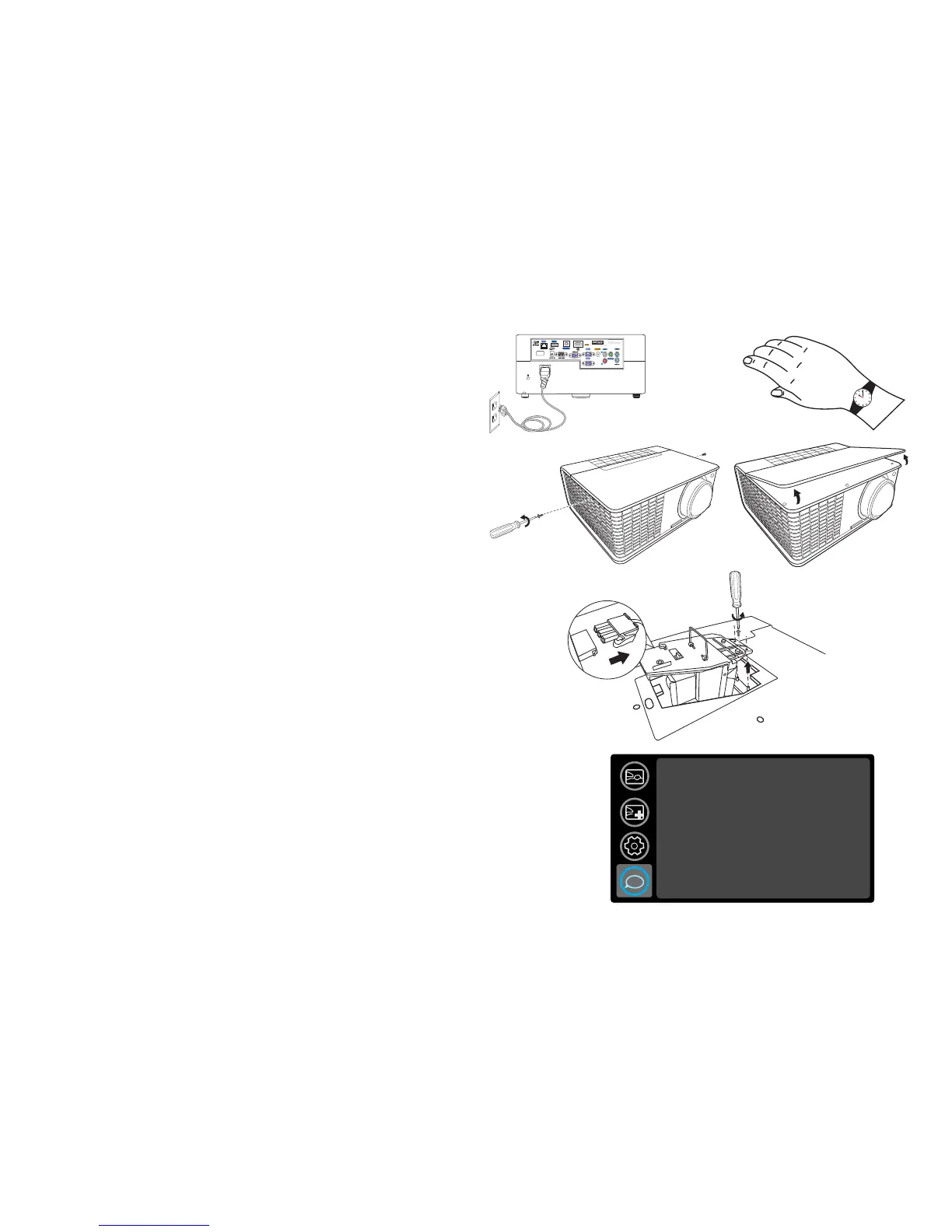

Turn off the projector and unplug the power cord.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Remove the lamp door, located on top of the projector, by (a) removing the two
screws on either side of the lamp door, (b) sliding the lamp door towards the
front of the projector, and (c) tilting and lifting the door off.
4 Disconnect the lamp connector.
5 Loosen the captive screw that attaches the lamp housing to the projector.
NOTE: If the projector is installed on a ceiling
mount, be careful not to drop the
lamp module once the captive screw is loosened.
6 Carefully lift the lamp straight up, off of the alignment pins; being careful not to
pinch the lamp connector. Dispose of the lamp in an environmentally proper
manner.
7 Install the new lamp module, aligning the pins properly. Be careful not to pinch
the lamp connector.
8 Tighten the screw. (NOTE: If the pins have not been aligned properly, the
screw will not tighten securely.)
9 Re-attach the lamp connector to the projector.
10 Replace the lamp door by (a) aligning the hinges, (b) putting the lamp door
down and (c) sliding it back into place.
11 Replace the lamp door screws and tighten securely.
12 Plug in the power cord and press the Power button to turn the projector back on.
13 To reset the lamp hour timer, navigate to the Status and Service menu and
select Reset Lamp Hours. See page 36 for details.
