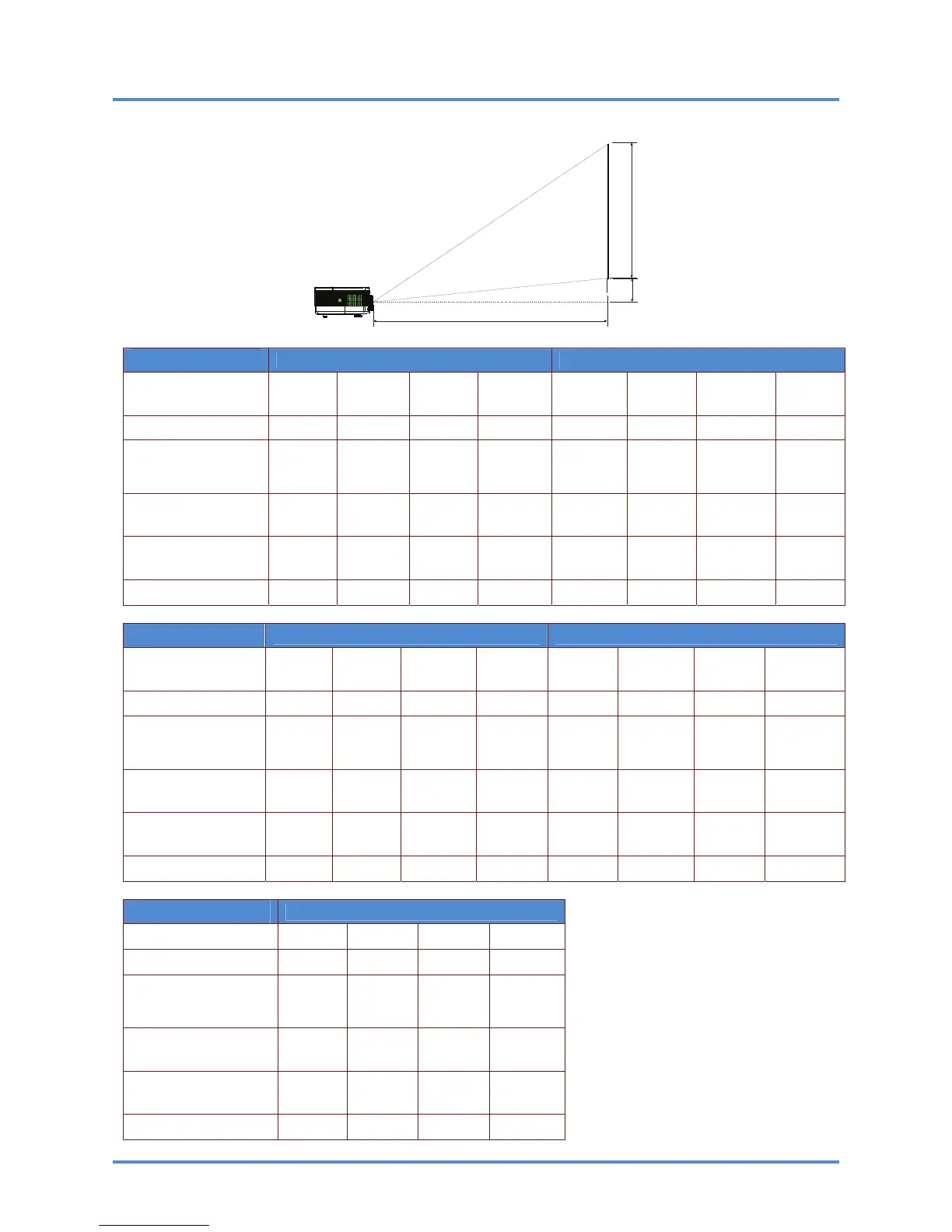

IN5312/IN5314 – User’s Manual
For WXGA
Projection Distance
A
Image Height
Standard projection lens: TR: 1.6~2.03; offset=105%
IN5314
TELE WIDE
Distance (m/inch)
1.75/
69
3.50/
138
4.37/
172
8.74/
344
1.74/
68
3.49/
137
6.98/
275
10.47/
412
Diagonal (inch/ ft) 40/3.3 80/6.7 100/8.3 200/16.7 50/4.2 100/8.3 200/16.7 300/25
Keystone
Correction angle
(degree)
9.61 9.61 9.61 9.61 11.98 11.98 11.98 11.98
Image Height
(mm/inch)
538.5/
21
1077.0/
42
1346.2/
53
2692.4/
160
673.1/
27
1346.2/
53
2692.4/
106
4038.6/
159
Image Width
(mm/inch)
861.6/
34
1723.1/
68
2153.9/
85
4307.8/
170
1077.0/
42
2153.9/
85
4307.8/
170
6461.7/
254
A (mm/inch)
26.9/1 53.8/2 67.3/3 134.6/5 33.7/1.3 67.3/3 134.6/5 201.9/8
Long throw projection lens: TR: 2.03~3.05; offset=105%
IN5314
TELE WIDE
Distance (m/inch)
2.63/
104
6.57/
259
13.14/
517
19.71/
776
2.19/
86
6.56/
258
13.12/
517
19.68/
775
Diagonal (inch/ ft) 40/3.3 100/8.3 200/16.7
300/25
50/4.2 150/12.5 300/25
450/37.5
Keystone
Correction angle
(degree)
6.43 6.43 6.43 6.43 9.61 9.61 9.61 9.61
Image Height
(mm/inch)
538.5/
21
1346.2/
53
2692.4/
160
4038.6/
159
673.1/
27
2019.3/
80
4038.6/
159
6057.9/
239
Image Width
(mm/inch)
861.6/
34
2153.9/
85
4307.8/
170
6461.7/
254
1077.0/
42
3230.9/
127
6461.7/
254
9692.6/
382
A (mm/inch)
26.9/1 67.3/3 134.6/5 201.9/8 33.7/1.3 101.0/4 201.9/8 302.9/12
Short throw projection lens: TR: 0.81; offset=105%
IN5314
FIX
Distance (m/inch)
0.70/28 1.40/55 1.74/69 2.62/103
Diagonal (inch/ ft)
40/3.3
80/6.7 100/8.3
150/12.5
Keystone
Correction angle
(degree)
23 23 23 23
Image Height
(mm/inch)
538.5/
21
1077.0/
42
1346.2/
53
2019.3/
80
Image Width
(mm/inch)
861.6/
34
1723.1/
68
2153.9/
85
3230.9/
127
A (mm/inch)
26.9/1 53.8/2 67.3/3 101.0/4
53
