User’s Manual
Views of Projector Parts

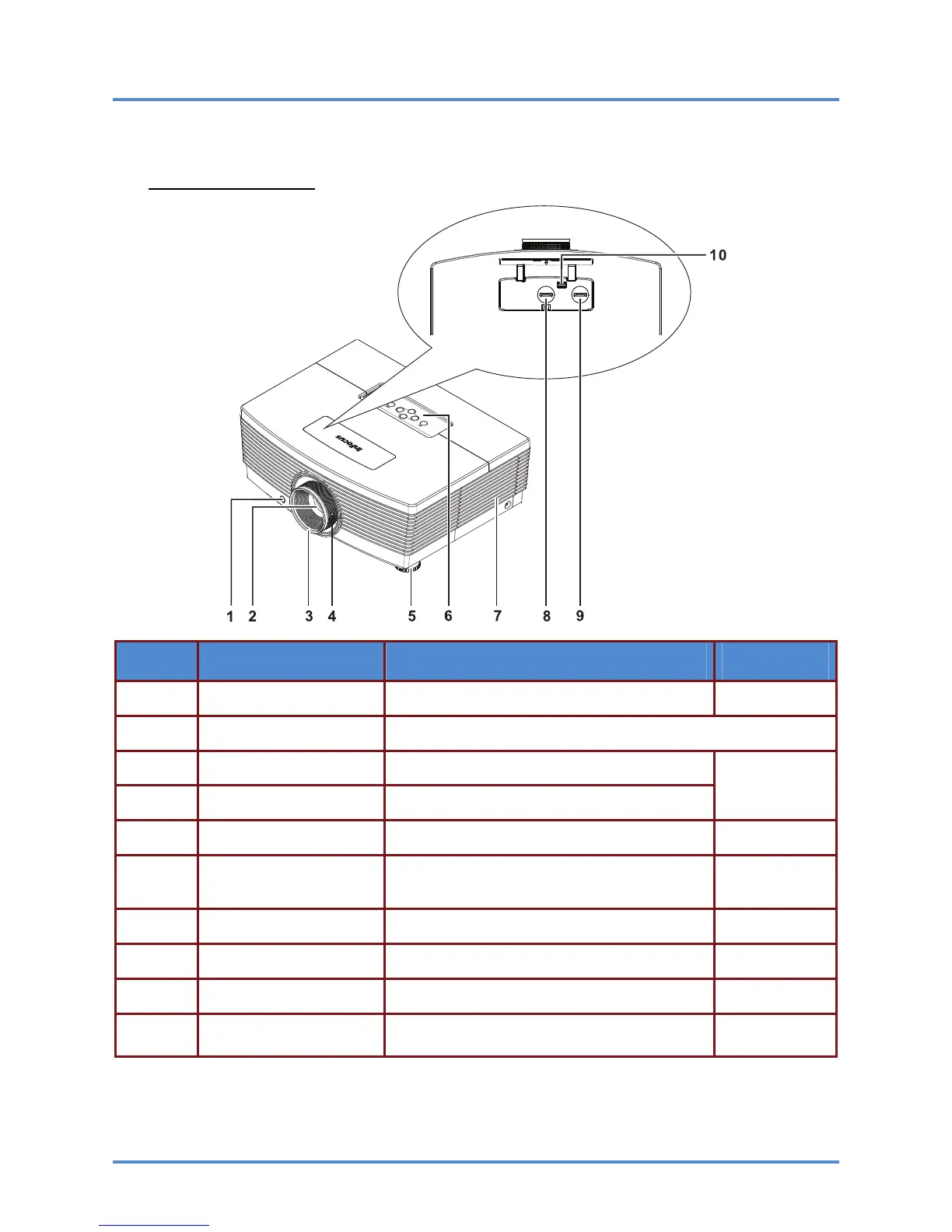

Front-angled View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR receiver Receives the IR signals from the remote control
7
2.
Lens Projection Lens
3.
Focus ring Focuses the projected image
4.
Zoom ring Enlarges the projected image
19
5.
Elevator foot Adjusts level of projector
16
6.
Function keys
See Top view—On-screen Display (OSD) but-
tons.
3
7.
Lamp cover Remove cover to replace lamp
42
8.
Vertical lens shift Adjusts the image position vertically
17
9.
Horizontal lens shift Adjusts the image position horizontally
18
10.
Lens release button
Press the release button before attempting to
replace the lens
10
– 2 –
