System Setup Screen
The System Setup Screen and setting options are shown below. System Settings can only be accessed
when the UPS is operated functioning in specific modes. Please refer to the table below for the details. If an
option is not available under a specific mode, a warning screen will appear such as below.

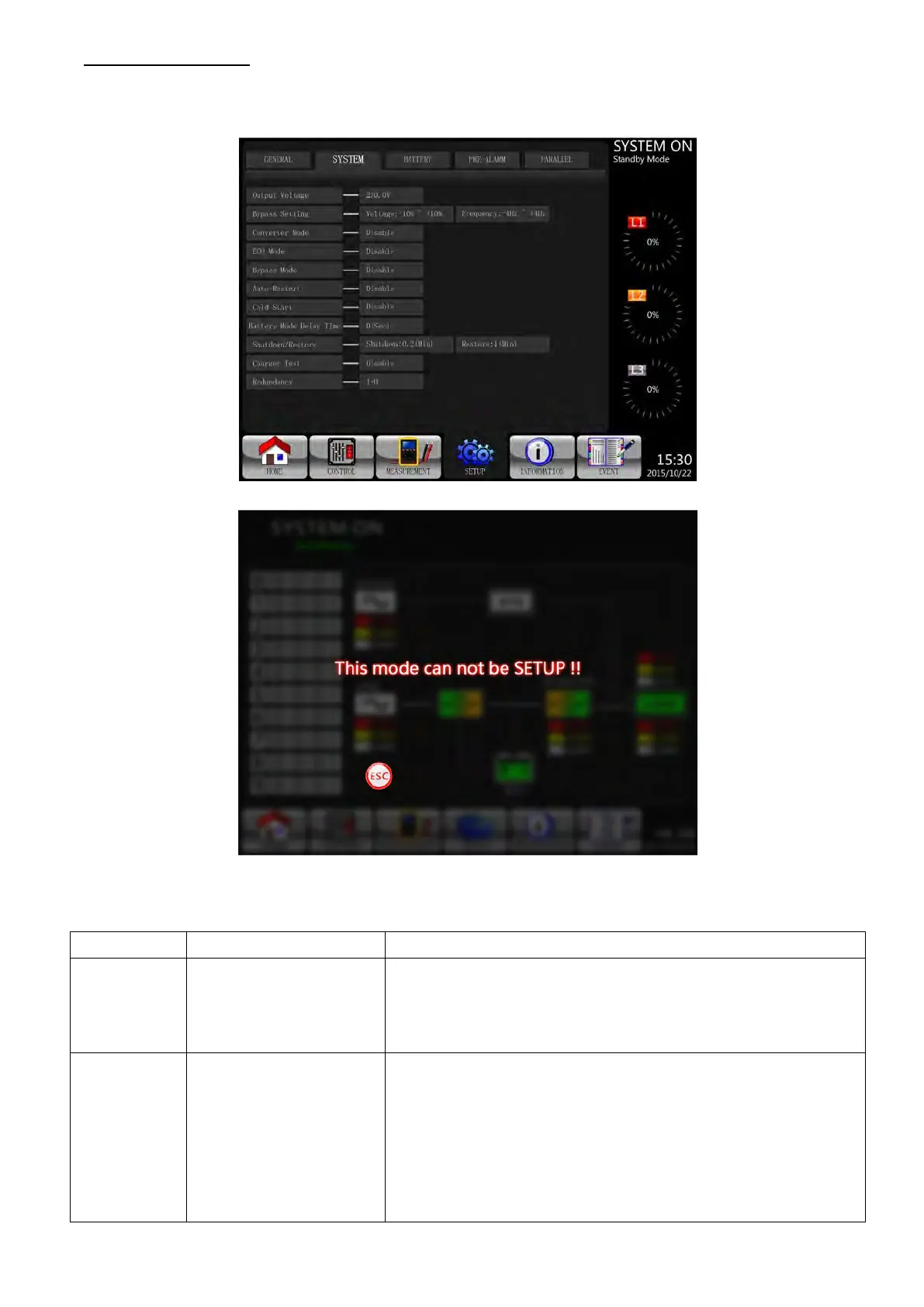

Setup-System Screen
Warning Screen
Setup-System Setting List
Setting Item
Sub Item
Explanation
Output
Voltage
--
Set output voltage
 220Vac
 230Vac (Default)
 240Vac
MUST be reviewed after UPS installation
BYPASS
SETTING
Bypass Voltage Range
Set bypass voltage range:
Upper limit
 +10%
 +15% (Default)
 +20%
Lower limit
 -10%
 -20% (Default)
 -30%
