Battery Setup Screen
The Setup-Battery Screen and Setting options are shown below. Battery Settings can only be set when the
UPS is operated in STANDBY mode.

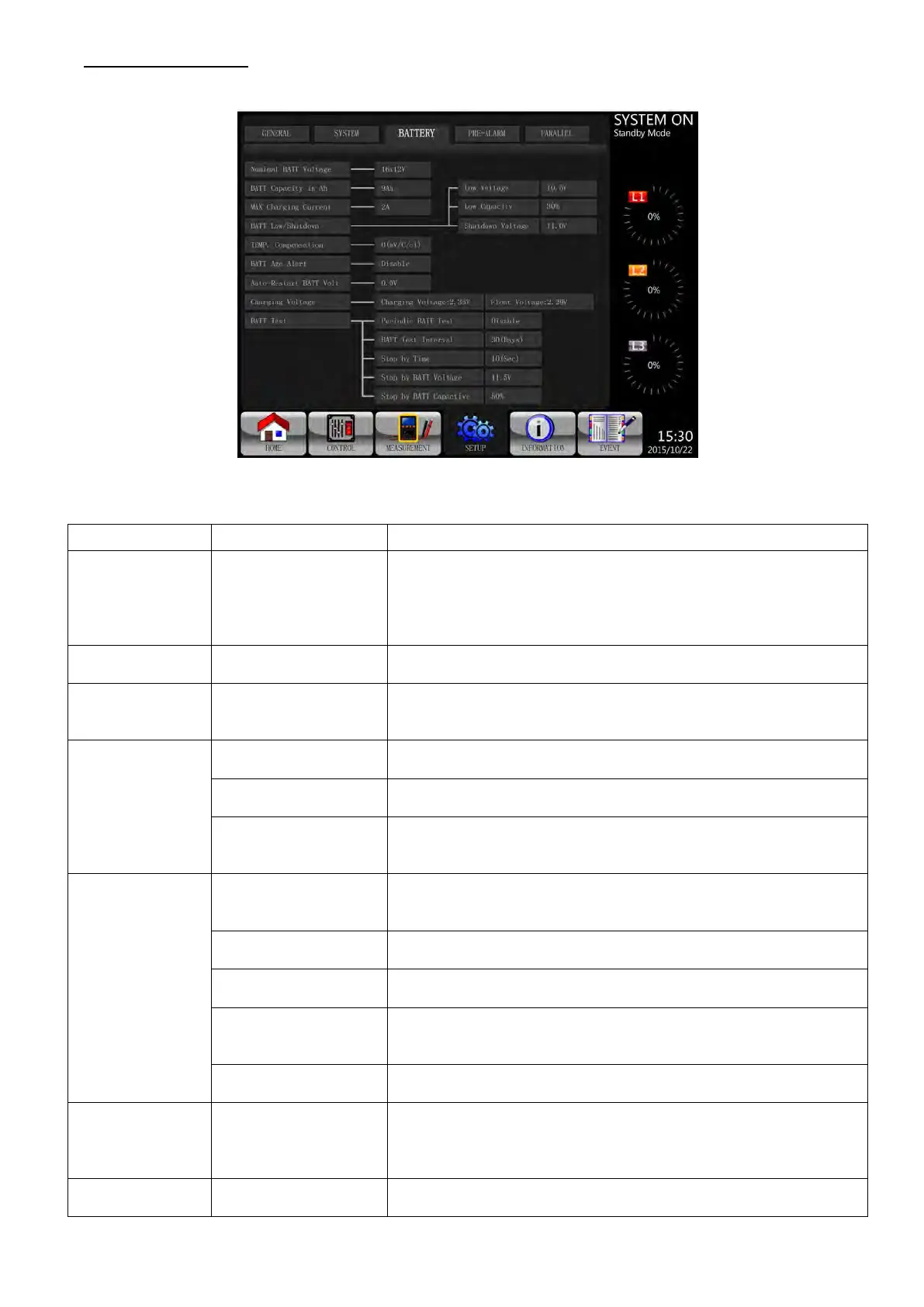

Battery Setup Screen
Battery Setup Setting List
Setting Item
Sub Item
Explanation
Nominal Battery
Voltage
--
Set battery nominal voltage
 16x12V
 18x12V
 20x12V (Default)
MUST be set after UPS installation
Battery Capacity
in Ah
--
Set battery capacity. (up to 999)
 100Ah (Default)
Maximum
Charging Current
--
Set battery maximum charging current (1~24A 100KVA/1~32A
120KVA/1~40A 160KVA/1~48A 200KVA)
 10A (Default)
Battery Low/
Shutdown
Setting
Low Voltage
Set battery low voltage (10.5~11.5V)x(battery Number)
 11V x Battery Number (Default)
Low Capacity
Set battery low capacity (20~50%)
 20% (Default)
Shutdown Voltage
Set battery voltage point for system shutdown in battery mode
(10.0~11V) x (battery Number)
 10V x Battery Number (Default)
Battery Test
Periodic Battery Test
Set periodic battery test disable or enable
 Disable (Default)
 Enable
Battery Test Interval
Set battery test interval (7~99 Days)
 30 Days (Default)
Stop by Time
Set testing time for battery test (10~1000sec)
 10 sec (Default)
Stop by Battery
Voltage
Set stop battery voltage in battery test (11~12V) x (battery
Number)
 11V x Battery Number (Default)
Stop by Battery
Capacity
Set battery capacity to stop battery-testing. (20~50%)
 20% (Default)
Battery Age Alert
Battery Age Alert
(Months)
Set battery age for replacement. (Disable,12~60Months)
 Disable (Default)
If this feature is enabled and the battery has been installed over
this period, there is a warning “Battery Age Alert” to indicate it.
Temperature
Compensation
--
Set battery temperature compensation. (0~-5 (mV/C/cl))
 0(mV/C/cl) (Default)
