Reader type
− Manual
Tracks read
− Track: ISO2 - ISO1 – ISO3
Card formats accepted
− ISO 7810, 7811-1, 2, 3, 4 & ISO 7813
Card swipe speed
− 10 cm/s to 100 cm/s
Reading error rate
− < 0.5%
Card slot
− On the upper side of the ICT220
Head lifespan
− 300,000 swipes

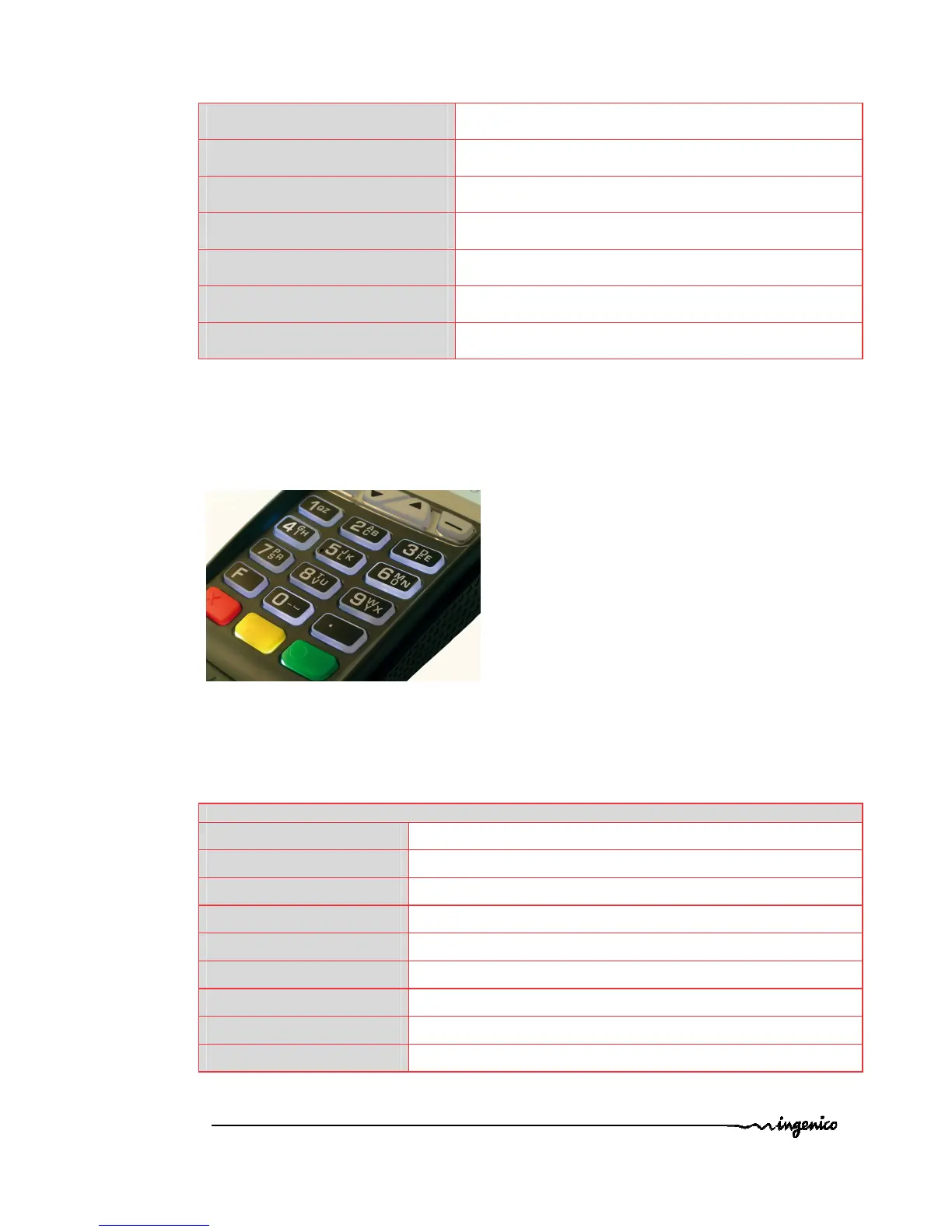

1.2.7. Keypad – Navigation pad
• Navigation pad
− 4 navigation keys for dropdown menus;
− backlit.
• keypad
− Numeric keys;
− Keys with alphanumeric marking;
− Key 5 and function keys with Braille bumps for visually handicapped;
− White backlit.
Keypad
Number of keys − 19
Type
− Elastomer membrane
Area
− About 47 cm
2
Number of operations
− 1 million
Pressing force
− about 250 g
Key size
− approx. 16,5 x 8,5 mm (width x height)
Key pitch
− approx. 20,5 x 13,5 mm (horizontal x vertical)
backlit
− By white LED
Tactile effect
− by metallic dome
