Technical Manual ICT220 • 18/36

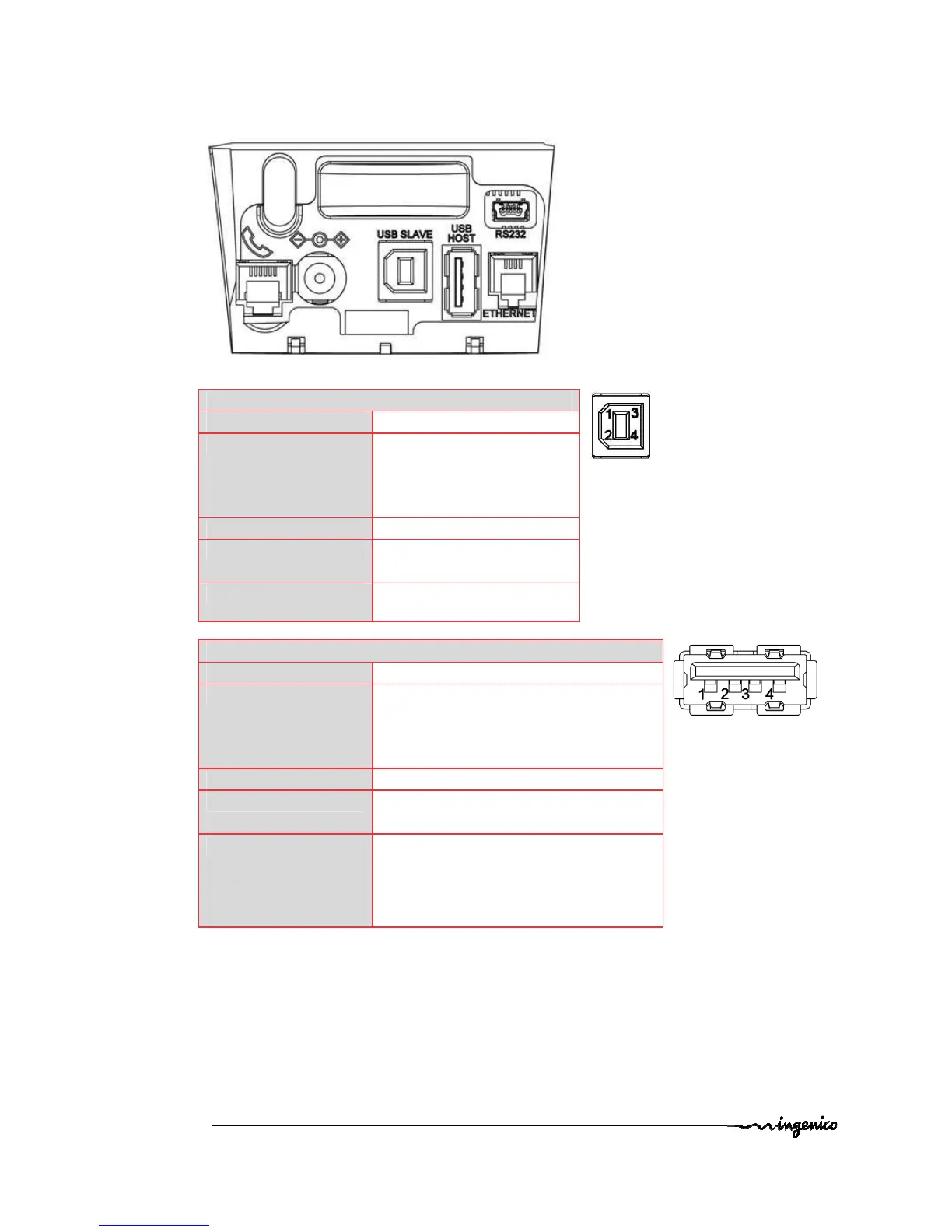

RS232 & Ethernet version

• Phone line Port

• USB slave (USB B - function)

• USB master (USB A - host)

Conform to USB2.0 (full speed)

• Ethernet (for network)

• Simplified RS232

USB Slave

Electronic interface USB slave

Number of wires 1= 5V

2= D–

3= D+

4= GND

Mechanical interface USB type B jack

Logical interface 12 Mbps max

Connection examples

− Local downloading tool

− Point of sale integration

(*) 250 mA max available on USB compatible with Pin-Pad P30 and PP30S.

USB conform USB2.0 (full speed)

USB master

Electronic interface USB master

Number of wires 1= 5V regulated 250 mA (*)

2= D–

3= D+

4= GND

Mechanical interface USB type A jack

Logical interface Low speed : 1,5 Mbps

High speed : 12 Mbps

Connection examples

− Check reader equipped with USB

− PP30S, P30

− Fingerprint sensor

− Contactless target, external modem,

…
