Ingrasys iED N Series - Connecting DI;DO;AI to Ied N-002

3.4 Connecting DI/DO/AI to iED N-002

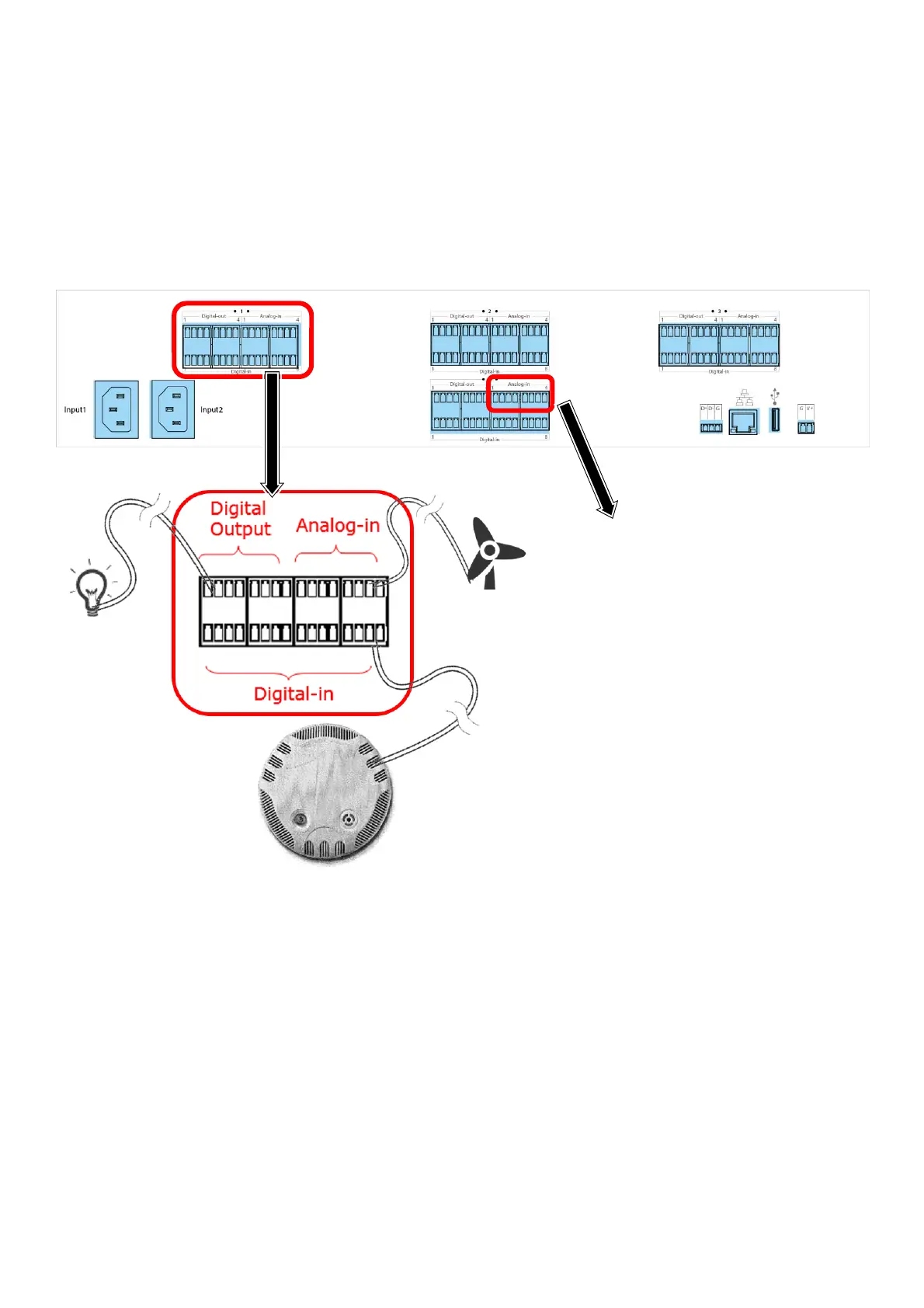

The iED N-002 can be connected to 32 sets of sensor (enclose closure sensor) on Digital Input
and 16 sets of devices on Digital Output and 16 sets of (4~20 mA) sensor on Analog Input that
each sets of DI/DO/AI connected via 2 wires. Analog-in of No.4 I/O module is connect waterleak
sensor.
Waterleak
