Ingrasys iED N Series User Manual

User’s Manual
Configuration Mode
This field shows the present iED N-002 mode. These reading include: Normal or Initial.
PAN ID
This field allows the administrator to set PAN ID (11 to 65535)
RF Channel
This field allows the administrator to set RF Channel (11 to 26)

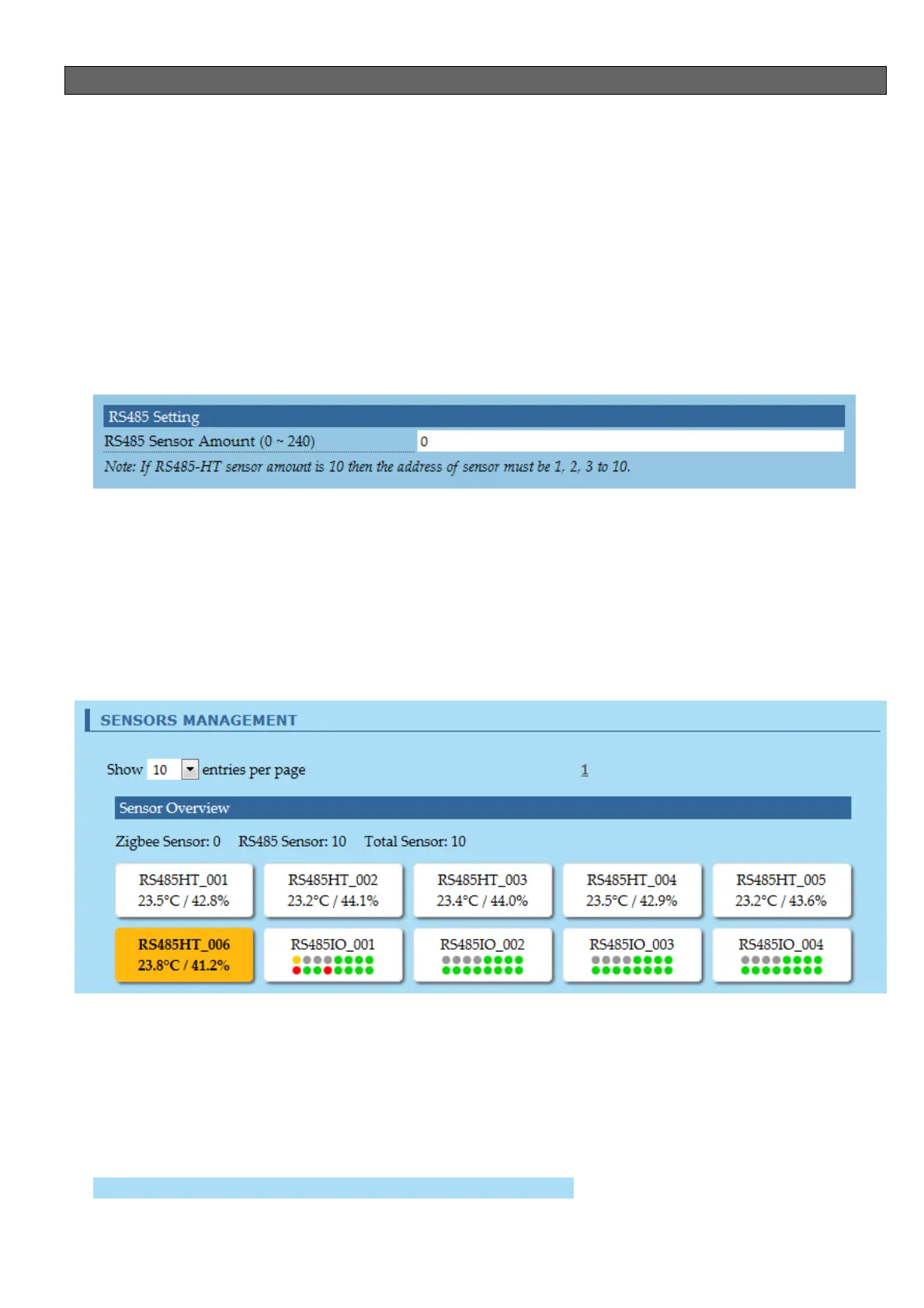

5.8.2 RS485 Setting
RS485 Sensor Amount
This field allows the administrator to set RS485 Sensor Amount (0 to 240). If set 0, iED
N-002 will poll 1 to 240 address even if not so many devices connected. It may waste the
response time.
5.8.3 Sensor Management
This page allows the administrator to set Sensor Management
Show entries per page
This field allows the administrator to set how many entries per page. It has four options
that includes 10, 20, 50 and 100.
5.8.4 Sensor Overview
This field shows the present how many Zigbee sensor & RS485 sensor & Total Sensor.
Zigbee Sensor: 10 RS485 Sensor: 2 Total Sensor: 10
