Sensor Status
This field show the Zigbee/RS485 sensor sequence number and allows the administrator
to enter Sensor’s configuration. The block color of the sensor indicates its status based
on the administrator configurable threshold. The list below indicates the sensor’s status.
White: “normal” status.
Amber: “warning” status
Red: “critical” status
The Zigbee/RS485 HT sensor provides the measurements for peripheral temperature
and humidity.
The warning/critical threshold can be setup via the “Sensor Configuration”.
Note: Clicking on block of sensor will be entered into “Sensor Configuration” page.
I/O Status

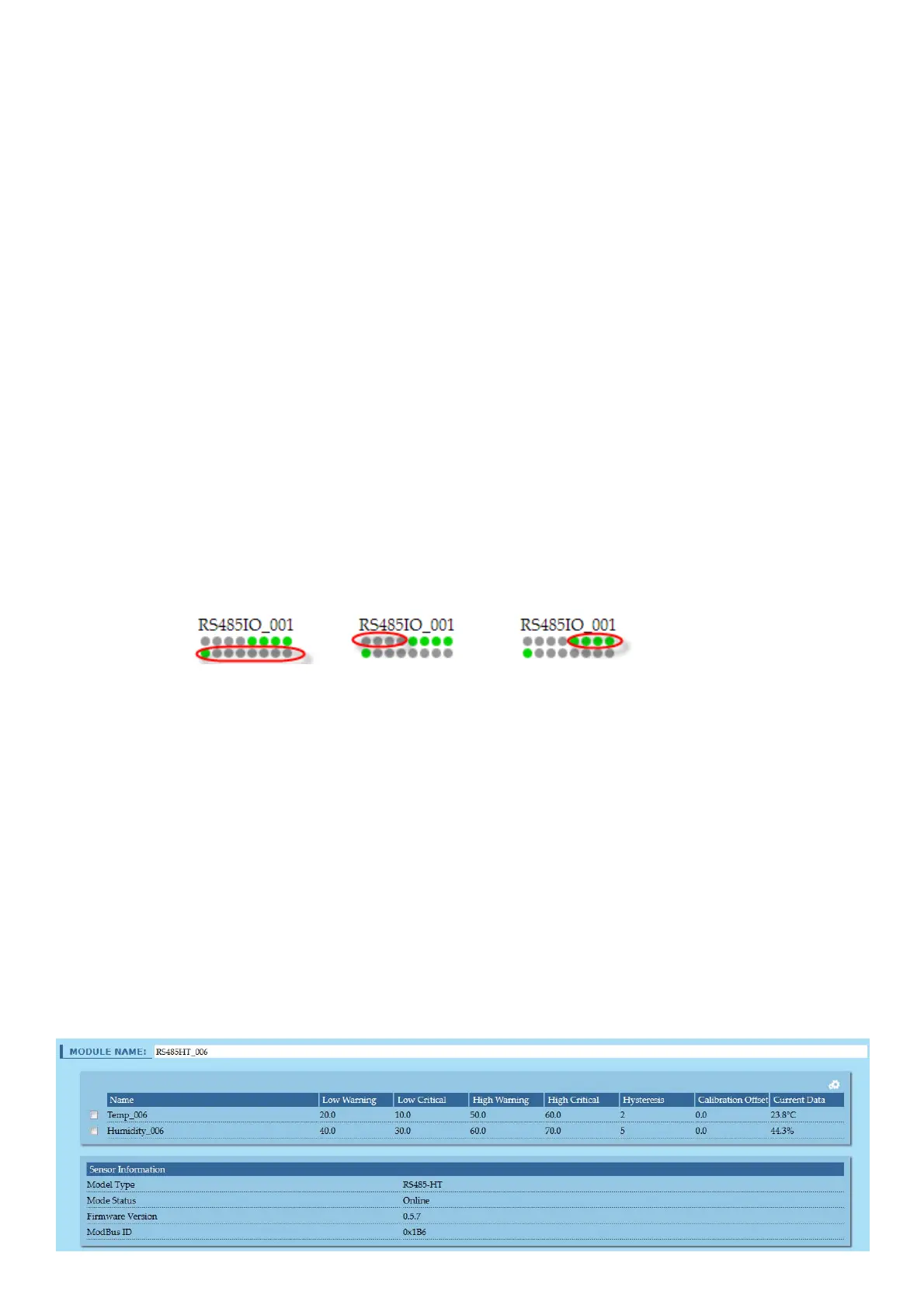

Zigbee RS485 IO display the present Status that including 8 Digital Input and 4 Digital
Output and 4 Analog Input.
Digital Input Digital Output Analog Input
Green: “normal” status.
Red: “alarm” status
Gray: “disabled” status
Yellow: “on” status
Gray: “off” status
5.8.5 Sensor Configuration
This page allows the administrator to configure all necessary parameters of a Zigbee/RS485
HT Sensor.
