Ingrasys iED N Series User Manual

User’s Manual

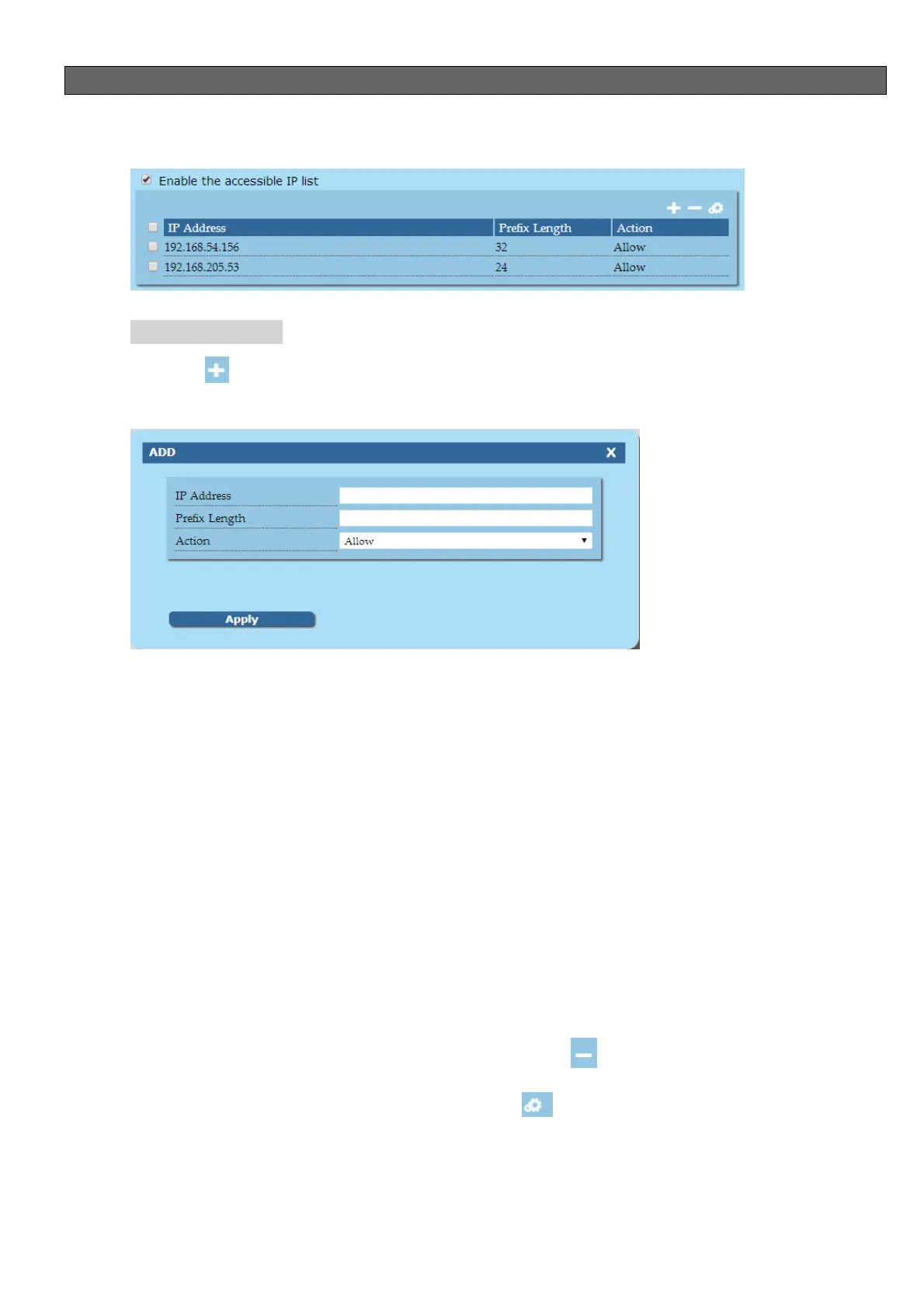

Enable the accessible IP list
This check box is the parameter enabling accessible IP list.
Accessible IP list
Clicking will show ADD dialog, once one or more entries have been selected, it is not
available.
IP Address
This field allows the administrator to set the IPv4/IPv6 address and only accept
“dotted decimal notation” format (i.e., 192.168.60.229) or “hexadecimal” format (i.e.,
2001:1234:100:f101:2e0:d8ff:feff:b522).
Prefix Length
This field allows the administrator to set the Prefix Length and only accept an integer
between 0-32 (IPv4) or 0-128 (IPv6).
Action
Allow, this IP or IP segment could be accessed iED-N002.
Deny, this IP or IP segment could not be accessed iED-N002.
One or more entries have been selected and to click , they will be deleted from list.
One of entries have been selected and to click , the Modify dialog will appear.

Ingrasys iED N Series Specifications

General

Brand	Ingrasys
Model	iED N Series
Category	Controller
Language	English
