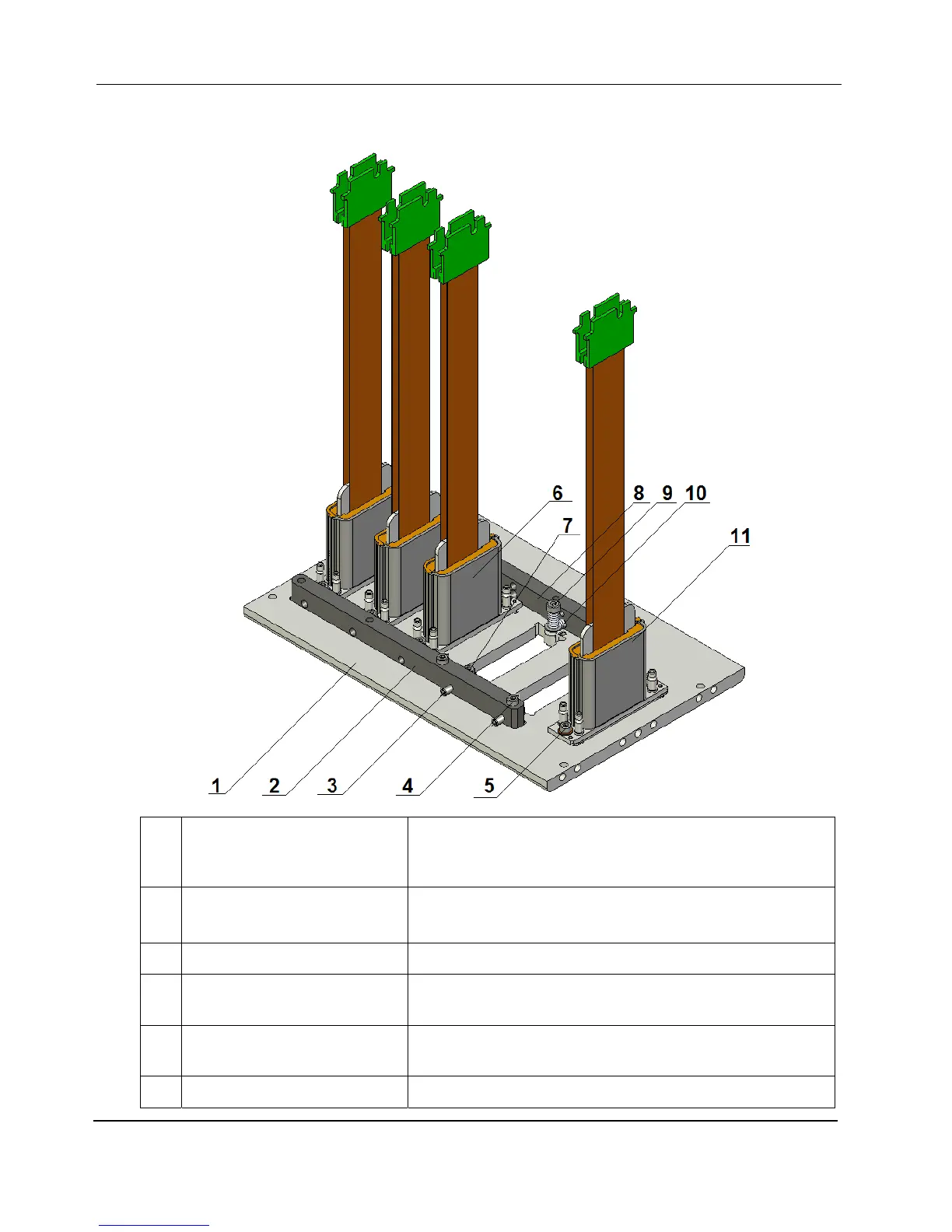

7-4 ILLUSTRATION OF HEAD PLATE ASSEMBLY
1 Head Plate
The head plate can hold 6 Ricoh Gen 4 print heads. It is
precisely designed so that the print heads on it are horizontally
and vertically parallel to the largest extent.
2 Front Adjusting Bar Hold the five Y Adjustment Pins (item 4)
3 Y Adjustment Pin (M4) Adjust the corresponding print head’s position in Y direction.
4
Front Adjusting Bar Fixing
Screw (M4)
Fix the front adjusting bar (item 2)
5
Fixing Hexagon Socket Head
Cap Screw (M3X10)
Two screws used to fix the reference print head (item 11)
6 Adjustable Print Head (total: 5) Gen 4 head that are adjustable
