Innova OBD2 - Scan Tool Controls; CONTROLS AND INDICATORS

Scan Tool Controls
CONTROLS AND INDICATORS
3140d 7
CONTROLS AND INDICATORS

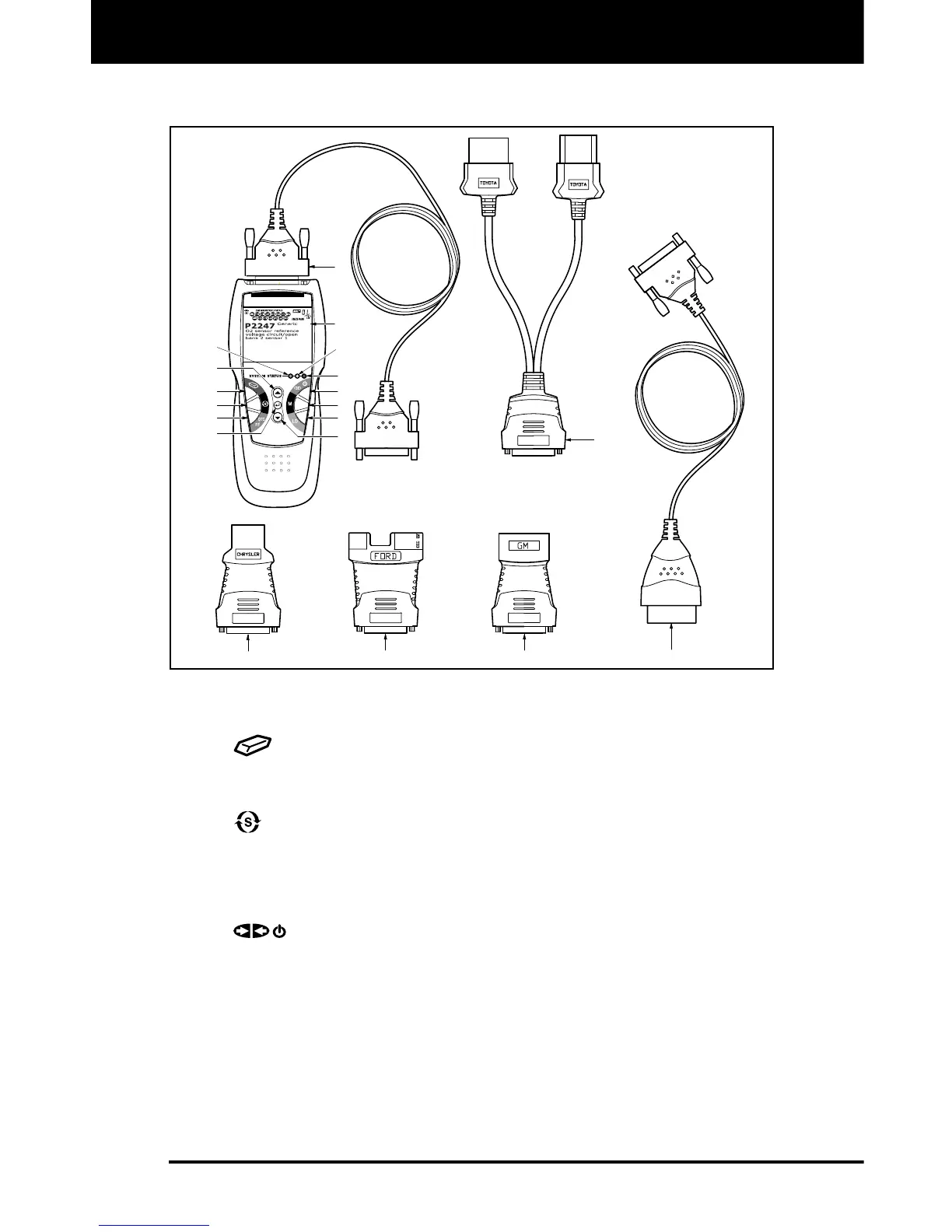

Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 19, below.
1.
ERASE button - Erases Diagnostic Trouble Codes (DTCs),
and “Freeze Frame” data from your vehicle’s computer, and resets
Monitor status.
2.
SYSTEM MENU button – When pressed, displays the System
Menu.
3. DTC/FF button - Displays the DTC View screen and/or scrolls the
LCD display to view DTCs and Freeze Frame data.
4.
POWER/LINK button - When the scan tool IS NOT
connected to a vehicle, turns the scan tool “On” and “Off”. When the
scan tool is connected to a vehicle, links the scan tool to the
vehicle’s PCM to retrieve diagnostic data from the computer’s
memory.
5. M button – When pressed, displays the Main Menu.
6. LD button – When pressed while linked to a vehicle, places scan
tool in "Live Data" mode.
19
14
15
16 17
18
1
3
2
4
12
6
5
7
10
11
13
8
9
