USING THE DTC LIBRARY (OBD2)

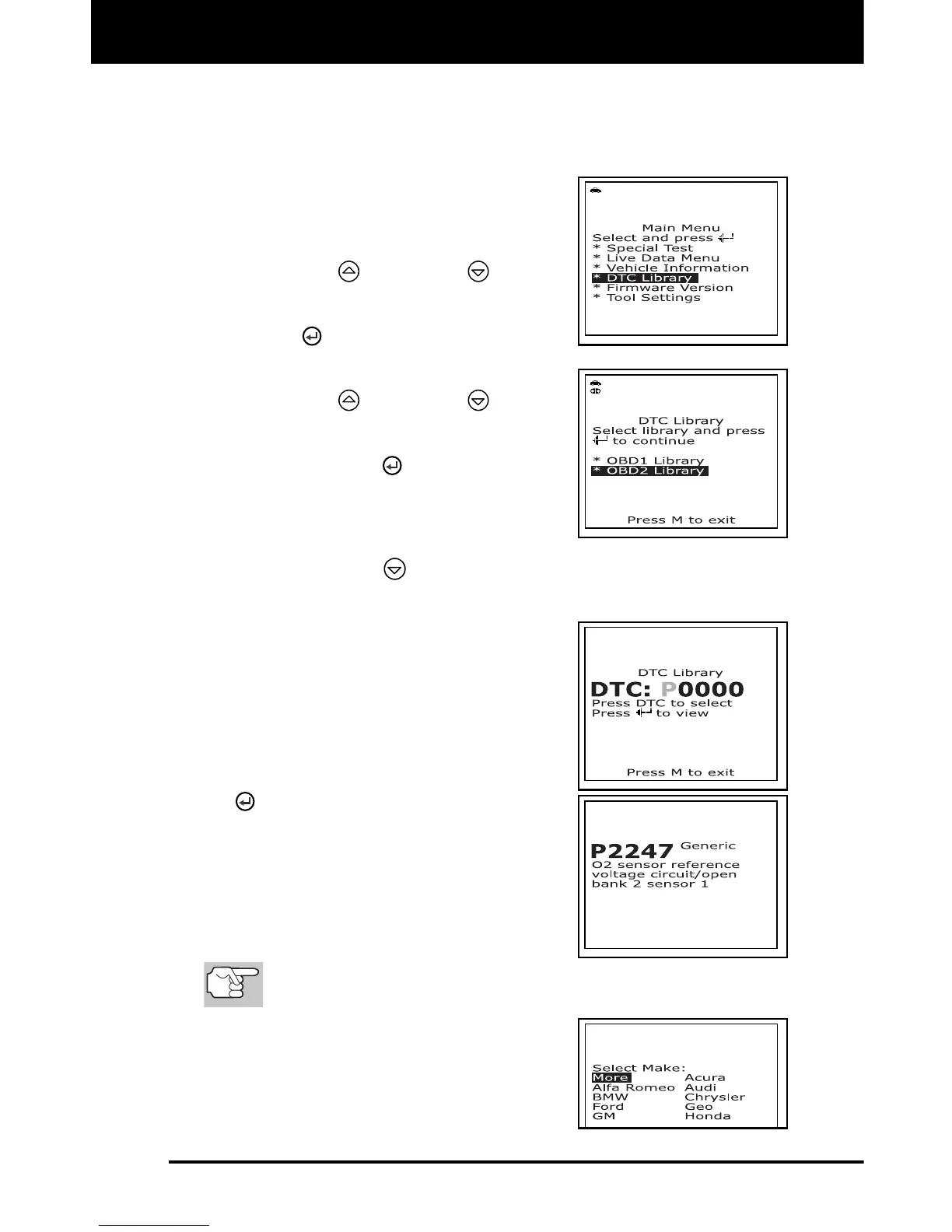

You can use the scan tool to locate the definition for a specified OBD2
DTC.
1. With the scan tool in OBD2 mode, press
and release the M button.
 The Main Menu displays.
2. Use the UP
and DOWN buttons,
as necessary, to highlight DTC Library
in the Main Menu, then press the
ENTER
button.
 The Select Library screen displays.
3. Use the UP
and DOWN buttons,
as necessary, to highlight OBD2
Library in the DTC Library Menu, then
press the ENTER
button.
 The Enter DTC screen displays. The
screen shows the code “P0001”,
with the “P” highlighted.
4. Use the DOWN
button to scroll to the desired DTC type
(P=Powertrain, U=Network, B=Body, C=Chassis), then press the
DTC/FF button.
 The selected character displays “solid”,
and the next character is highlighted.
5. Select the remaining characters in the
DTC in the same way, pressing the
DTC/FF button to confirm each
character. When you have selected all
the DTC characters, press the ENTER
button to view the DTC definition.
 If you entered a “Generic” DTC
(DTCs that start with “P0”, “P2” and
some “P3”):
- The selected DTC and DTC
definition (if available) show on
the scan tool’s display.
If a definition for the DTC you entered is not available, an advisory
message shows on the scan tool’s display.
 If you entered a “Manufacturer-
Specific” DTC (DTCs that start with
“P1” and some “P3”):
- The “Select Manufacturer” screen
displays.
