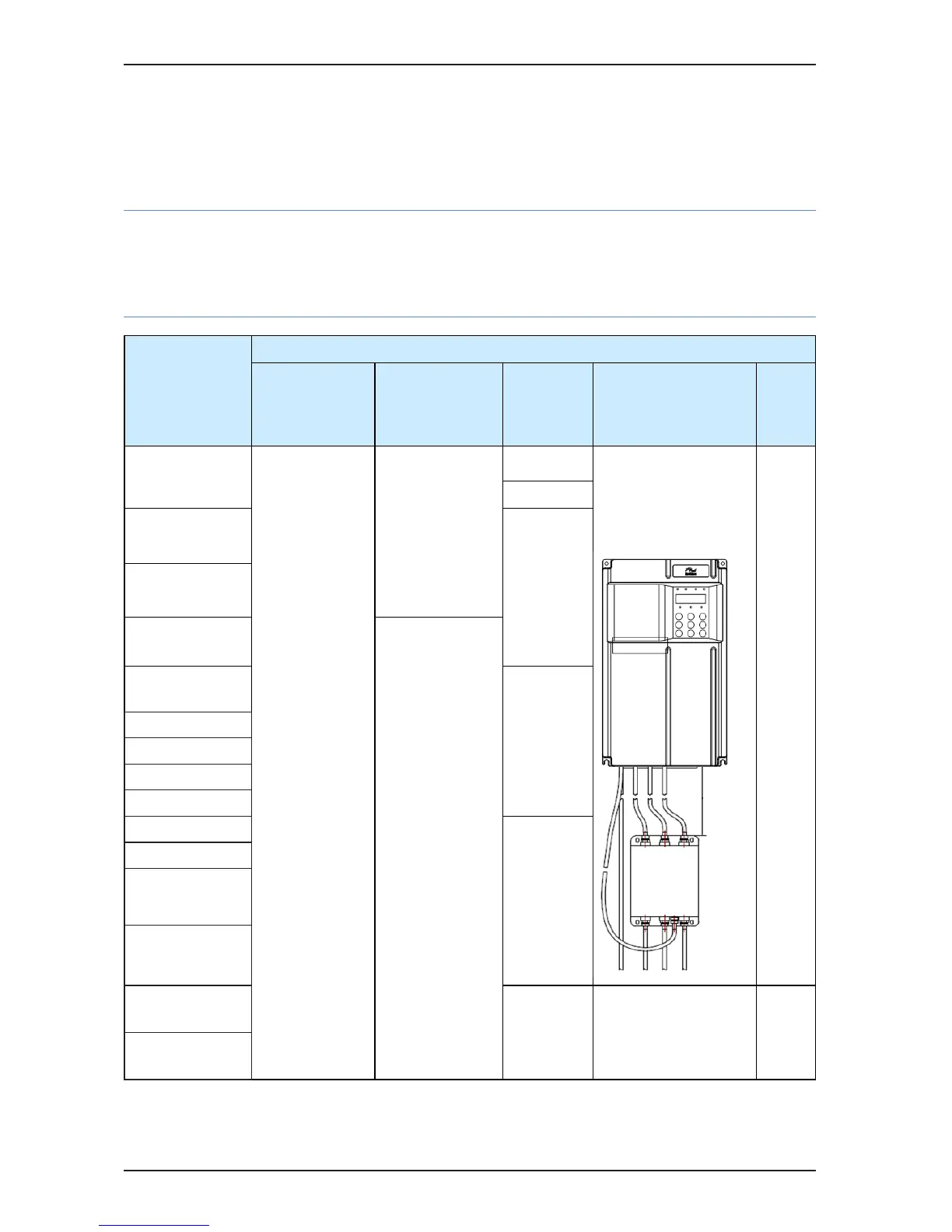

Appendix A Leakage Current Suppression Solution and Leakage
Protector Selection
Note
In the following tables,
•
"-" indicates that the leakage current suppression solution does not cover the power.
•
The residual current circuit breaker (RCCB), RCD and leakage protector indicate the same concept.
Servo Drive Model Solution 1: Require Leakage Current During Running < 30 mA (Use Leakage Current Filter).
Leakage Protector
Selection With
Leakage Current
Suppression Solution
Leakage Protector
Selection Without
Leakage Current
Suppression Solution
Leakage
Current Filter
Installation Wiring Diagram Leakage
Protector
Selection
Reserved CHINT Electric DZ
series,
CHINT Electric
NM1LE series,
Changshu
MCCBCM3L series,
ABB F200 series,
Schneider i1D
leakage protector
Action current
I△n
s
≥ 100 mA
DL-15EB1/10 Note: The leakage current
lter has the direction.
Therefore, connect the
servo drive to the LOAD
side of the lter.
IS580
PE
R
S T
LOAD
LINE
Leakage
current
filter
Cable
length
< 300 mm
Action
current
I△n
s
≥
100 mA
DL-35EB1/10
IS580T035-R1-1 DL65EB1/10
IS580T040-R1-1
IS580T050-R1-1
Action current
I△n
s
≥ 300 mA
IS580T070-R1-1 DL-120EB1/10
IS580T080-R1-1
IS580T080-R1-H-1
IS580T100-R1-1
IS580T100-R1-H-1
IS580T140-R1-1
DL-180EB1/10
IS580T140-R1-H-1
IS580T170-R1-1
IS580T170-R1-H-1
IS580T210-R1-1
- - Action
current
I△n
s
≥
300 mA
IS580T210-R1-H-1

Inovance IS580 Series Specifications

General

Series	IS580 Series
Communication Interface	RS485, CAN, Ethernet
Type	Servo Drive
Control Mode	Torque, Speed, Position
Communication Protocol	CANopen, EtherCAT, Modbus
Cooling Method	Forced air cooling
Encoder Feedback	Incremental encoder, Absolute encoder
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
