Inovance IS580 Series User Manual

Chapter 7 Selection IS580 User Manual
- 82 -
Servo drive Model Servo drive
Rated Input
Current
MCCB
(A)
Contactor
(A)
Cable of Input
Side Main
Circuit (mm
2
)
Cable of Output
Side Main
Circuit (mm
2
)
Cable of
Control
Circuit (mm
2
)
Main Circuit
Grounding
Cable (mm
2
)
IS580T100-R1-1 106.00 160 115 35 35 0.75 16
IS580T100-R1-H-1
IS580T140-R1-1 139.00 250 150 50 50 0.75 25
IS580T140-R1-H-1
IS580T170-R1-1 164.00 250 170 70 70 0.75 35
IS580T170-R1-H-1
IS580T210-R1-1 196.00 400 205 95 95 0.75 50
IS580T210-R1-H-1
7.4 Mounting Dimensions of the IS580

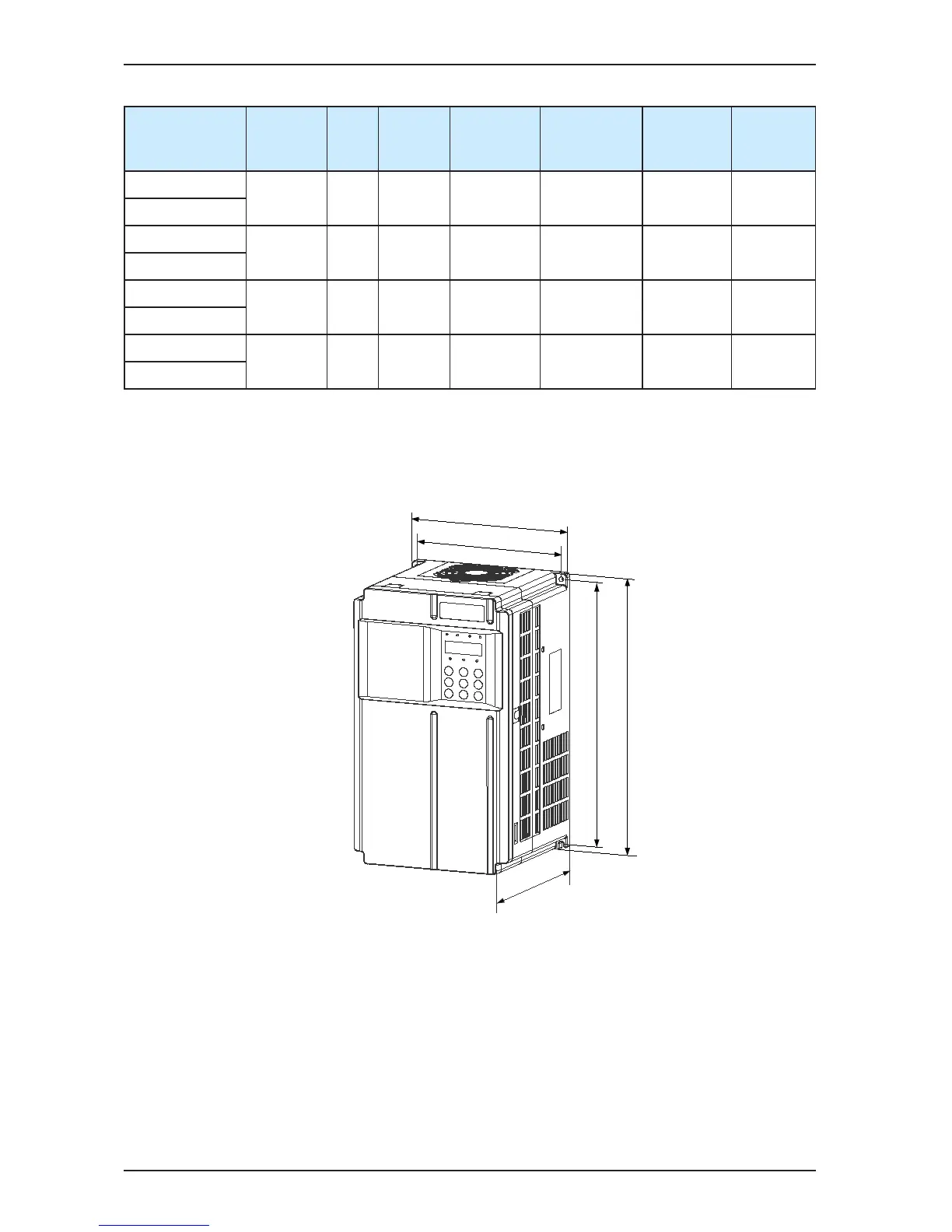

Figure 7-1 Mounting dimensions of the IS580 of plastic housing
W
A
B
H
D

Inovance IS580 Series Specifications

General

Series	IS580 Series
Communication Interface	RS485, CAN, Ethernet
Type	Servo Drive
Control Mode	Torque, Speed, Position
Communication Protocol	CANopen, EtherCAT, Modbus
Cooling Method	Forced air cooling
Encoder Feedback	Incremental encoder, Absolute encoder
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit
