Inovance Monarch NICE-L-C-4037F User Manual

9 Description of Functions and Schemes
-
313
-
Disability function enabled by HCB-B
CN1
JP3
JP4
JP5
JP6
JP2
JP1
C6
C5
C4 C3 C2 C1
A1
A2
AM
B1 B2
BM
MCTC-HCB-B
1 2 3 4
JP5 disability
up call
1 2 3 4
JP6 disability
down call

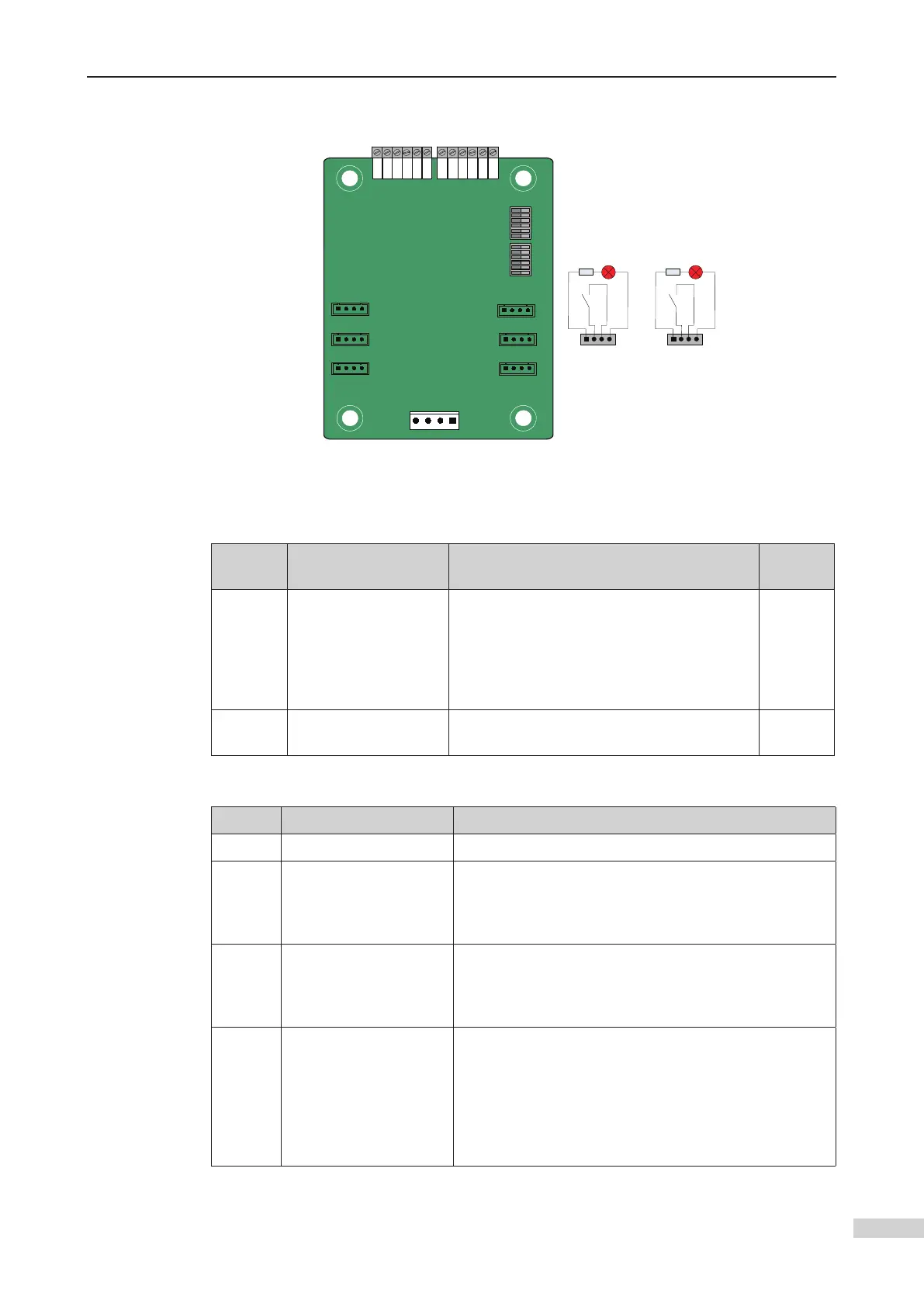

󶙽Wiring diagram of disability function enabled by HCB-B
3 Parameters
Function
Code
Name Setting Range Default
F6-40
Program control
selection 1
Bit0: Disability function
Bit12: Car call assisted command in single
door used as disability function
Bit13: Folding command used as disability
function and back door function
Bit14: Car call command folding
0
Fb-15
Special door open
holding time
10 to 1000 30
󶍾
Bit Function Description
Bit0 Disability function It is used to enable or disable the disability function.
Bit12
Car call assisted
command in single
door used as disability
function
You can set the auxiliary command terminal (CN8) on the
CTB for input of the disability calls (folding command
not required).
Bit13
Folding command used
as disability function
and back door function
It is used to set the the use of folding command. It is
valid only when the function of Bit14 is enabled.
1: Disability
0: Back door
Bit14
Car call command
folding
Car call command folding:
A. Function disabled: CN7 is used for front door calls or
ordinary calls, and CN8 is used for back door calls or
disability calls.
B. Function enabled: For CN7 and CN8, inputs 1 to 16 are
used for front door calls or ordinary calls, and inputs 17
to 32 are used for back door calls or disability calls.
FB-15 is used to set the door open holding time when there is a disability call
